Section 5: Assembly Procedures

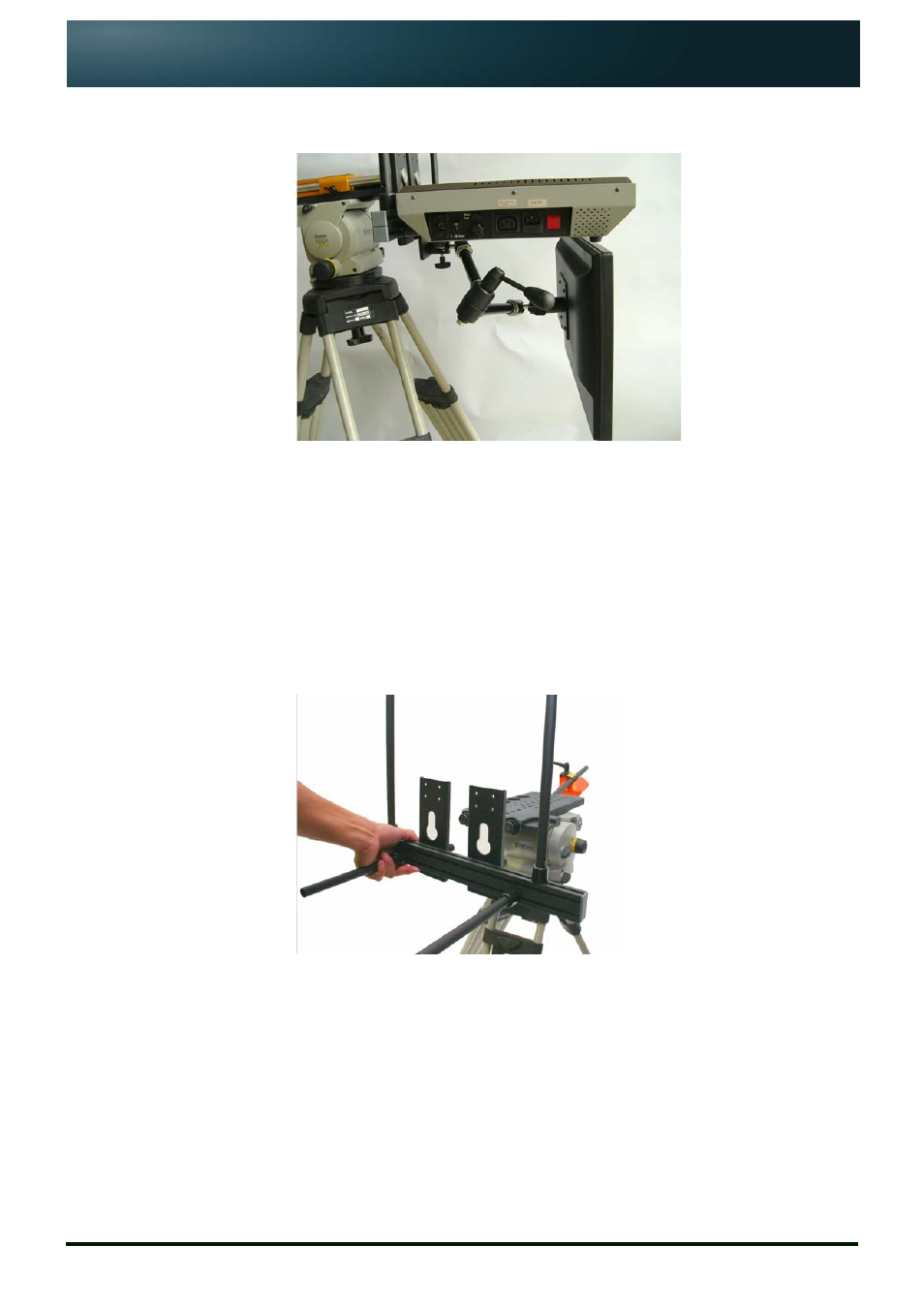

Attach Magic Arm mounting plate to OCU bracket
Position monitor below OCU
TFM17
Assembly and Installation
Guide
3. Securely lock the whole assembly in place by tightening the central
locking lever.
5.2: Attach Magic Arm mounting plate to
OCU bracket
If you have purchased a TFM17 as a separate item, you will need to attach the
monitor plate to the OCU mounting bracket.
1. Remove the wide angle hood and prompter display monitor from the
OCU mounting bracket.
2. Detach the mounting bracket from the tripod mounting plate.
3. Remove one of the horizontal mounting bars
