Section 5: Assembly Procedures
Mounting a TFM17 on an Autocue “Magic Arm”
Attach monitor to the “Magic Arm”
TFM17
Assembly and Installation
Guide
N
OTE
:
The vertical hood mounting bars are longer than the horizontal
prompter display unit mounting bars.
5.1.2: Attach monitor to the “Magic Arm”

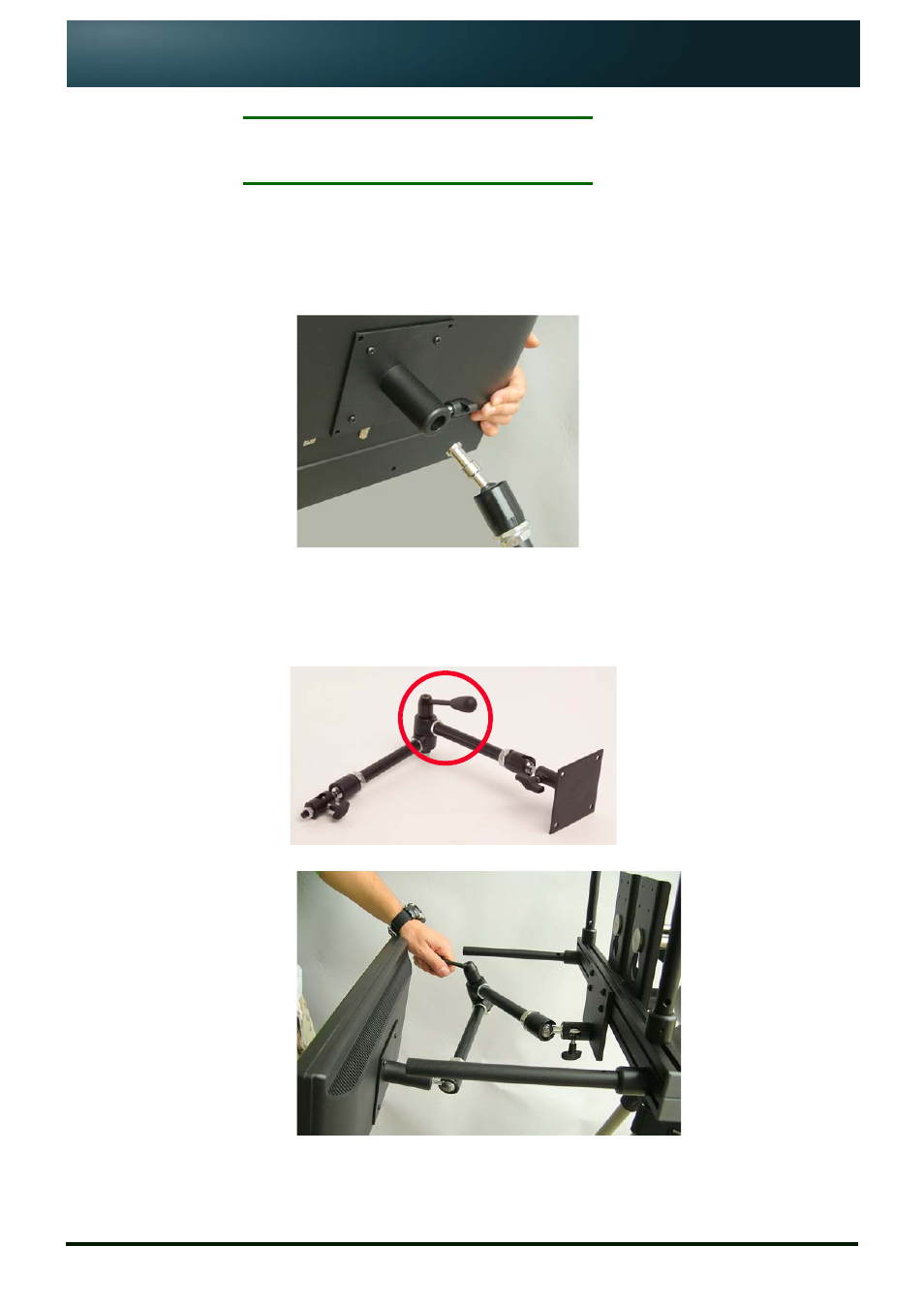

1. Insert the end of the “Magic Arm” into the socket of the plate on the rear
of the TFM17.
2. Securely fasten the locking screw.
5.1.3: Position monitor below OCU
1. Loosen the central locking lever of the “Magic Arm” bracket..
2. Carefully maneuver the TFM17 to the required position.
