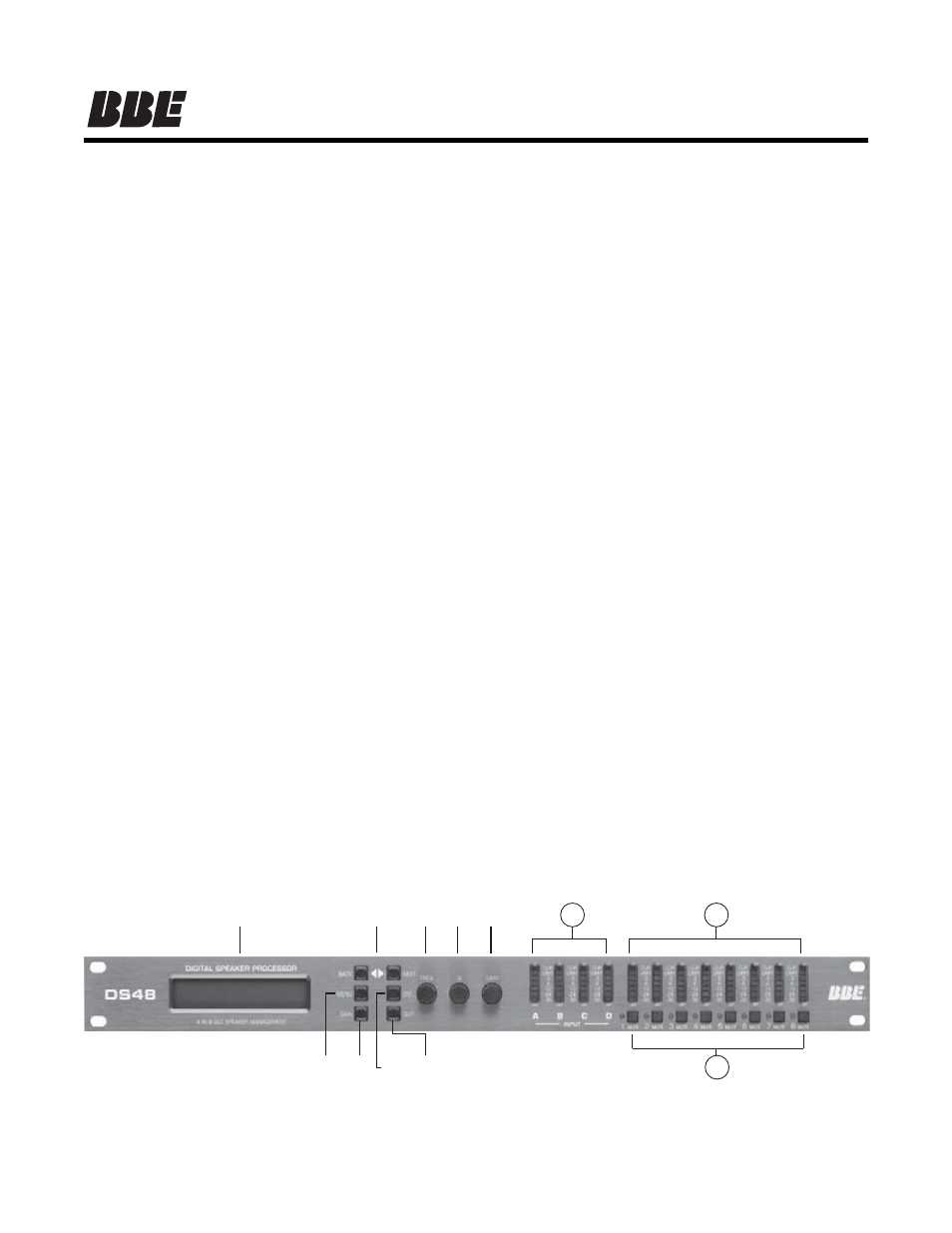

FRONT PANEL

1. LCD Display

The 2x20 backlit LCD displays the program and programming choices of the unit.

2. Buttons

These buttons allow navigation for selection of sub-menus and some parameter values.

3. Menu

This is one of two buttons that will access the front panel programming. This one is used
primarily to select which program to call up, edit or save.

4. Gain

This is one of two buttons that will access the front panel programming. This, along with
the buttons accesses the various parameters of a program.

5. Enter

Hitting this button will write the current selection to memory.

6. Quit

This exits the programming menu and returns the display to showing the selected
program.

7. FREQ Encoder Knob

This acts as the main value selector dial for most parameters other than those associat-
ed with EQ, Q and EQ Gain.

8. Q Encoder Knob

This adjusts the Q of a selected equalizer band.

9. GAIN Encoder Knob

This adjusts the Gain levels of Inputs, Outputs and any selected equalizer band.

10. Input Meters

These display the levels of the four inputs. The seven LED lamps per display are in 6 dB
steps from –30dbV to –6dBV, then -3dBV, then Limit (0dBV), then Clip (+8 dBV)

ᕃ

ᕄ

ᕇ

ᕅ ᕆ

ᕉ ᕊ ᕋ

ᕈ
