AJA FR2 - Manual (Page 4)

4
FR2 Features • Triple fan forced-air cooling inside removable access door
• Hot-swappable power supplies
• Optional redundant power supplies, diode isolated
• Universal power supply is auto-ranging from 90 to 240 VAC with 100 Watts
capacity
• 10 module slots (cells)
• Each module cell is provided with 9 BNC inputs or outputs
• Single frame reference BNC distributes actively to all cells via an internal
distribution amplifier
• Remote power supply monitoring via RJ45 port on rear panel
• Power LEDs on front panel show power status
• Compatible with common industry frames—video cards only (Leitch™
6800-series)
I/O Connections

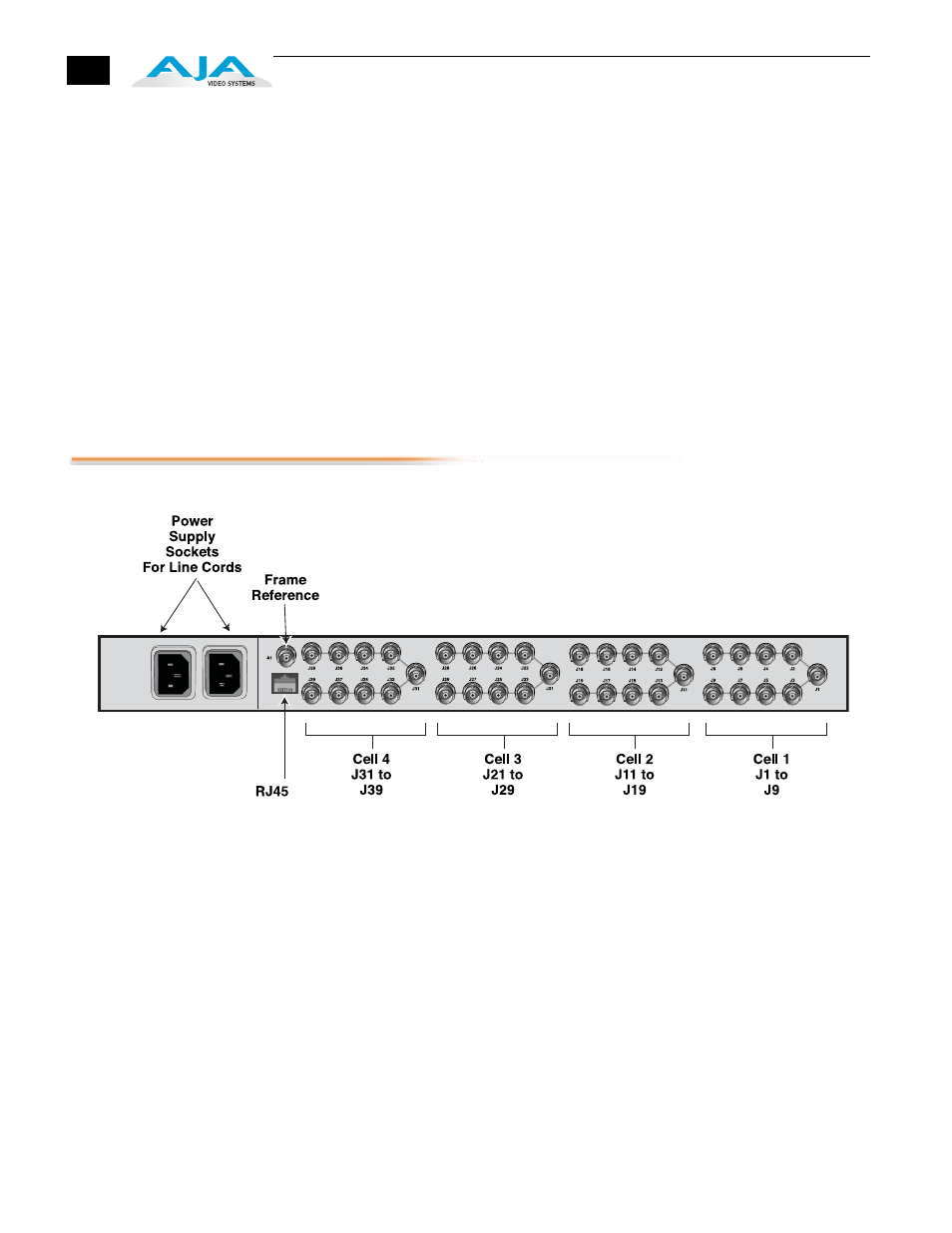

FR1 Multiple Card Frame, Rear Panel Connectors
