5 AJA D10CE 10-bit SDI to Component/Composite Converter User Manual — User Controls
User Controls

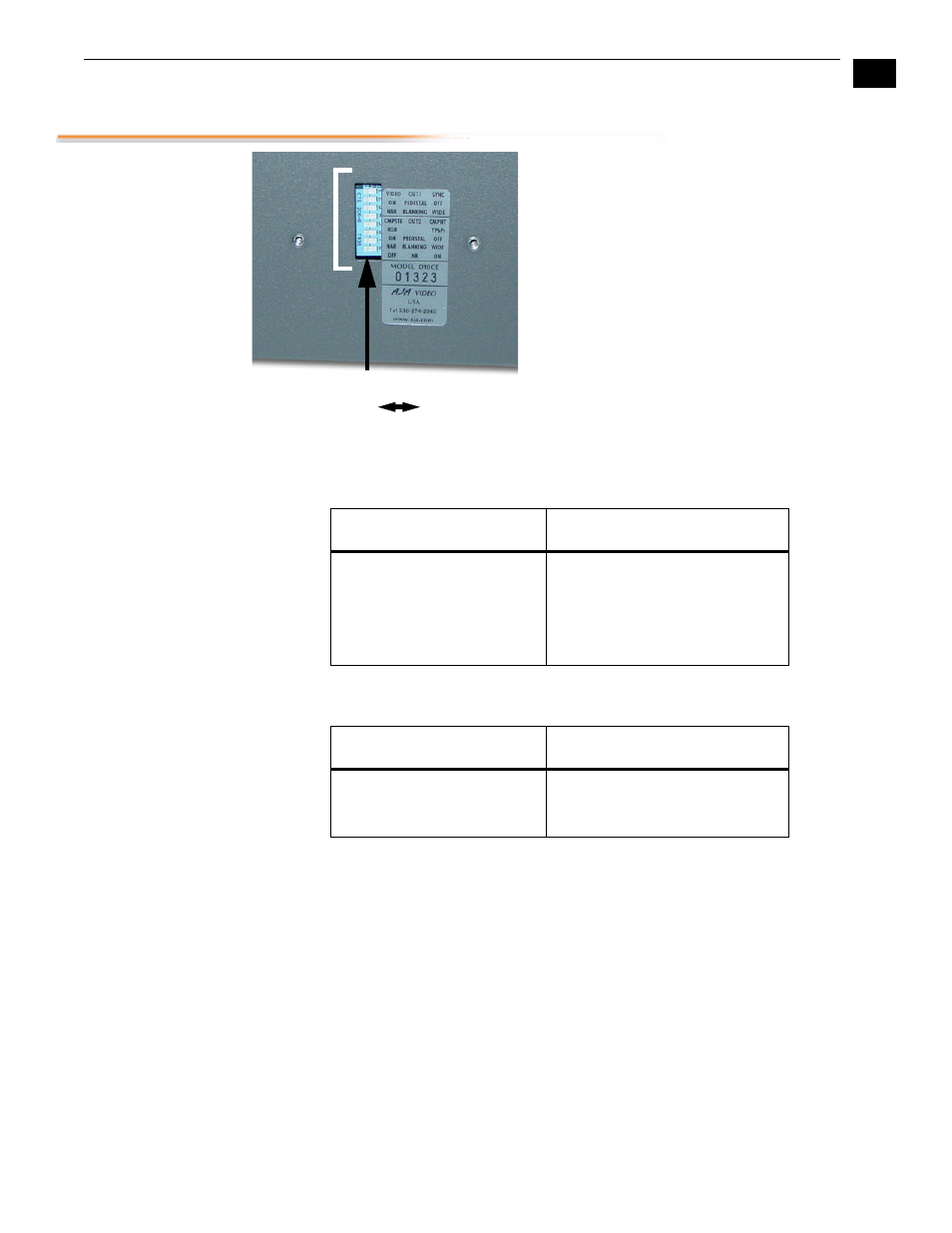

The user interface for the D10CE is an 8-switch DIP
accessible through a cut-out in the bottom of the
unit. Use the DIP switches to configure outputs,
pedestal, blanking, and enable or disable noise
reduction.
Switches 1 through 3 control the COMPOSITE/
SYNC output BNC. Switches 4 through 8 control
the video format of the three BNCs below. The exact
function of each DIP switch and what it controls is
described on the following pages.
Switch 1 Selects VIDEO or SYNC output from the Composite/Sync
BNC
:
Switch 2 Configure Pedestal For Composite/Sync BNC
:
Note: There is no effect with 625 input.
ON OFF
Selects SYNC output for
Component output (use when
the device being fed the
component signal requires a
separate sync signal) Selects composite video out
ON OFF
7.5 IRE pedestal for NTSC
(also selects BETA 525 levels
for YPbPr) No pedestal (also selects SMPTE
levels for YPbPr)
DIP Switches
1
2
3
4
5
6
7
8
8
OFF ON
