4

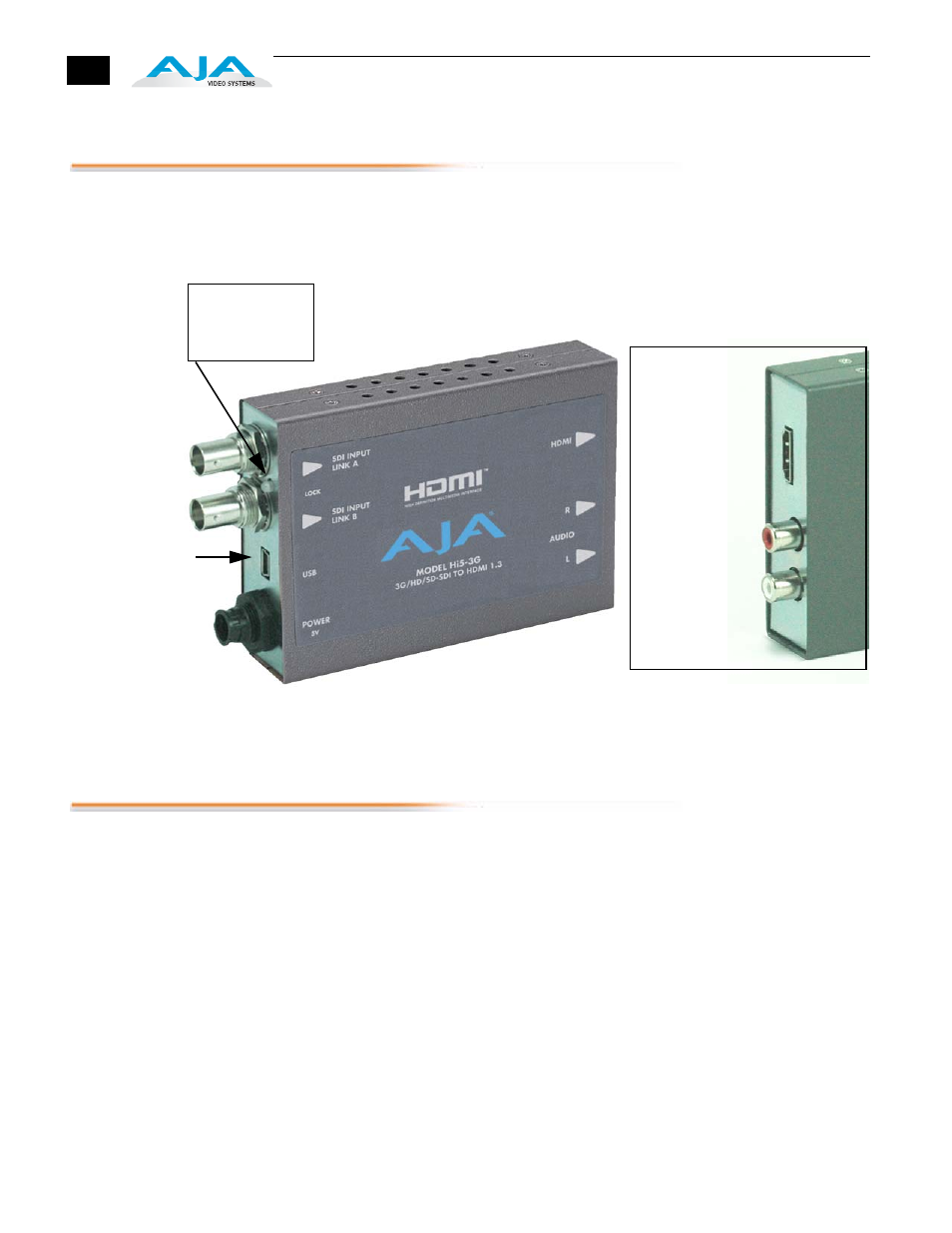

I/O Connections
Hi5-3G Converter
Installation
Typically, Hi5-3G installation consists of the following steps:
1. Ensure the Hi5-3G is disconnected from power.
2. Connect video equipment to the convertor BNCs and HDMI connector.
3. Connect audio equipment to RCA connectors (optional)
4. Apply +5VDC power to the converter (AJA power supply model DWP or
DWP-U).
5. The Hi5-3G will now run using the default factory settings. If you wish to
alter the factory settings, you’ll need to install the AJA Mini Config software
(supplied on CD) on a computer, attach the Hi5-3G via USB to the
computer, and then make your changes. This process is detailed on the
following pages.
3G, HD, SD-SDI
+ 5VDC
Power
Input
2 Channel
Unbalanced
Analog
Audio
(RCA Jacks)
Output
HDMI Connector
Right Side View
Input BNC
Link A
HD, SD-SDI
Input BNC
Link B
USB
Port
Green: Lock to SD
Red: Lock to HD/
Dual Link
Amber: Lock to 3G
LOCK LED
