Page 24
3. Installation Guidelines

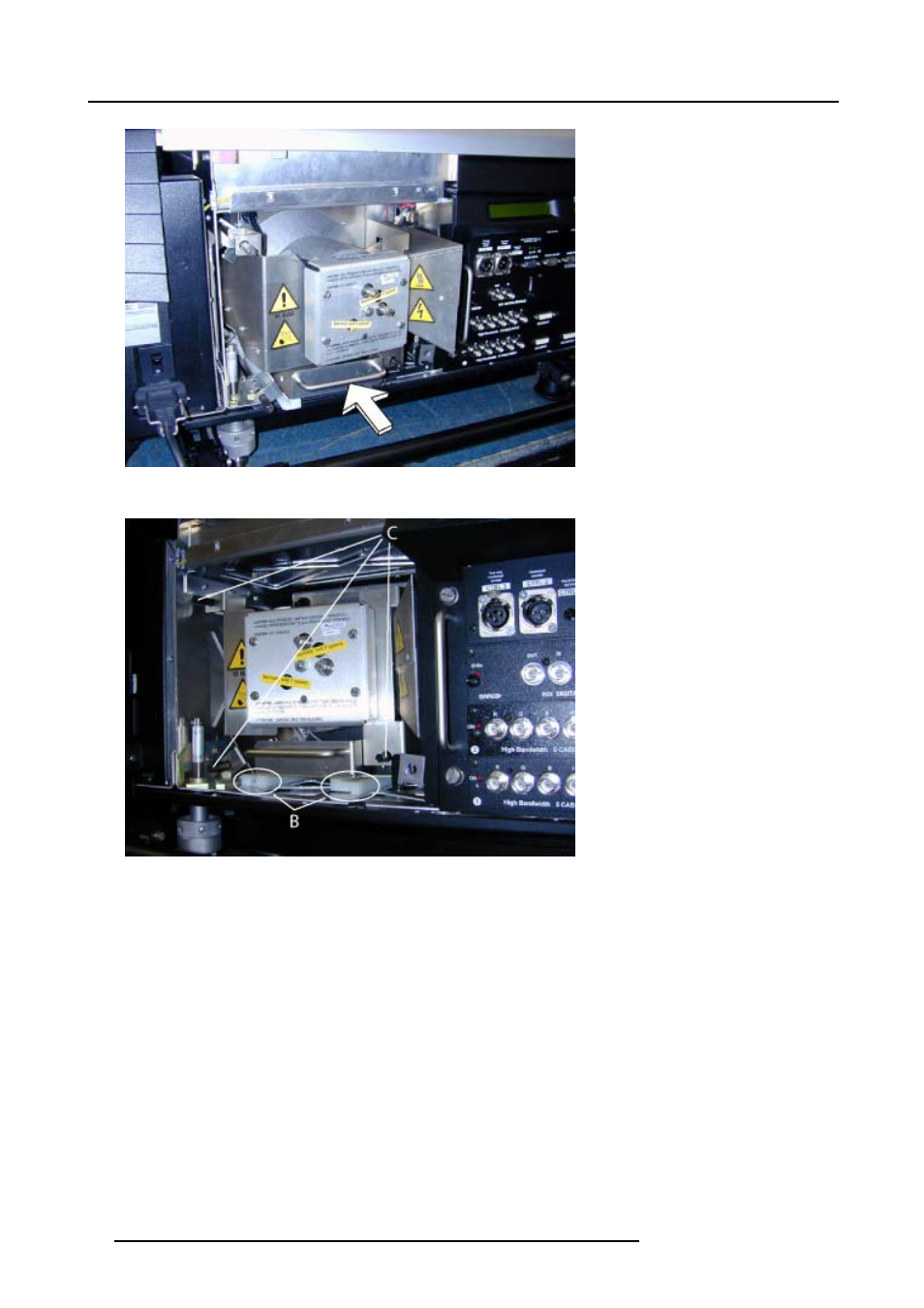

Image 3-11
Inserting the lamp
Image 3-12
Securing the lamp
3.5.3
Reinstalling the Side Panel
What has to be done
After the new lamp unit has been installed, the side panel has to be remounted.
Necessary tools
A flatblade screwdriver of 5 mm
Reinstalling the side panel
1. Move the cover guides under the back cover and push the front of the cover against the projector frame lining up the cover lock
screw with the speed nut (A) on the frame. (image 3-13, image 3-14)
2. Turn with a screwdriver the side panel lock screw (B) a quarter turn clockwise to lock. (image 3-15)
20
R5976801 SLM R9+ 20/10/2004
