Bryant 524J User Manual
Page 8
8
6. 40RUS may require alternate or additional
field favricated poping access holes
UNIT
524J*28A
524J*30A
lb (kg)
1050 (477)
1062 (482)
LEGEND
TXV — Thermostatic Expansion Valve
NOTES:
1. Dimensions in [ ] are in millimeters.
2.
Direction of airflow.
3. Recommended clearance:
• Rear: 3 in. [914 mm] (2 ft, 6 in. [762 mm]
with electric heat accessory)
• Front: 2 ft, 6 in. [762 mm]
• Right Side: 2 ft, 6 in. [762 mm]
• Left Side: 2 ft, 6 in. [762 mm]
• Local codes or jurisdiction may prevail.
4. Liquid piping not supplied by Carrier.
5. Duct flange is factory supplied and field
installed.
C10835

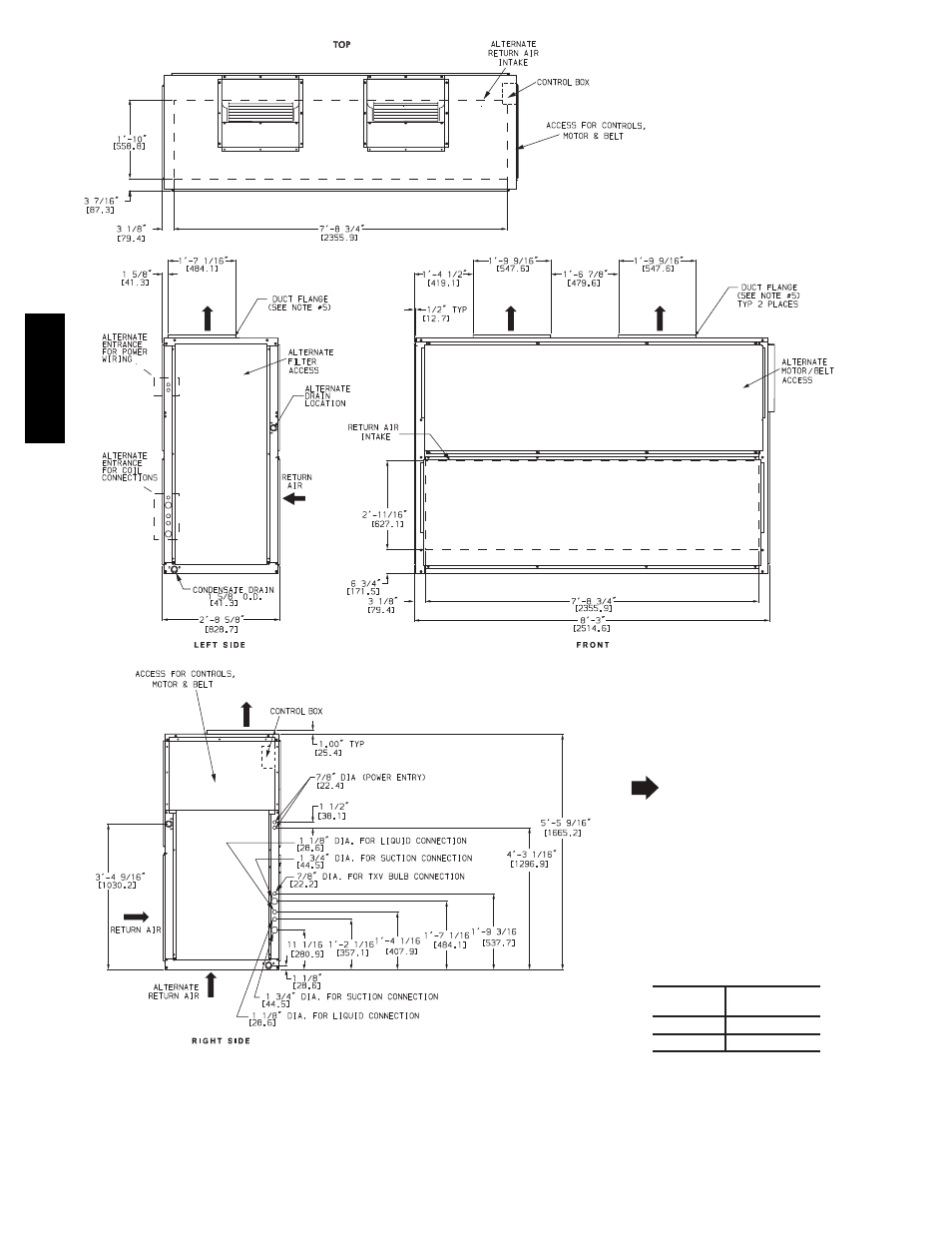

Fig. 2 -- Dimensions – Sizes 28 and 30
524J
