Typical positioning and alternate return air locations are
shown in Fig. 6. Alternate return air locations can be used
by moving the unit panel from the alternate return air
location to the standard return air location. Refer to
overhead suspension accessory drawing (Fig. 7) for
preferred suspension technique. The unit needs support
underneath to prevent sagging.
IMPORTANT: Do NOT attempt to install unit with return
air entering top panel of unit. Condensate will not drain from
unit.
NOTE: Dimensions in [ ] are millimeters
OVERHEAD SUSPENSION ACCESSORY — UNIT SIZE 25
OVERHEAD SUSPENSION ACCESSORY — UNIT SIZES 28, 30
C10728

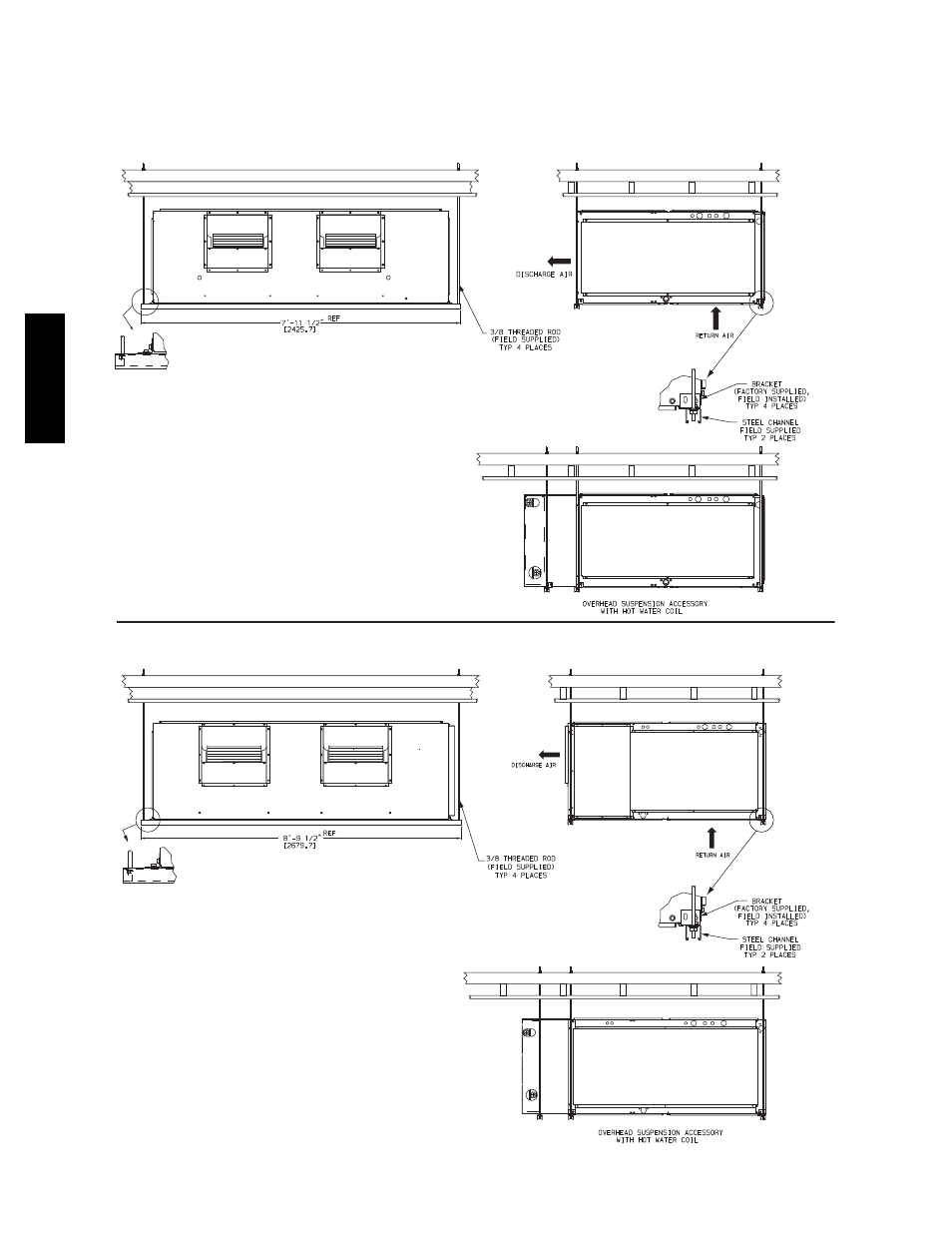

Fig. 7 -- Preferred Suspension Technique
