ULTRAMATCH PRO SRC2496
3. APPLICATIONS

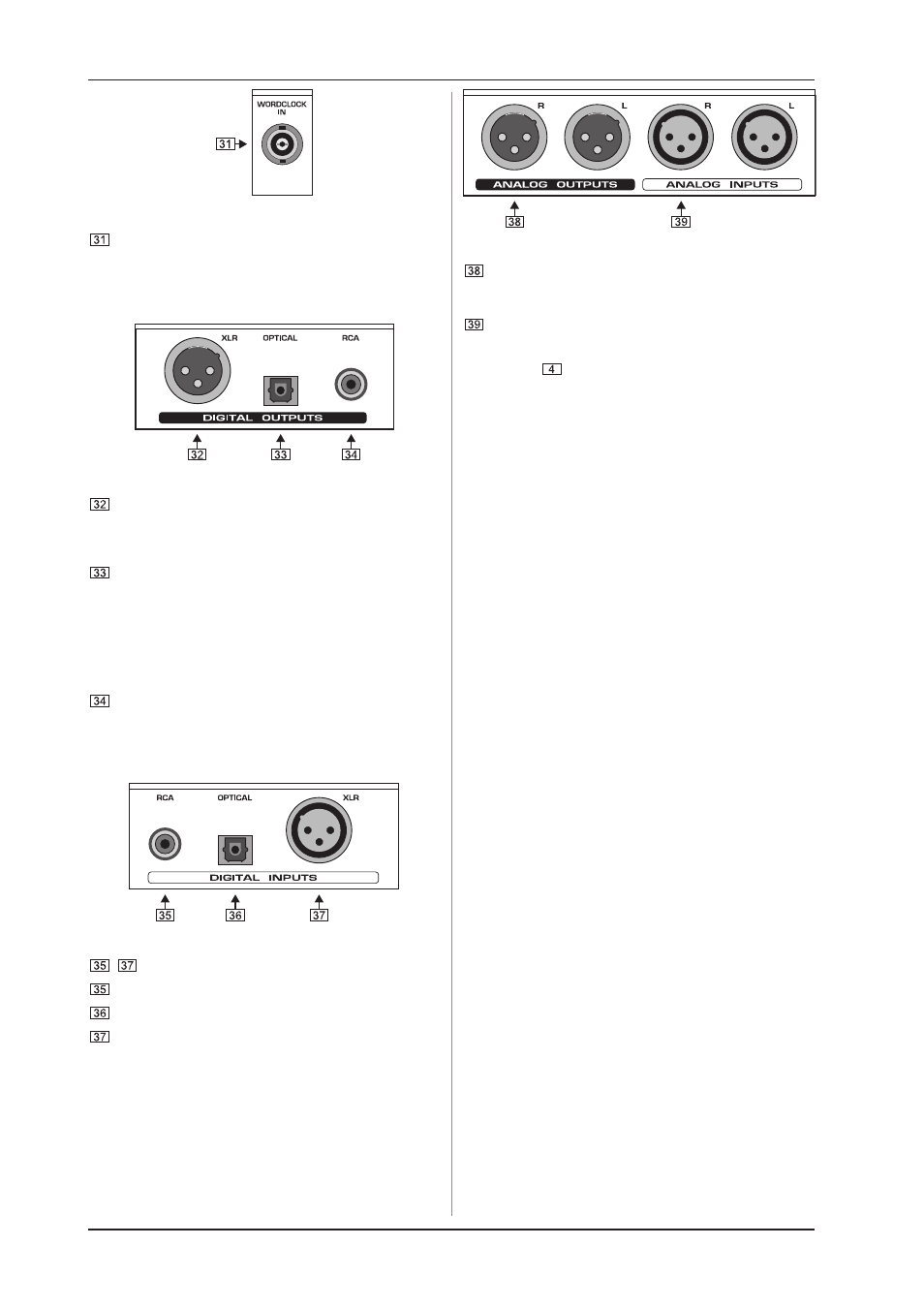

Fig. 2.8: Wordclock connector
The BNC connector WORDCLOCK is a high-impedance
connector with no internal terminating impedance (75 ohms).
Use it to connect devices for the external synchronization of
your ULTRAMATCH PRO. Please note the instructions given
in chapter 3.2.3.
Fig. 2.9: Digital outputs
The digital XLR output is the standard output connector for
AES/EBU signals (AES/EBU LED lights up). When S/PDIF is
selected, the XLR output also provides this signal. Further
information on these connectors can be found in chapter 5.3.
This is the OPTICAL (Toslink) output connector of the
ULTRAMATCH PRO. When the unit is shipped, the optical
Toslink input/output connectors have dummy plugs attached
to protect them from dirt and to prevent the emission of light.
These dummy plugs can be removed easily if you wish to use
the connectors. The digital standard format for this output is
S/PDIF. However, you can also transmit AES/EBU signals
via this output.
RCA output. The digital standard format for this output is
also S/PDIF. If AES/EBU has been selected in the output
section, this output also provides AES/EBU signals. Unlike
the XLR connector, however, this output allows for
unbalanced signal transmission.
Fig. 2.10: Digital inputs
- DIGITAL INPUTS.
The RCA input is the digital standard input for S/PDIF signals.
The OPTICAL input (Toslink) is also used for S/PDIF signals.
XLR input. The digital XLR input is the standard input
connector for AES/EBU signals. It can also be used to feed
in S/PDIF signals, like the RCA and OPTICAL inputs which
can be used to process AES/EBU signals in addition to the
S/PDIF format.
Fig. 2.11: Analog outputs and inputs
ANALOG OUTPUTS. These balanced analog XLR outputs
(stereo) provide the analog signal generated by conversion
from a digital format.
ANALOG INPUTS. Use these balanced analog XLR inputs
(stereo) to feed in analog line level signals. Please note the
instructions on level adjustment given in chapter 2.1.1
(section ).
3. APPLICATIONS
Your ULTRAMATCH PRO will soon prove to be a practical tool
of valuable help in almost any situation. Its straightforward user
interface is fun to work with. Don’t be misled by the plain design:
this device is a really flexible tool in a variety of applications.
You don’t need to own a professional recording studio to benefit
from the wide range of features and functions implemented in the
SRC2496. Problems with the interfacing of optical and coaxial
connectors, removing copy protect bits, converting sampling rates
from 48 to 44.1 or 32 kHz—all of these tasks are quite common
daily routines even in a home recording environment.
Additionally, the ULTRAMATCH PRO suggests itself as a
high-end A/D and D/A converter or enhanced source selector for
digital inputs—whenever you need an inexpensive and reliable
alternative to equipment with considerably higher prices.
3.1 A/D and D/A conversion with the
ULTRAMATCH PRO
3.1.1 Converting analog to digital
The ULTRAMATCH PRO is equipped with high-grade A/D and
D/A converters. With the SRC2496 you own an excellent tool for
preparing your analog audio data for digital processing or for
converting analog signals directly and storing them on a digital
medium. The analog input is set for studio levels (+4 dBu), but
can be adapted to low-level signals with the GAIN control. Please
use the level meter to adapt the level of the input signal, as
described in chapter 2.1.1. The illustrations 3.1 and 3.2 below
show you how to connect the unit.
