3D Robotics Video/OSD Kit - Manual (Page 2)

Attach an antenna
to the transmitter.

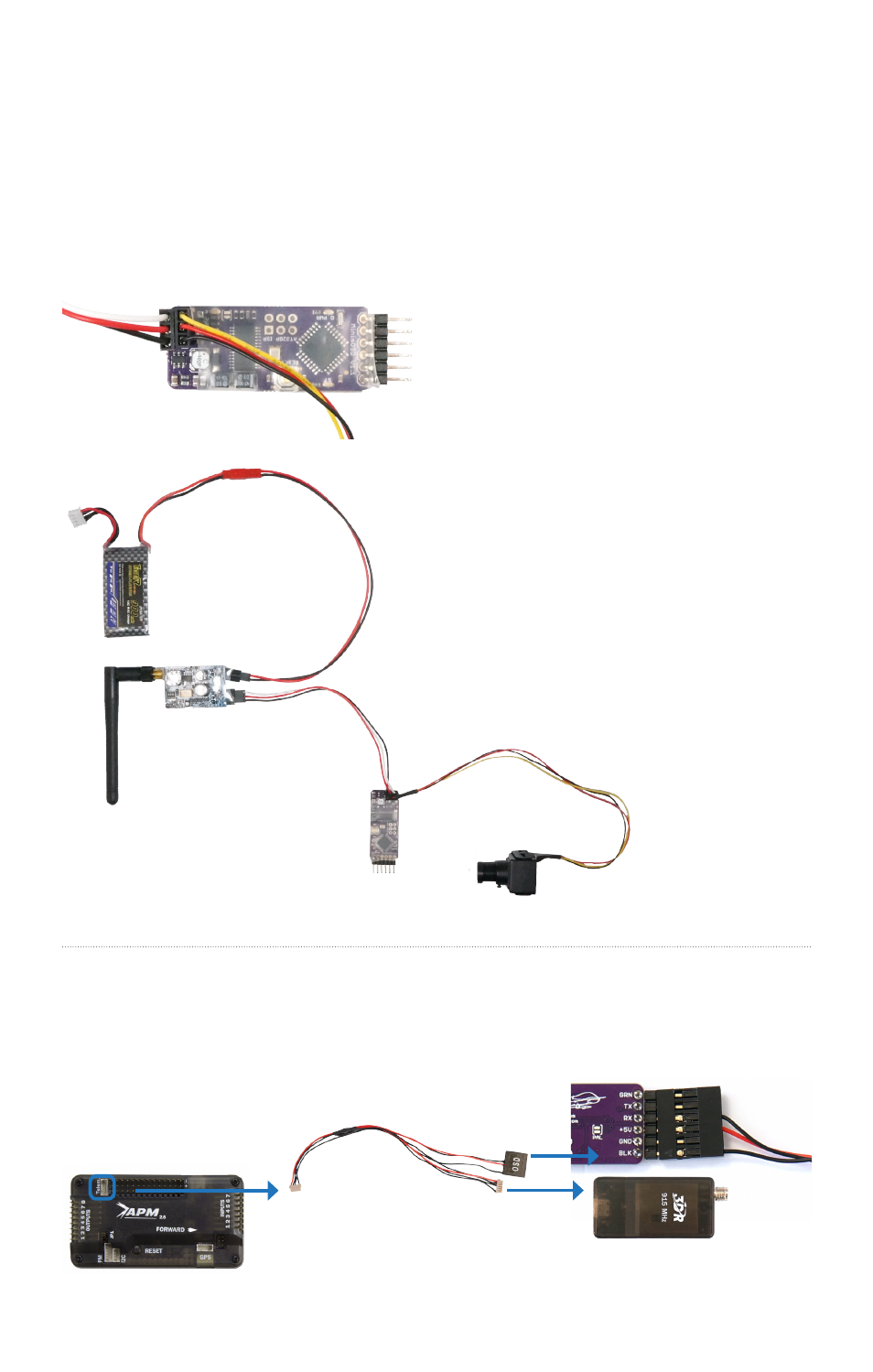

Connect camera and transmitter to OSD
Connect the black, red, and yellow three-wire cable to the camera and
to the three pins on the OSD labeled GND, +12V, and VIN with the black
wire connected to GND and the yellow wire connected to VIN.
Connect the red, black, and white three-wire cable to the transmitter and
to the three pins on the OSD labeled GND, +12V, and VOUT with the
black wire connected to GND and the white wire connected to VOUT.
Wire onboard components: APM and 3DR Radio V2
Connect the OSD and 3DR Radio to the APM Telem
port using the DF13 to DF13 and FTDI y-cable.
Ensure that the red wire connects to the pin on the
OSD labelled +5V.
