5 Leg assembly
Follow these instructions to assemble
one leg.

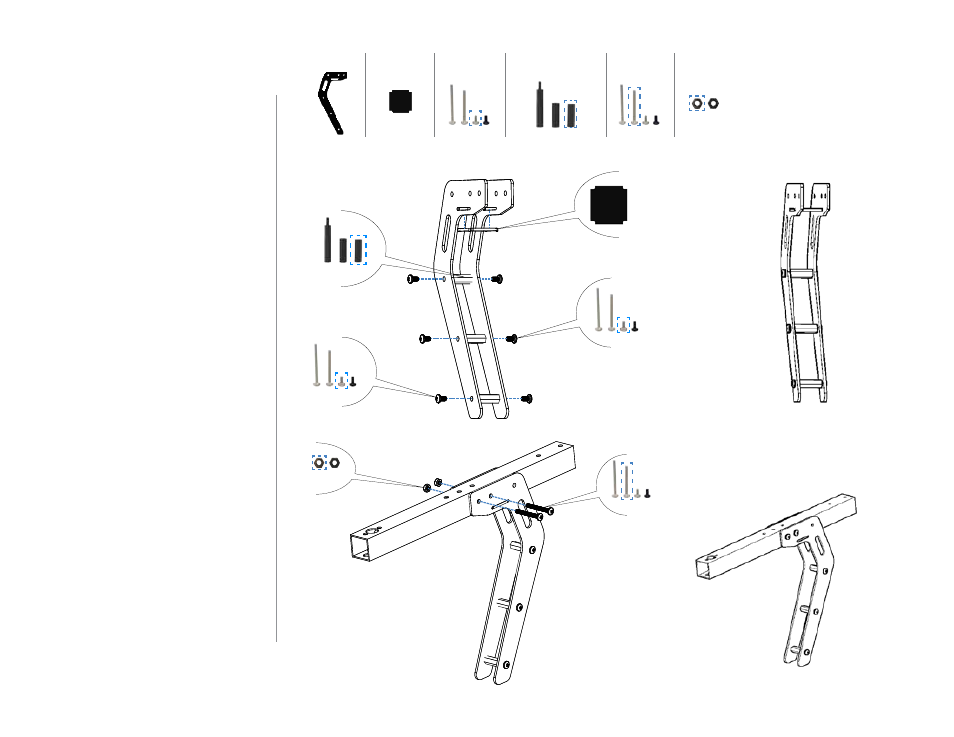

1 Assemble leg
Align the leg plates, and place a
standoff between each of the bottom
three pairs of holes in the plates.
Secure each standoff to the plates
with a 5 mm bolt on each end. Insert
the support plate into the horizontal
slots at the top of the leg.
2 Attach leg to arm
Align the two holes in the top of the
leg with the two holes in the center of
the arm. Orient the leg with the point
facing towards the center of the
copter. Insert two 25 mm bolts
through the arm and the leg, and
secure with metal nuts.
Repeat these steps for each leg of
your copter.
leg support plate
18 mm spacers
5 mm bolts
5 mm bolts
18 mm female-to-female
threaded standoffs (3)
5 mm bolts (6) leg plates (2) leg support plate metal nuts (2) 25 mm bolts (2)
metal nuts
25 mm bolts
