Your plane is now fully assembled.
For software downloads and flying
instructions, please visit
plane.ardupilot.com . Happy flying!

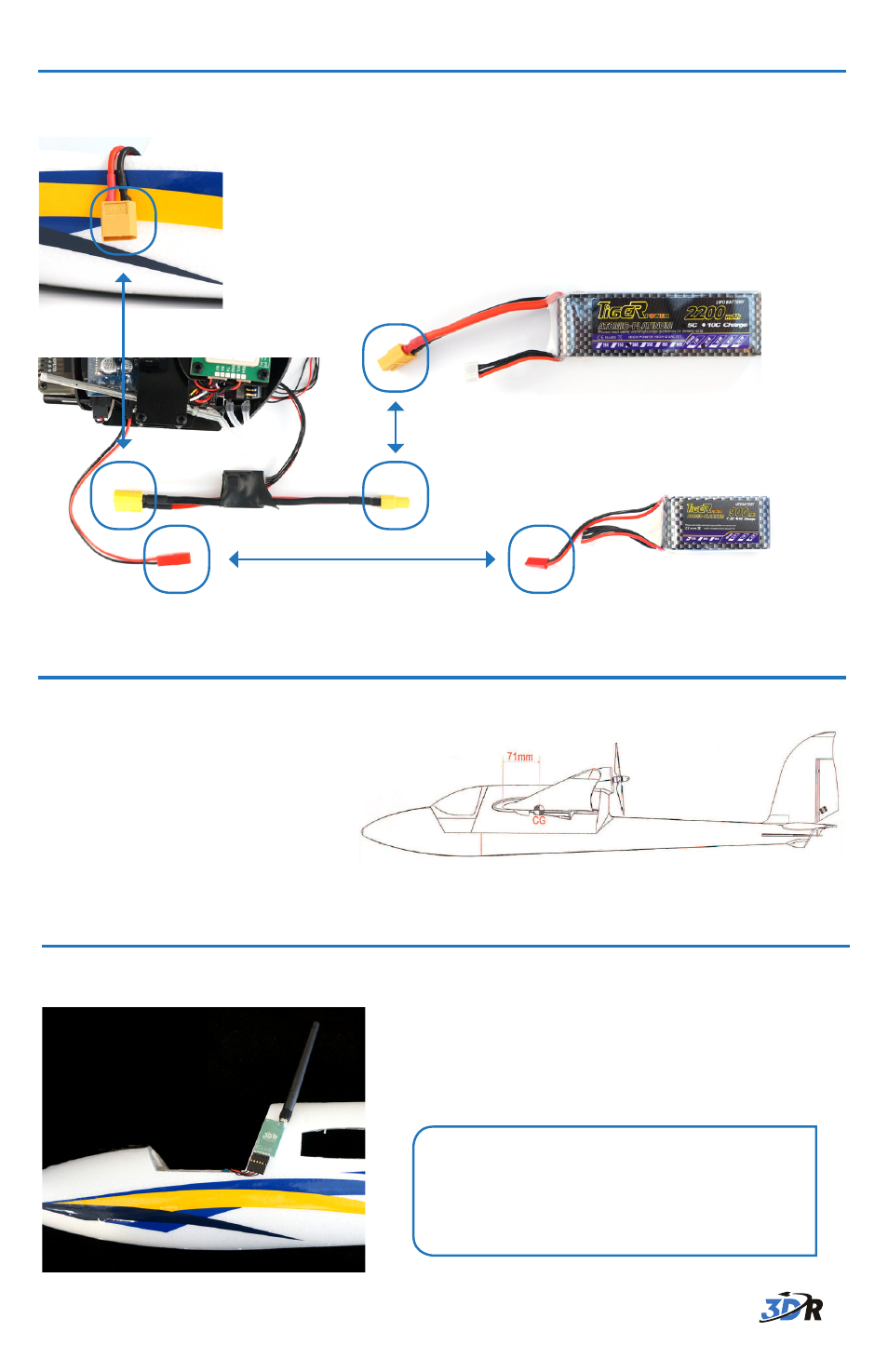

POWER WIRING
Connect the power module’s yellow
XT60 connectors to the motor and
main battery connectors. Connect
the AV transmitter battery to the
red connector on the transmitter.
AV transmitter battery
Main battery
Motor power
connector
Power module and
transmitter power connector
BALANCING THE PLANE
Your plane’s center of gravity should
be 71 mm from the leading edge.
Please balance the plane
at this point before flying,
and move the main battery
as necessary to achieve the correct center of gravity,
MOUNT TELEMETRY AIR MODULE
Use the adhesive Velcro squares to mount
the telemetry radio air module to the side
of the fuselage where it has a clear view
of the sky.
