WORX WU407 1400W vibrafree Reciprocating Saw 240V - Manual (Page 10)

10

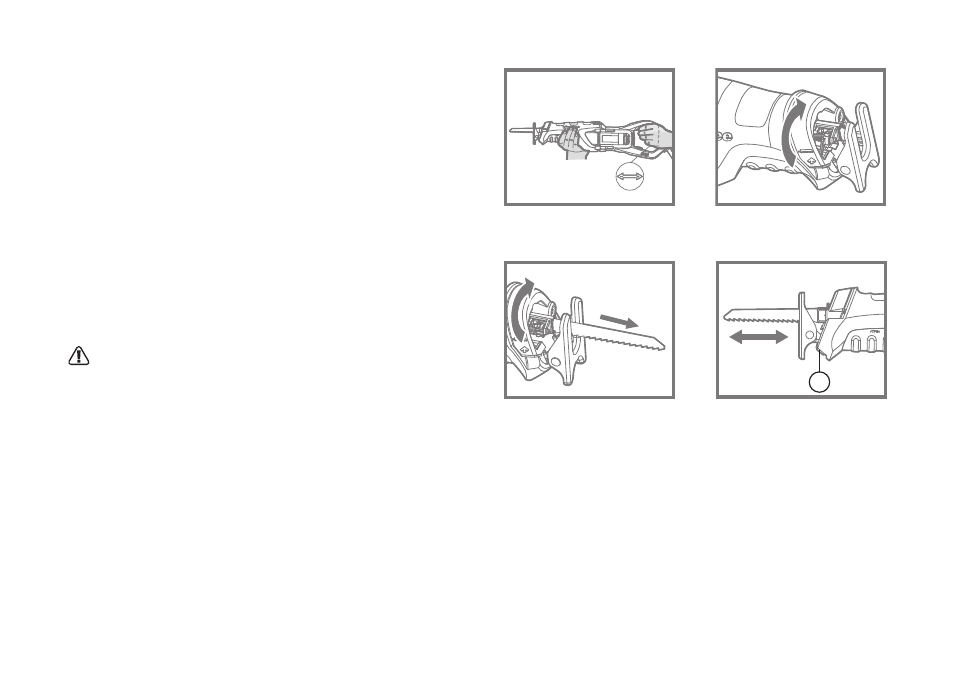

HaND GRiP aReaS (See fig. c)
Always hold your saw firmly with both hands when operating.
tool-leSS BlaDe fittiNG (See fig. D, e)
To install the blade, disconnect the saw from power supply. If
necessary, extend the pivoting blade foot away from the blade clamp
for easier access. Pull the tool-less blade clamp lever (3) up with your
thumb in clockwise direction. (See Fig. D) Insert the blade into the
saw’s blade clamp and make sure that the blade attaches to the blade
pin inside the clamp. Release the blade clamp lever (3) to ensure the
blade is locked securely in place.
Before removing the saw blade, make sure it’s already cooled. To
remove Blade, disconnect saw from power supply. If necessary,
extend the pivoting blade foot away from the blade clamp for easier
access. First, pull the blade clamp lever (3) up with your thumb, and
then pull the blade out of the blade clamp. (See Fig. E)
Warning: Do not remove the saw blade immediately when
finished your working, you may get burned by the hot blade.
tool-leSS foot Plate aDJUStMeNt (See fig.f)
If you need to reduce the cutting capacity of your tool (depth of cut),
the pivoting foot plate (6) may be adjusted as follows.
Press the tool-less foot plate adjusting button (7) on the underside of
the front housing. Slide the pivoting foot plate forward or backwards
to give the required distance from the end of the blade. Release the
pivoting foot plate adjusting button. The pivoting foot plate is now
locked in position but will continue to pivot as it follows the work
surface during the cut. The distance from the front of the foot plate to
the tip of the blade (on the longest part of the cutting stroke) equals
the cutting capacity of the tool.
