Rev 0.0/4-10 2 LB6ALO: #35202AFT
ASSEMBLY
I
NSTALLATION

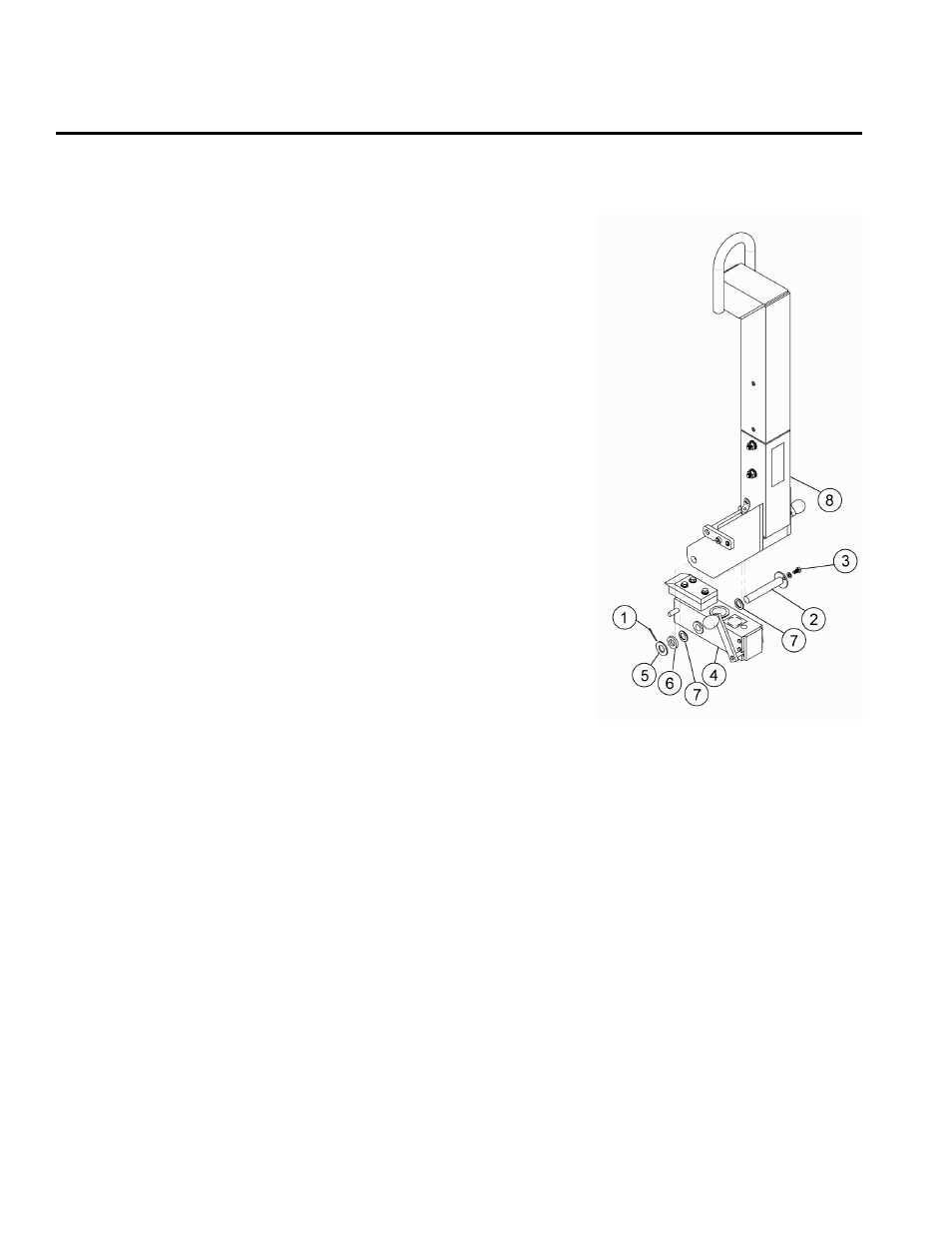

1) Remove the original lift bar from the vacuum lifter as
follows: Remove the cotter pin (1) from one end of the
tilt pin (2), and remove the hex head bolt (3) and its
washer from the opposite end. This will enable you to
slide the tilt pin out from the center section (4).
Note: Prior to removing the tilt pin from the center
section, carefully take note of the placement and order of
all associated hardware, so that you will know how to
reinstall the tilt pin.
Remove the tilt pin and the original lift bar. Be sure to lay
out the outer flat washer (5), the foam washer (6) and
the machine bushings (7) in the appropriate order for
reassembly.
2) Install the Adaptable Length Lift Bar (8) as follows: Slide
the new Lift Bar into position as shown in the illustration.
Be sure to install the tilt pin (2) and all the associated
hardware in the same order as originally installed. In
particular, the machine bushings (7) must go inside of the
plates of the Adaptable Length Lift Bar. Make sure that
the hex head bolt (3) and a new cotter pin hold the tilt pin
(2) securely in place.
Note: Clean hardware and replace any worn-out hardware, as necessary. In particular, the
cotter pin must be replaced , as it is only intended for one-time use (see REPLACEMENT
PARTS LIST).
