6

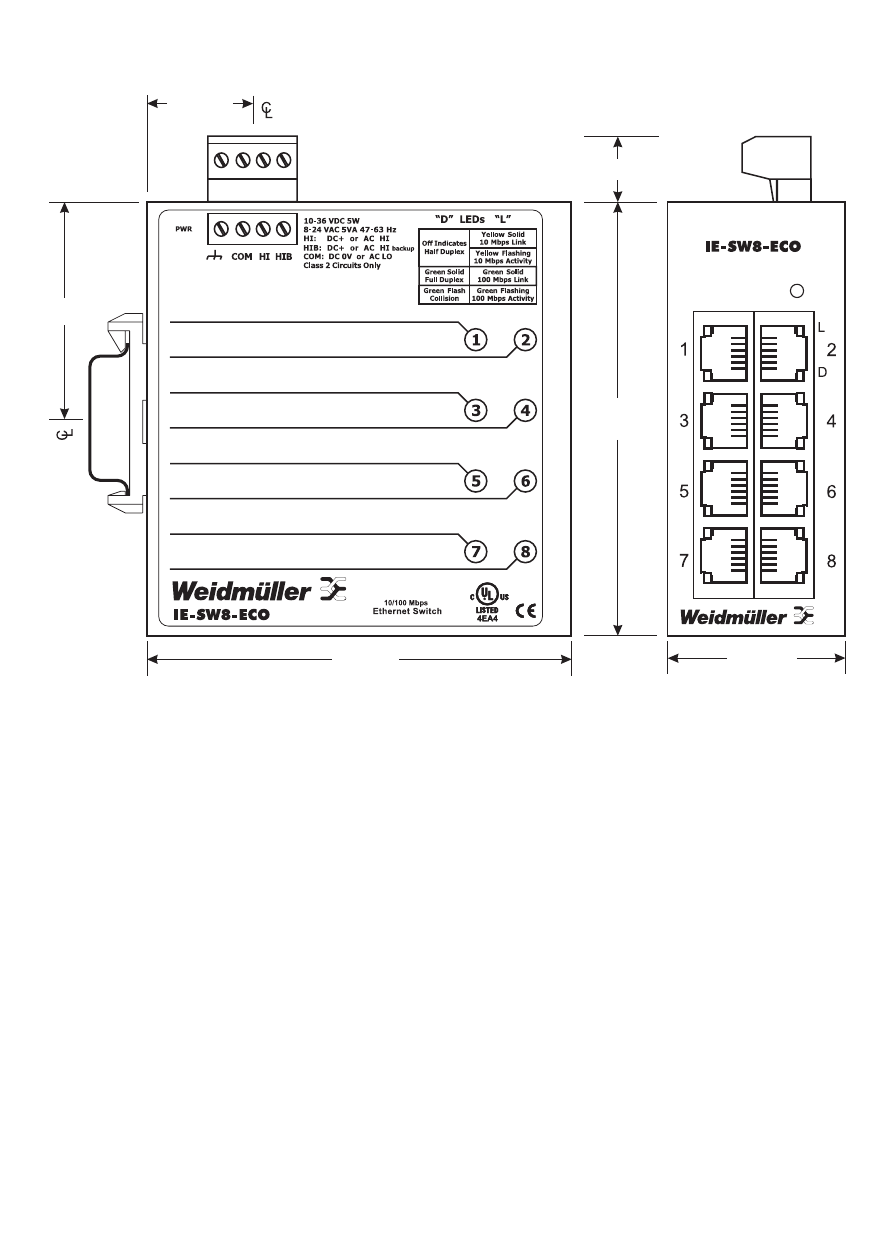

Dimensional Drawing
Power Options
Power Considerations
Voltage in the range of 10-36 VDC or 8-24 VAC must deliver current commensurate with 6-watt power
consumption. The recommended size for solid power conductors is 16-22 AWG; for stranded conduc-
tors, use 16-18 AWG. Ground is directly connected to zero volts and the chassis is isolated from zero
volts. Input connections are reverse-polarity protected.
LED Indicators
The “PWR” LED glows solid green when the switch is properly powered. To aid in troubleshooting, each
port has two LEDs. The Port 1 LED labeled “L” glows solid if a link exists, flashes to show activity and
shows data rate by color: green for 100 Mbps and yellow or 10 Mbps. The LED labeled “D” glows solid
green if full-duplex is on or is unlit when that port is operating in half-duplex mode. The LEDs of Ports 1
and 2–5 are unlabeled but work the same.
25 mm
16 mm
100 mm
44.1 mm 98 mm
50 mm
T
S
-35 DIN-Rail
PWR
