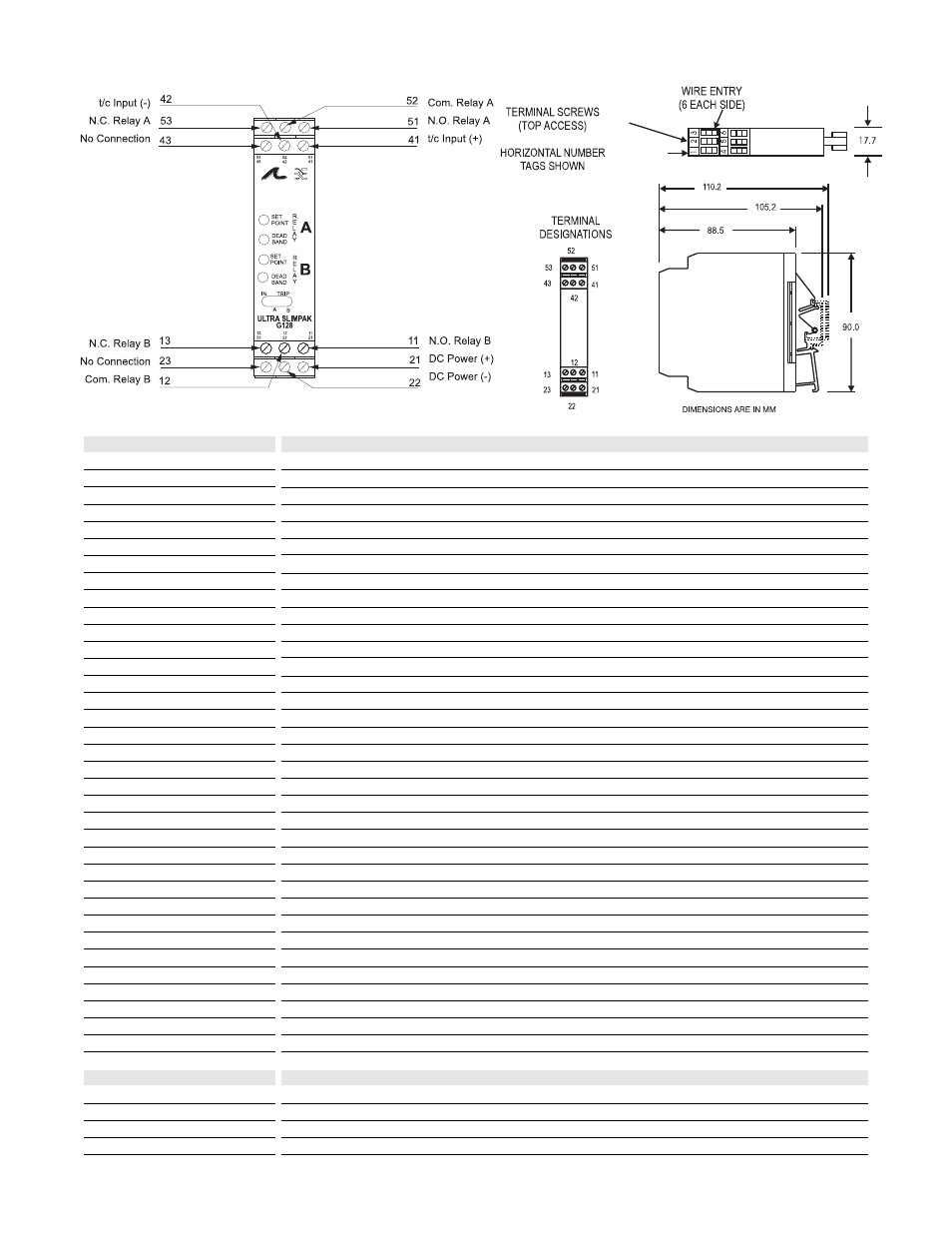

Weidmuller G128 Ultra SlimPak - Manual (Page 4)

Rated data
Input
Range
Impedance
Maximum ratings / type of protection
Other input specification
Other input specification
Output
Range
Load
Zero / Span adjustment
Protection
Other output specification
Other output specification
Supply
Range
Consumption
General
Accuracy
Temperature coefficient (drift)
Transmission frequency
Response time. 90% span
Other general specification
Status LED
Isolation (# of ports)
Operating / Storage temperature
Housing (mounting)
Dimensions (L x W x H)
Wire range (conductor size)
Insulation stripping length
Tightening torque
Approvals
Ordering data
Ultra SlimPak
Heat sink (width)
Shunt resistor
Thermocouple temperature sensor
Thermocouple Type Temperature Range Thermocouple Type Temperature Range
B 0...1820ºC R 0...1760ºC
E -270...1000ºC S 0...1750ºC
J -210...760ºC T -270...390ºC
K -270...1372ºC DIP switch selectable
1 Meg M min.
±10Vdc
input bias current: <1.5 HA
2 form C relays (2 SPDT), one set point per relay, gold flash / silver alloy contacts
2 set points independently adjustable over 100% of the selected input span, HI or LO, failsafe or non-failsafe
maximum 5A at 120Vac, 2A at 240Vac, 5A at 28Vdc (resistive load), minimum 10 HA at 10mV
deadband adjustable from 0.25% to 5% of span
external relay contact protection required for inductive load switching
Electrical life: 10 5 operations at rated load
Mechanical life: 10 7 operations no load
DC voltage
9 to 30Vdc, inverter isolated
1.5W typ., 2.5W max. (300mA inrush at 9Vdc)
0.2% for temp. >0°C, 0.3% for temp. <0°C
±0.05% of full scale/°C, max.
<250mS in normal mode, dynamic deadband: relay status will change when proper setpoint/process
condition exists for 100mS
input green (>110% of input: 8Hz, <-10% of input: 4Hz), 2 setpoint red (ON: tripped, OFF: safe)
1800V (3 port) between contacts, input and power
0°C to 55°C / -15°C to 70°C
EG12 (TS32 and TS35)
90mm x 17.7mm x 112.7mm max.
22-12AWG (0.5-4.0mm 2 )
7mm
0.4-0.8Nm
CSA (file LR-42272), UL (file E99775), CE marked (EMC dir. 89/336/EEC, LV dir. 73/23/EEC)
Cat. No.
G128 (factory calibration: 0 to 350ºC (J-type,), A-HI/B-LO, non-failsafe)
HS01-A (1.6mm) (conditionally required depending on installation, see heat sink data)
Note: G128-000X where X is the revision level
