8
MODEL VG06042
D. INSTALLING THE SIDE PANEL
1. Install the side seal strip (#7) to the wall side of the side panel (#18) . Do not cut around the glass
supports (#29) [SEE FIG.5].
2. Screw in the glass support (#29) with the hex key to the front fixed panel. Be sure to use washers
on both sides of the panel and make sure the glass shelf holes are closer to the top of the panel.
3. Arrange the side panel in alignment with the door panel (#6). Keep both panels perpendicular to
the walls.
4. Mark holes on the wall for the mounting screws for the glass support.
5. Remove the side panel and drill holes into the wall. Insert plastic anchors (#17) into the holes.
6. Replace the side panel. Screw into the wall with 1 5/8 " hex screws (#13) [SEE FIG. 5].
17
13

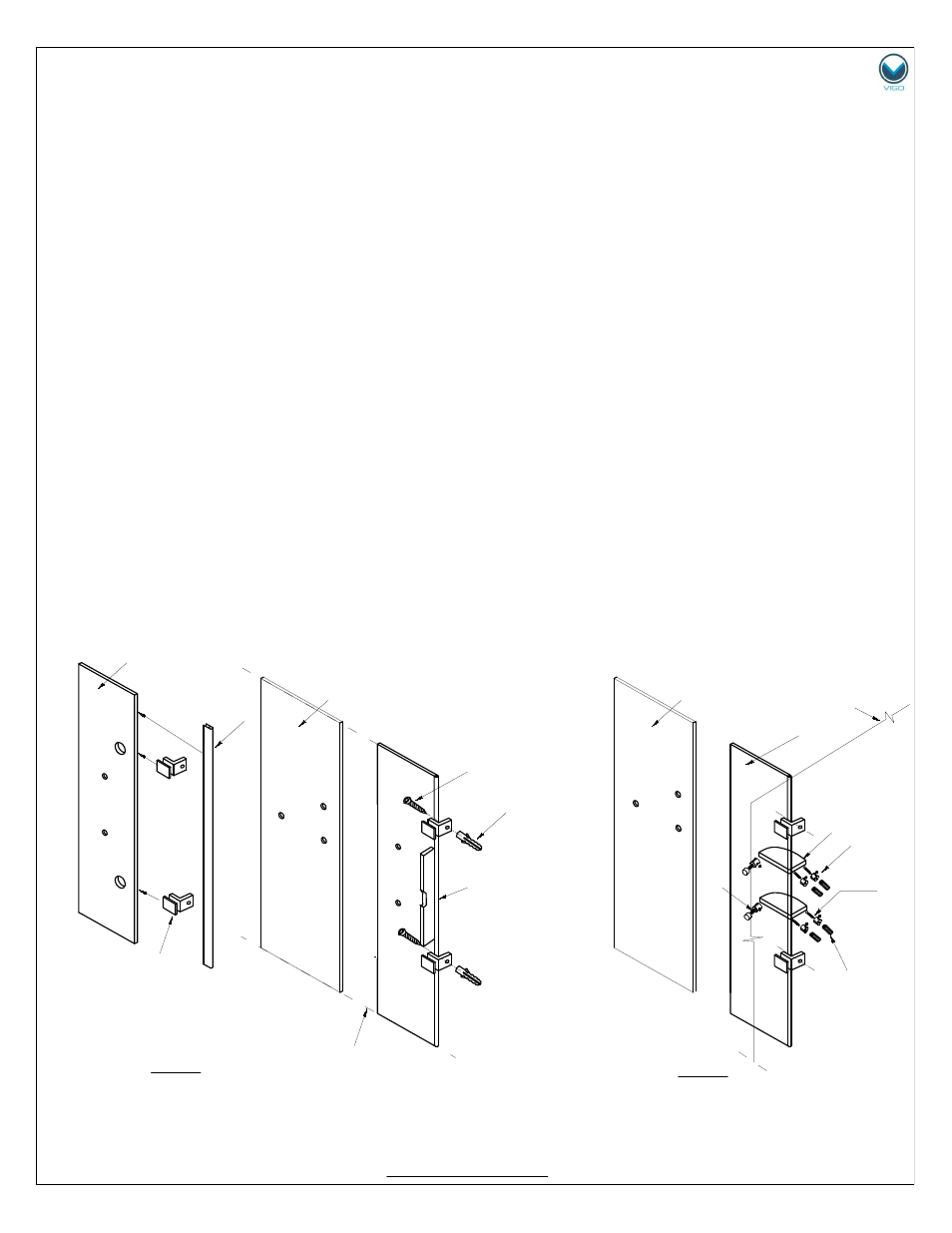

FIG.5
FIG.6
7
18
29
SIDE PANEL
ALIGNS WITH
DOOR PANEL
6
WALL
SIDE
E. INSTALLING THE GLASS SHELF
1. Unscrew the shelf glass holder cap (#22), insert threaded portion of shelf holder into the hole of
the side glass panel (#18) and then screw the holder cap back. The upper glass shelf shall be
installed first. [SEE FIG.6].
2. Slide the glass shelf into the holder and tighten the screw (supplied) from underneath part (#22)
to firmly hold the glass shelf in place.
3. Use a level to make sure that glass shelf is level against the wall .
4. Mark holes on the wall for the mounting screws for the glass shelf holder (to wall) (#21).
5. Loosen the screw of the shelf glass holder (to glass) from underneath and remove the shelf glass
from the side panel. Drill holes into the wall. Insert plastic anchors (#16) into the holes.
6. Install two shelf glass holder s (to wall) with 1 5/8" phillips screws (#14).
7. Slide the shelf glass into the three shelf glass holders and tighten the screws from underneath.
8. Repart 1-6 to install the lower shelf glass.
6
18
WALL
20
21
14 22
16
