MODEL VG06042

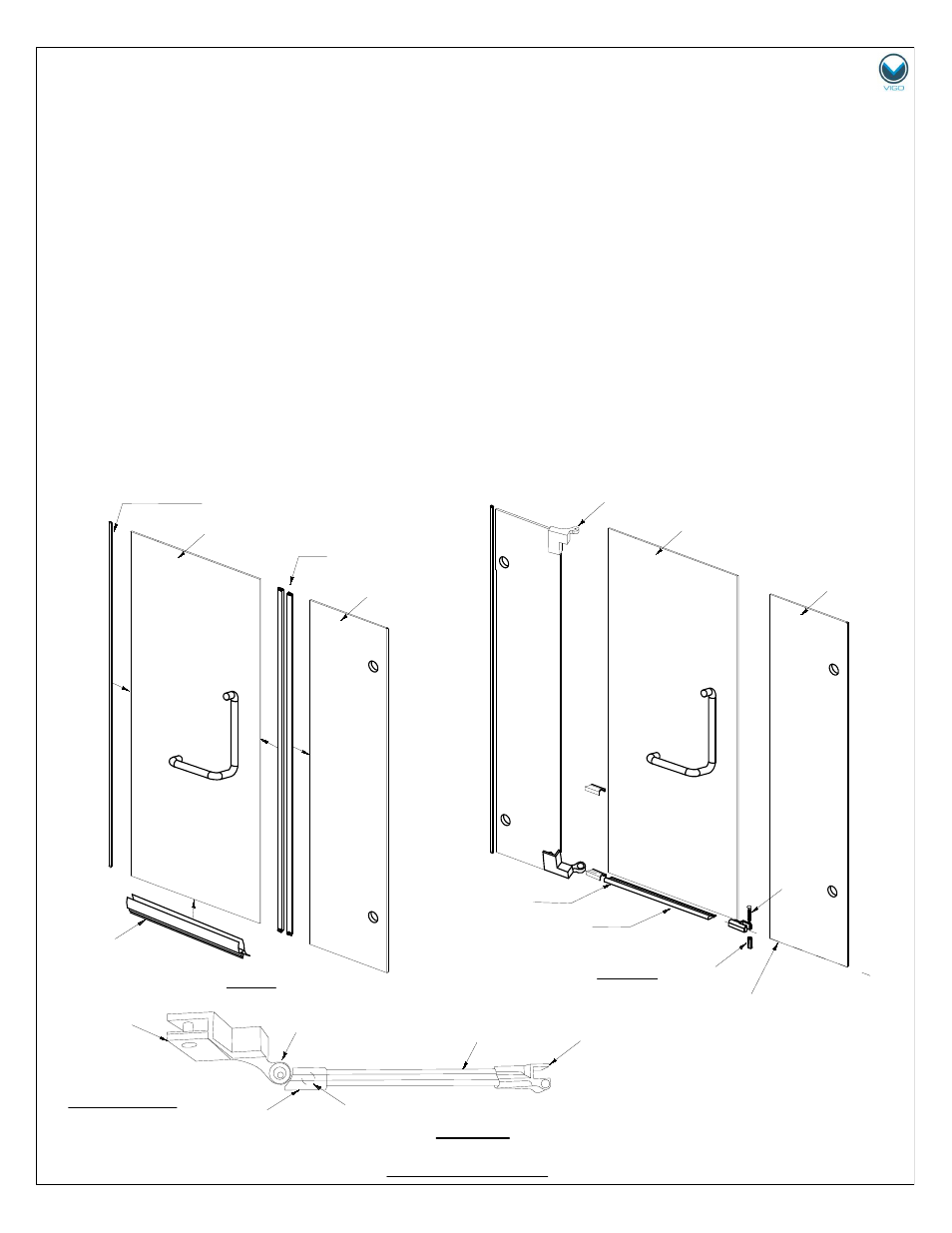

I. INSTALLING THE DOOR THRESHOLD

9 or 12

FIG.10

FIG.9

DOOR THRESHOLD

ALIGNS WITH

SIDE PANEL

TOP VIEW

FIG.10A

VIEW WITH PART

4 REMOVED

1. Measure the distance from side to side under the door and cut the threshold to the proper length.

Note that there are screw holes on both sides of the threshold, this makes the unit reversible. Please
make sure the threshold end with a screw hole (that was not cut off during the sizing process) should

be always placed by the side of hinge base mirrored (#2).

2. Slide the right threshold clip (#25) to the bottom corner of the side panel(#18). Mark a hole on the

floor for the mounting screw. Drill a hole into the floor and insert plastic anchor (#16). Replace the
right threshold clip and screw it into the floor with 1 1/8" phillips screw (#15). Applying silicone

underneath.

3. Slide the right end of the door threshold (#11) into the right threshold clip that has been screwed to

the floor. Place the left threshold end cup (#28) on the left end of the door threshold. Then carefully
align the door threshold and threshold end cup under the door panel. The threshold end cup should
be placed against the turning point of the hinge base mirrored. Make sure the door threshold is in
alignment with the side panel. [SEE FIG.10 AND 10A].

4. Remove the threshold end cup and mark a hole on the floor for the threshold screw. Remove the

door threshold and drill hole into the floor. Insert plastic anchor (#16) into the hole. Replace the door
threshold and screw into the floor with 1

1/8 " phillips screws (#15). Recover the threshold end cup.

SCREW HOLE
