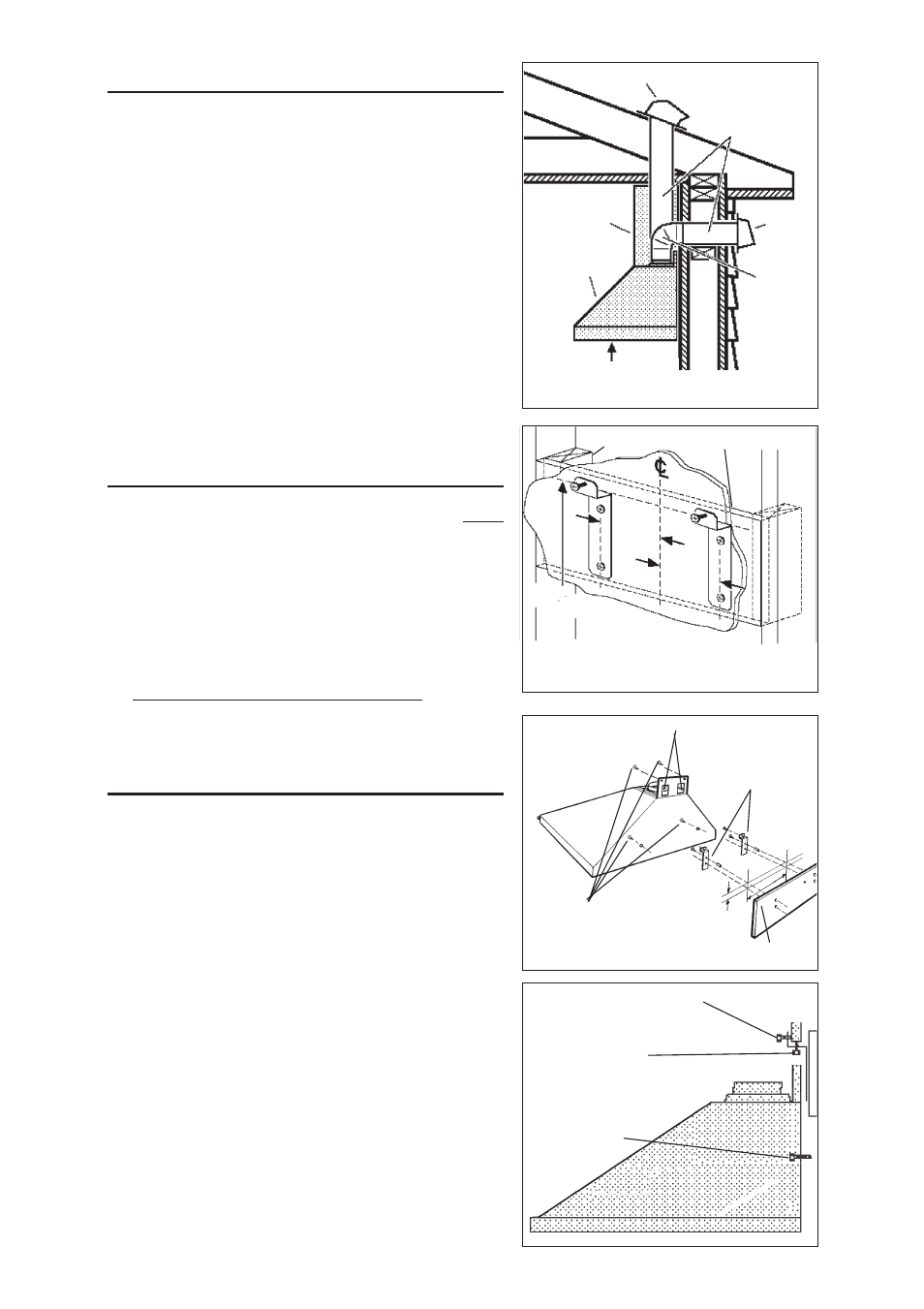

DEPTH ADJUSTMENT
SCREWS
FRAMING BEHIND DRYWALL
WALL FRAMING
MOUNTING
SCREWS
(4.8X38MM)
RECTANGULAR CUTOUTS
MOUNTING
BRACKETS
HEIGHT
ADJUSTMENT
SCREWS
MOUNTING
SCREWS
(4.8X38MM)
38
3 /
16
” to 44
3 /
16
” above cooktop
38 3 /
16
"= bottom of hood 24" above cooktop
44 3 /
16
"= bottom of hood 30" above cooktop
24” TO 30” ABOVE
COOKING SURFACE
ROOF CAP
WALL
CAP
8” ROUND
ELBOW
INSTALL THE HOOD
3. Hang the hood from the brackets through
the rectangular cut-outs on the back of the
hood. Cut-outs are larger than the brackets
to allow for horizontal adjustment.
The bottom of the hood should be 24" to 30"
above the cooking surface.
4. Height adjustment screws provide vertical
adjustment.
5. Depth adjustment screws provide
horizontal adjustment.
6. Secure the hood with (4) mounting screws
(4.8X38mm). Use drywall anchors,
provided, if wall studs or framing are not
available.
INSTALL MOUNTING
BRACKETS
1. Construct wood wall framing that is flush
with interior surface of wall studs.
Make sure:
a) the framing is centered over installation
location.
b) the height of the framing will allow the
mounting brackets to be secured to the
framing within the dimensions shown.
2. After wall surface is finished, secure
mounting brackets to framing using
dimensions shown.
INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only
metal ductwork.
1. Decide where the ductwork will run between
the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most efficiently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use as
few of them as possible.
4. Install a roof or wall cap. Connect 8" round
metal ductwork to cap and work back towards
hood location. Use duct tape to seal the joints
between ductwork sections.
3-3/4”
3-3/4”
HOOD
DECORATIVE
FLUE
8” ROUND
DUCT
