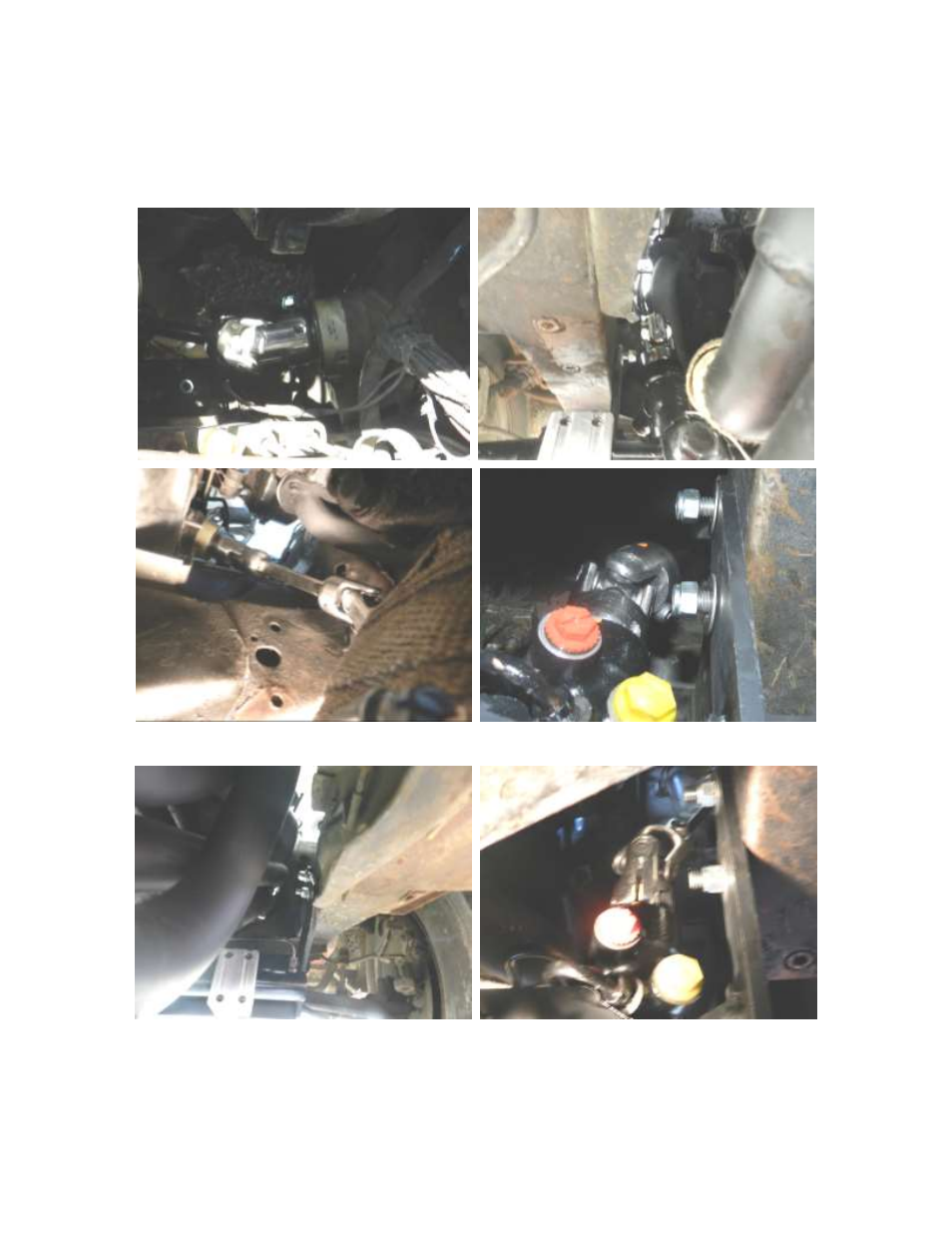

8. Once the rack is in place leave the bolts loose and install the shaft and u-joint from the rack and
pinion to the steering column with the u-joint already on it. Slide the shaft onto the u-joint on the
column and snug the pinch bolt. Run the shaft down to the rack, with the rack u-joint on the shaft,
raise the rack into place to spline the lower joint to the pinion. NOTE: It is important that you phase
the u-joint 90 degrees out or opposite of each other before you install and tighten. Also make sure
that you center your steering wheel before sliding the u-joints together, but do not turn the rack out of
center.
Note: MAKE SURE YOUR RACK AND PINION IS CENTERED AND YOUR STEERING WHEEL IS
RESONABLY STRAIGHT.
9. You can now torque the mounting bolts for your rack to 65 ft. lbs. Then torque the u-joint bolts to 40ft
lbs.
