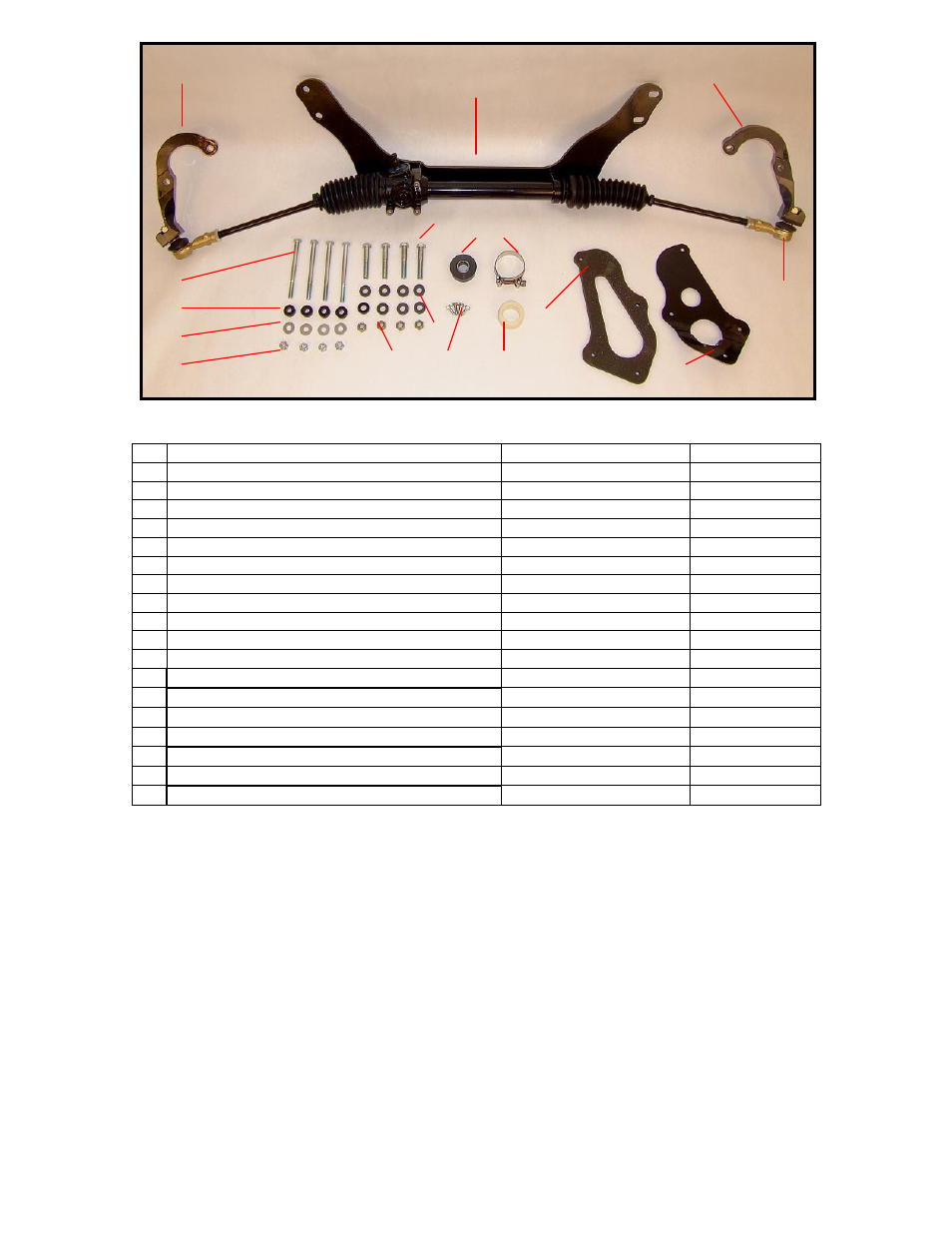

Kit Contents:
# Description Part Number Quantity
1 Rack and Pinion Assembly 8000930-01 1
2 Column Bushing 205890 1
3 Column Support Bracket Screws 231130 4
4 Column Bearing Assembly 205860 1
5 Column Clamp 130340 1
6 Steering Arm ¼” Shim 200970 8
7 Steering Arm Lock Nut 7/16”-20 120620 4
8 Short Steering Arm Bolt 7/16”-20 x 2 ½” 231290 2
9 Long Steering Arm Bolt 7/16”-20 x 3” 231300 2
10 Column Gasket 205840 1
11 Column Support Bracket 8021450 1
12 R&P Bolts 3/8”-16 x 4 ¼” 231210 4
13 R&P Frame Stand Offs 3/8” 205800 4
14 R&P Washer 3/8” 200850 4
15 R&P Lock Nuts 3/8”-16 120490 4
16 Steering Arm (RH) 8021400 1
17 Steering Arm (LH) 8021390 1
18 Outer Tie Rod Ends 10002 2
This kit is designed for 1962- 1967 Chevy II’s and Novas, but the following provisions apply:
BEFORE STARTING YOUR CAR MUST MEET THESE PROVISIONS:
- Small Block Chevy Motor
- Equipped with Hedman Chevy II Headers, Stock Manifolds or Custom Headers
- Stock Front Suspension
- Stock Spindles or aftermarket spindles with detachable steering arms
- Floor shift transmission
- Rear Sump Oil Pan & Pickup
Furthermore, when installing this Rack & Pinion kit, you will need to acquire a new steering
shaft. Unisteer can supply a shaft kit; due to variation in the column there are three kits
available. If you wish to do your own shafting, typically 3 U-joints and a support bearing are
required, the pinion size on the rack is GM 17mm DD. Also an aftermarket column may be
used with this kit or the original column must be modified; instructions on this
modification are included.
2 3
4 5
8,9
10
11
12
13
14
15
16 17
18
