BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-30E-6
MAY, 2011

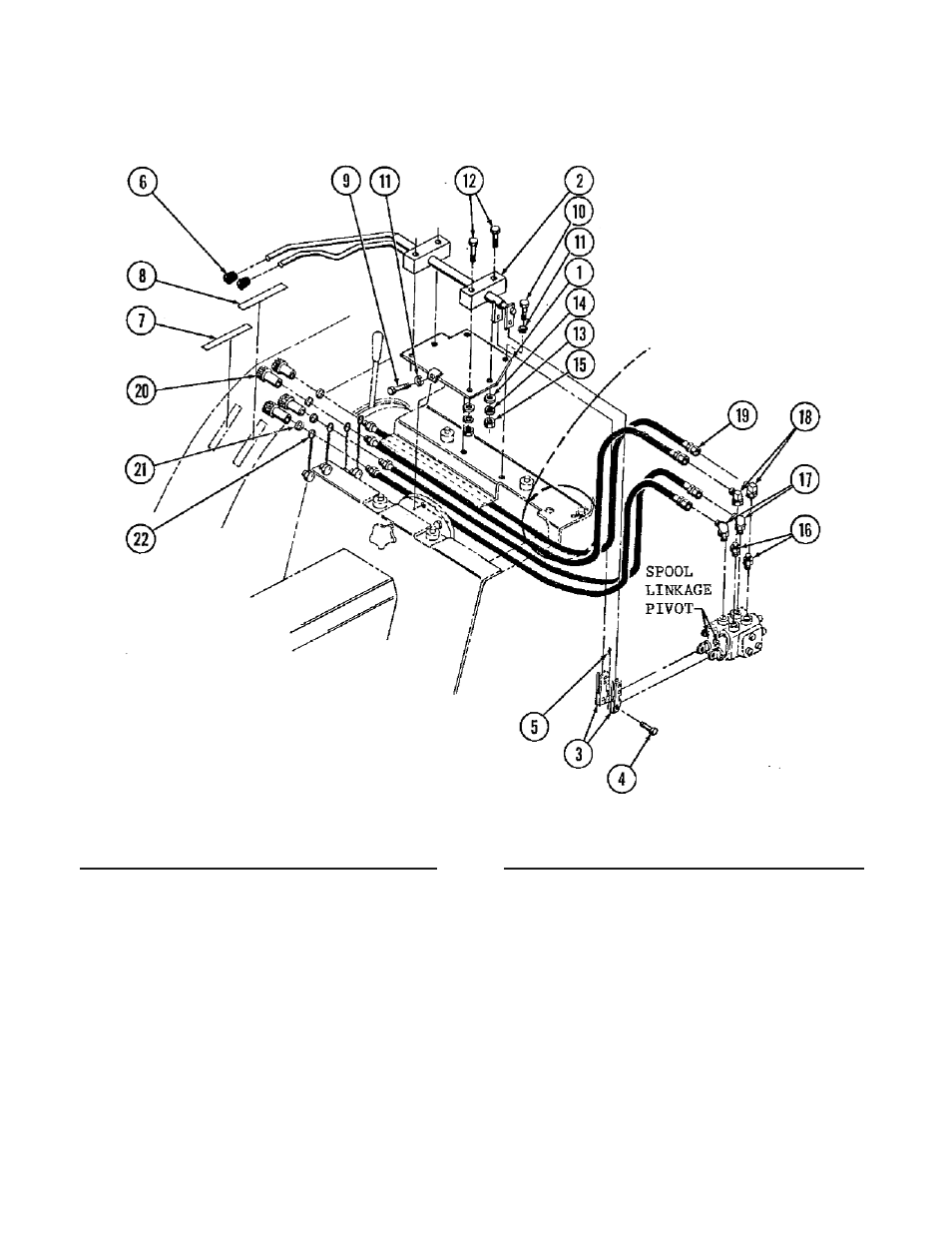

HOSE KIT 2-5584
DEUTZ-ALLIS 5215 SYNCRO SHIFT
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
1 37394 Plate, Lever Mount 1
2 37388 Lever Assembly, Dual 1
3 37397 Linkage, Valve Spool 2
4 6021-32 Pin, Clevis 3/16 x 7/8 6
5 G119117 Pin, Cotter 3/32 x 1/2 6
6 36250 Tip, Rubber 2
7 36856 Decal, Remote 1
8 36857 Decal, Remote w/ Float 1
9 6090-75 Capscrew M10-1.25 x 35 1
10 6090-33 Capscrew M10-1.25 x 25 2
11 G120383 Lockwasher 7/16 3
12 G180034 Capscrew 1/4-20 x 1-1/2 4
13 G120380 Lockwasher 1/4 4
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
14 G120392 Flatwasher 1/4 4
15 G120375 Hex Nut 1/4-20 4
16 36249-1 Fitting Straight 9/16 JIC x 3/8 BSPP 2
17 36248-1 Fitting Elbow 9/16 JIC x 3/8 BSPP 2
18 34128-3 Fitting Elbow 9/16 JIC x 9/16 JIC 2
19 36251-1 Hose 1/4 x 18 4
20 6147-1 Coupler, Female Quick 4
21 36240-5 Band, Spiral Blue 2
36240-6 Band, Spiral Red 2
36240-7 Band, Spiral Yellow 2
36240-8 Band, Spirol Green 2
22 4836-6 Plug, Dust 4
