BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-30B-4
MAY, 2011

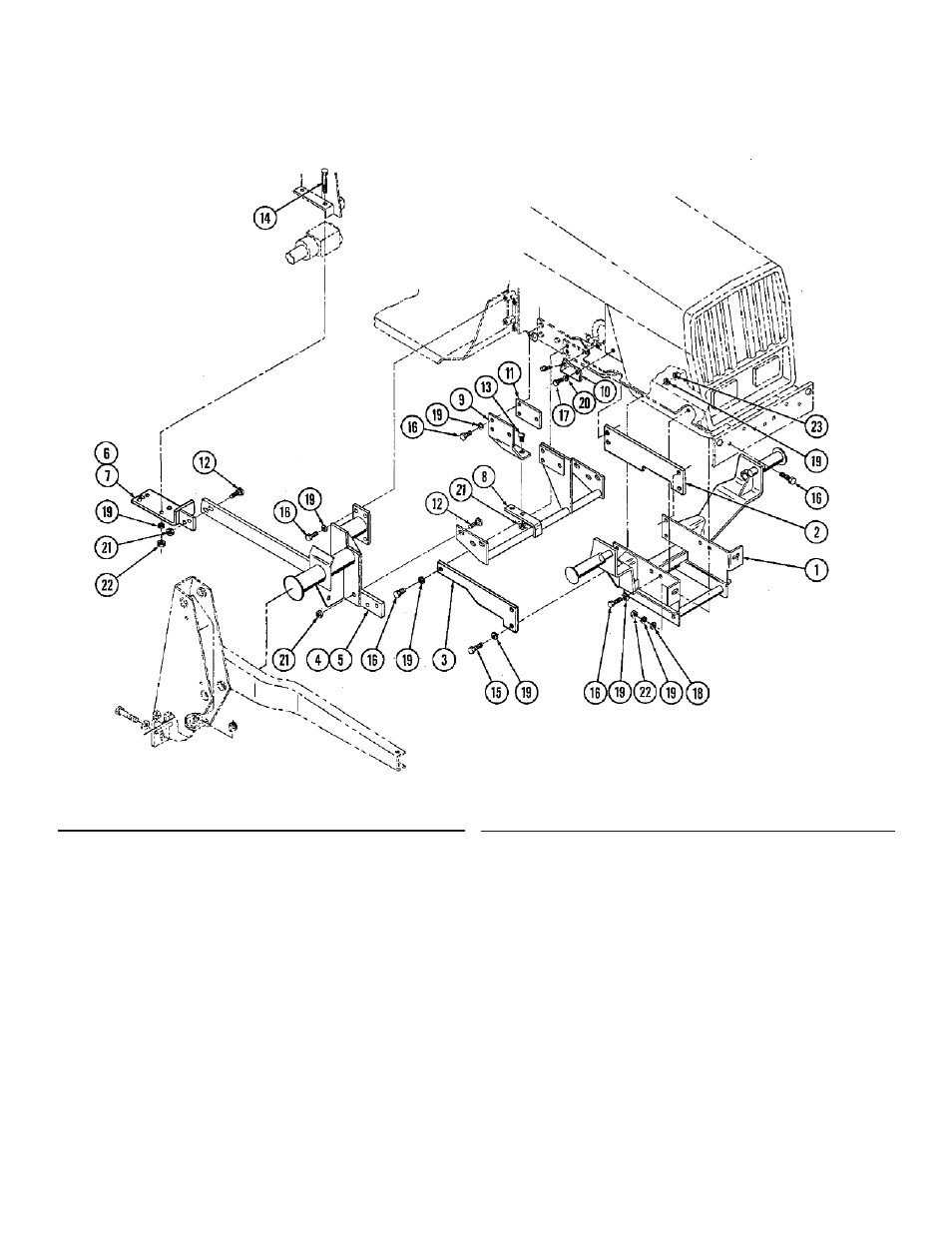

MOUNTING KIT 2-5581
Deutz-Allis 5215
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
1 37130 Bracket, Front Mounting 1
2 37979 Plate, Frame Reinforcement, Left 1
3 38722 Plate, Frame Reinforcement, Right 1
4 37132-1 Bracket, Mid Mounting, Left 1
5 37132-2 Bracket, Mid Mounting, Right 1
6 37118-1 Bracket, Rear Mounting, Left 1
7 37118-2 Bracket, Rear Mounting, Right 1
8 37982 Bracket, Mid Crosstie 1
9 37974 Bracket, Mid Support, RH 1
10 38723 Bracket, Coolant Valve Relocation 1
11 37976 Spacer, 5/16 1
12 ------- Bolt, Carriage, 1/2-13 X 1-3/4 10
REF. PART DESCRIPTION QTY.
NO. NO. REQ’D.
13 ------- Bolt, Carraige, 1/2-13 X 1-1/4 2
14 ------- Capscrew, 1/2-13 X 6, Grade 8 8
15 ------- Screw, Metric Cap, M12-1.50 X 45 4
16 ------- Screw, Metric Cap, M12-1.50 X 35 23
17 ------- Screw, Metric Cap, M8-1.25 X 20 1
18 ------- Flatwasher, 1/2 2
19 ------- Lockwasher, 1/2 35
20 ------- Lockwasher, 3/8 1
21 ------- Lock Nut, 1/2-13 12
22 ------- Hex Nut, 1/2 13 8
23 ------- Nut, Metric, M12-1.50 10
