Impact doorlite installation – Therma-Tru SHOP 3 Door Preparation - U1 Revised User Manual
Page 40
Door
Preparation
3.40
2014 (U1 REVISED)
Shop 3

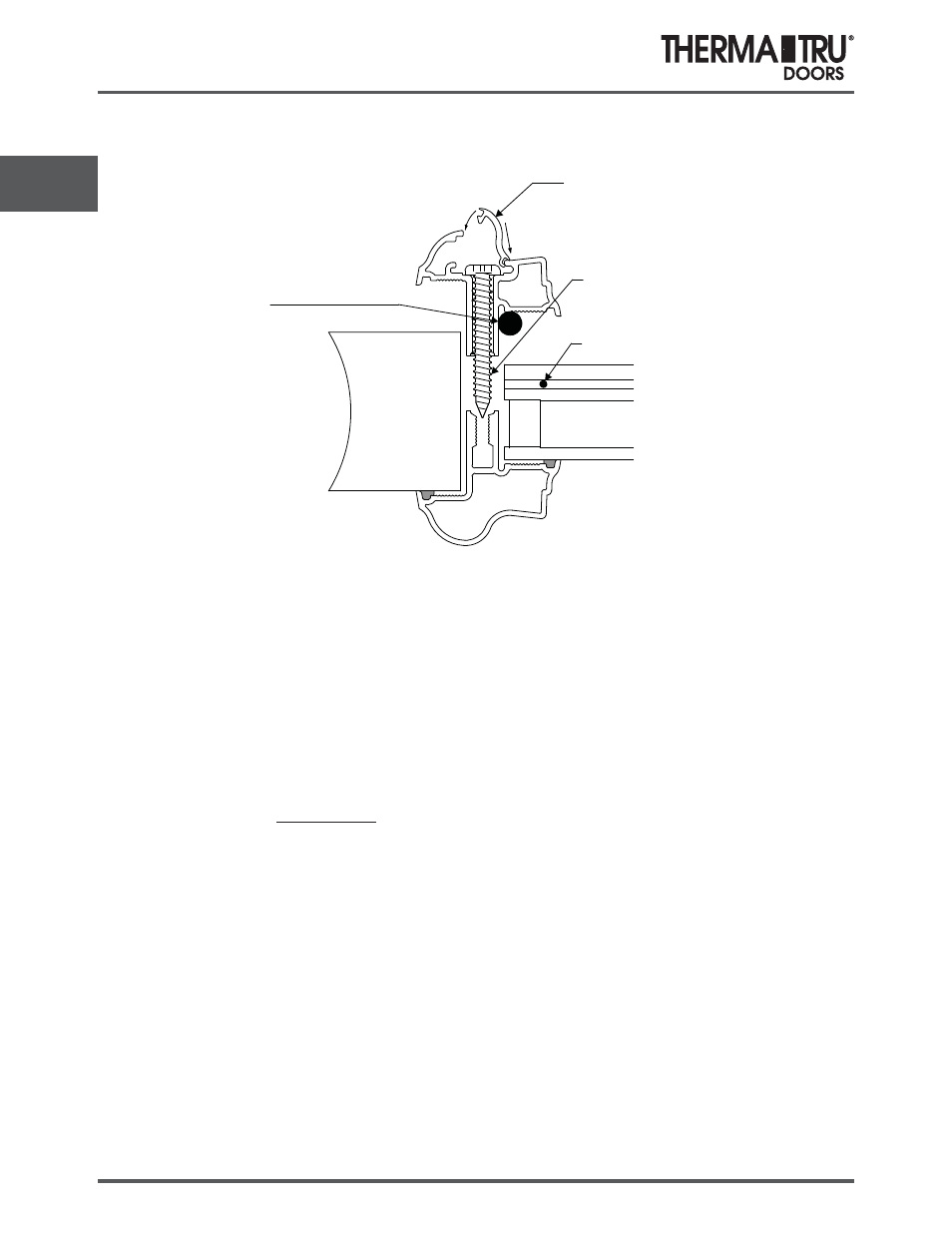

Impact Doorlite Installation
Door Shop
Applied
1/4” Bead
Dow 995
Structural Sealant
The
must be wet glazed to door slab and insulated glass
unit as shown with Dow 995 structural sealant. Minimum 1/4” beads are
required.
Assemble with #10 x 1-1/2” pan head screws. Screws to be tightened at 70
in. lbs.
Laminated glass must be facing the interior frame and the structural
sealant.
interior frame only
NOTE:
Door
Interior Frame
Exterior Fram e
# 10 x 1-1/2 ”
Panhead Screw
Sna p-in Screw
Channe l Cover
1
2
Laminated Glass
SCREW CHANNEL COVERS:
(1) Place short side of miter to inner edge of frame.
(2) Rotate cover down snapping long side of miter into place.
NOTE: Fine tuning of lengths may be needed to acquire optimal fit.
