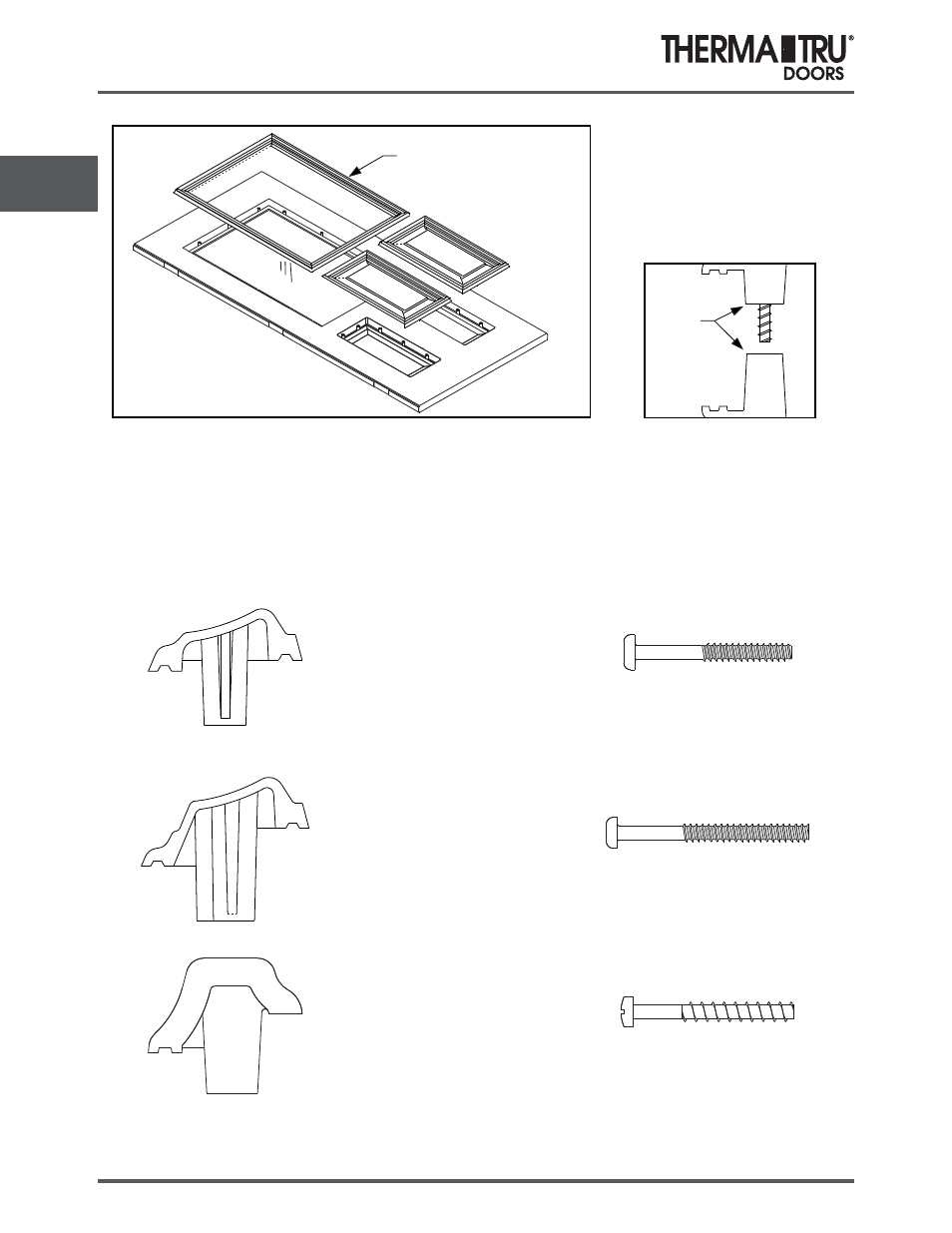

Door
Preparation
3.36
2014 (U1 REVISED)
Shop 3
Doorlite & Designline
Panel Installation
Position Interior Sides
of Frames and Panels
Ensure correct alignment of
screw bosses.
Align
bosses
.
Interior lite frame/panel
Select the Right Screw
Use the correct screw with the appropriate lite frame. (Fasteners are shown actual size.)
For this lite
Use this fastener
Classic-Craft Doorlite
(for molded opening)
Classic-Craft Doorlite
(for surface mount)
Fiber-Classic Doorlite
Smooth-Star Doorlite
Steel Doorlite
Part # SCDL000
Part # SCSMC750
Part # SCSMCL
NOTE: When installing multiple lites, use a straight edge to
check alignment of lites before securing in place.
