Therma-Tru SHOP 3 Door Preparation - U1 Revised User Manual

Page 18

background image

Door
Preparation

3.18

2014 (U1 REVISED)

Shop 3

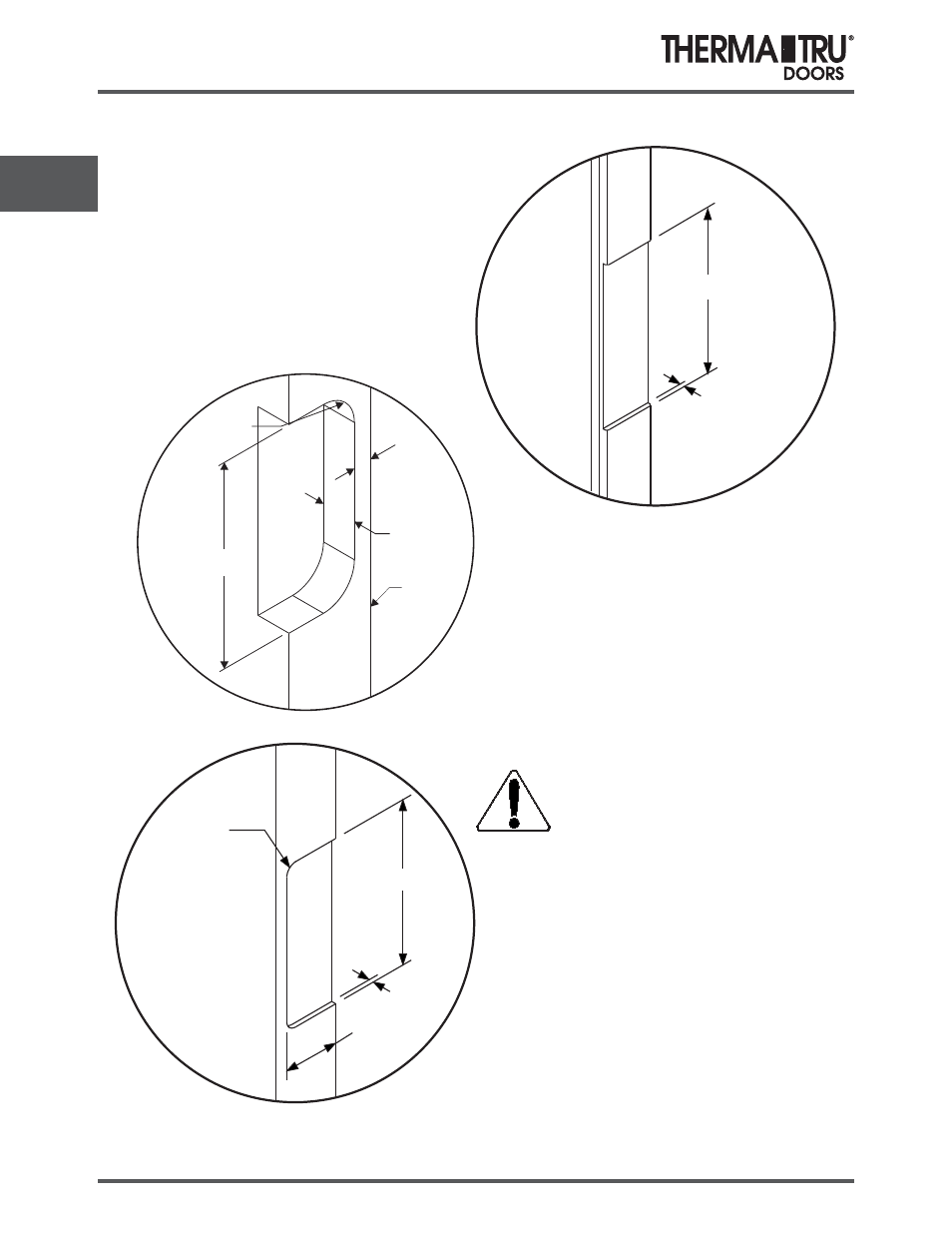

Hinge Preparation
(Except 90 Minute Steel Fire Door)

Mark and Cut Mortises

Use a special-purpose machine or a
router and template.

4.015”

.112”

R .625”

or

R.250”

4.015”

.112”

1.375”

Pass-Through

Full Mortise

CAUTION:
Full mortises require pilot holes only
if door has hardwood stiles. Refer to
SHOP 3 - Hinge Installation,
for instructions.

Adjustable

Door
Edge

3.654”

R .625”

.625”
Deep

.354”
