Smooth-Star
Door Panel
Dimensions
Comp 5 2014 (U1 REVISED) 5.5
6/8 Smooth-Star Doors
Daylight Opening: 18-29/32" x 62-29/32"
(2064) (1189 sq.in.)
Daylight Opening: 20-15/16" x 62-15/16"
(2264) (1317 sq.in.)
A
B C G
F
E
D
Note:
For Optional Grille
Locations, See Arch 1.

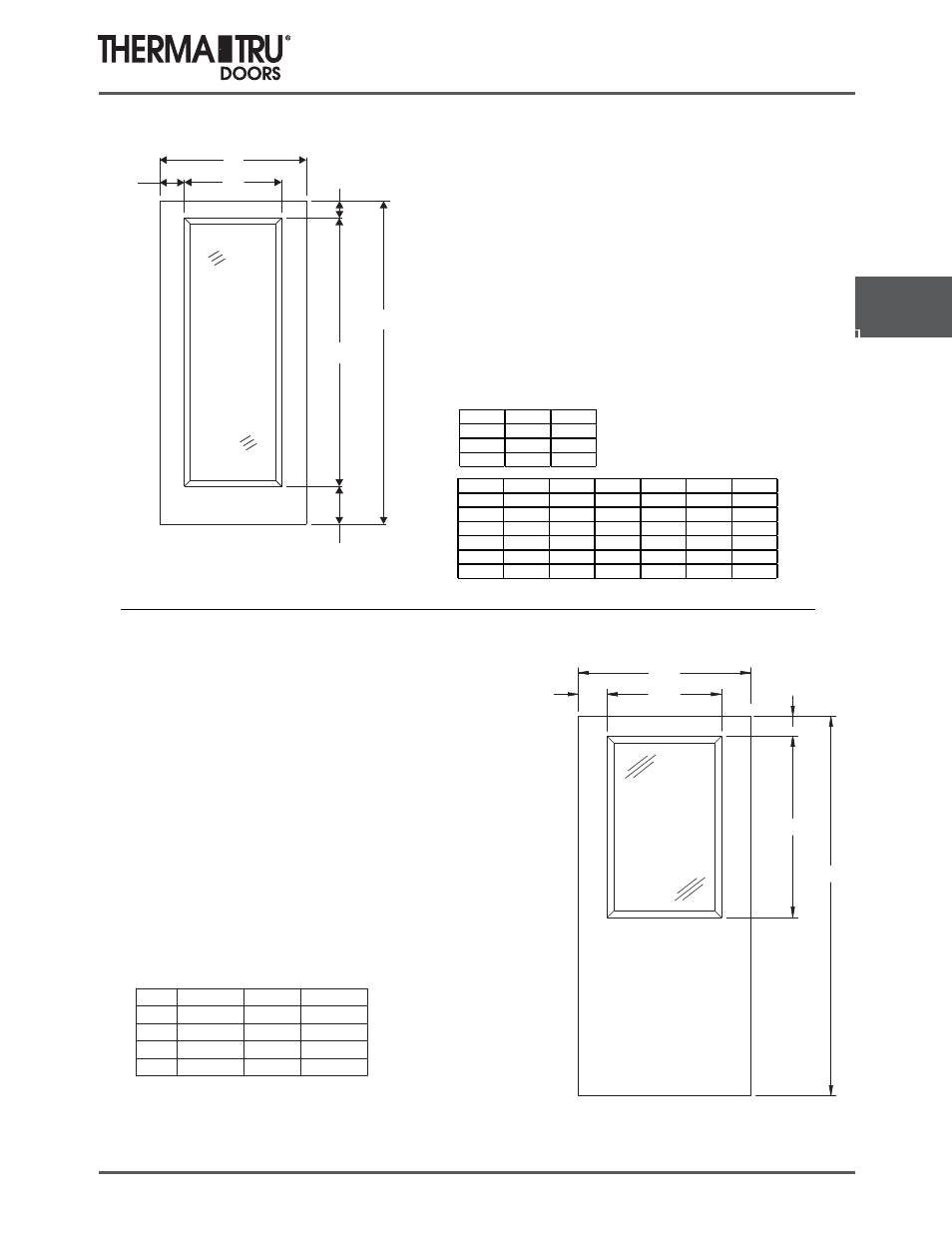

Full Lite Flush
(Impact - 140H, 141H, 1464H)
(108N, 118N, 128N, 1664, 2064, 2264)
(108, 118, 128, 916, 2264)
(Slab-SS010U1)
(Impact-SS010HU1)
Daylight Opening: 12-13/16" x 62-13/16"
(1464) (805 sq.in.)
Size A B C D (6/8) D (6/6) E
*2/0 23-13/16" 4-1/32" 15-3/4" 9-9/64" 6-13/16" 65-3/4"
*2/4 27-13/16" 4-31/32" 17-7/8" 9-1/64" 6-11/16" 65-7/8"
2/6 29-13/16" 3-31/32" 21-7/8" 9-1/64" 6-11/16" 65-7/8"
2/8 31-13/16" 3-31/32" 21-7/8" 9-1/64" 6-11/16" 65-7/8"
2/10 33-13/16" 4-31/32" 23-7/8" 9-1/64" 6-11/16" 65-7/8"
3/0 35-13/16" 4-31/32" 23-7/8" 9-1/64" 6-11/16" 65-7/8"
*Impact slab not available.
Height F G
*6/6 76-23/32" 4-5/32"
6/8 79-3/64" 4-5/32"
7/0 83-3/64" 7-1/2"
B C
4-5/32"
37-29/32"
A
79-3/64"
Half Lite Flush
(Glass - 2236, 104, 137) (2036, 104N)
(Impact Glass - 104H)
(Slab - SS010U1)
(Impact Slab - SS010HU1)
Size A B C
2/6 29-13/16" 3-31/32" 21-29/32"
2/8 31-13/16" 3-31/32" 23-29/32"
2/10 33-13/16" 4-31/32" 23-29/32"
3/0 35-13/16" 5-31/32" 23-29/32"
Daylight Opening: 20-29/32" x 34-29/32"
(2236) (729 sq.in.)
Daylight Opening: 19-1/8" x 35-1/8"
(2036) (672 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
