Smooth-Star
Door Panel
Dimensions
Comp 5 2014 (U1 REVISED) 5.35
6/8 Smooth-Star
Noise Reduction Doors
A
B C E
G
D
F

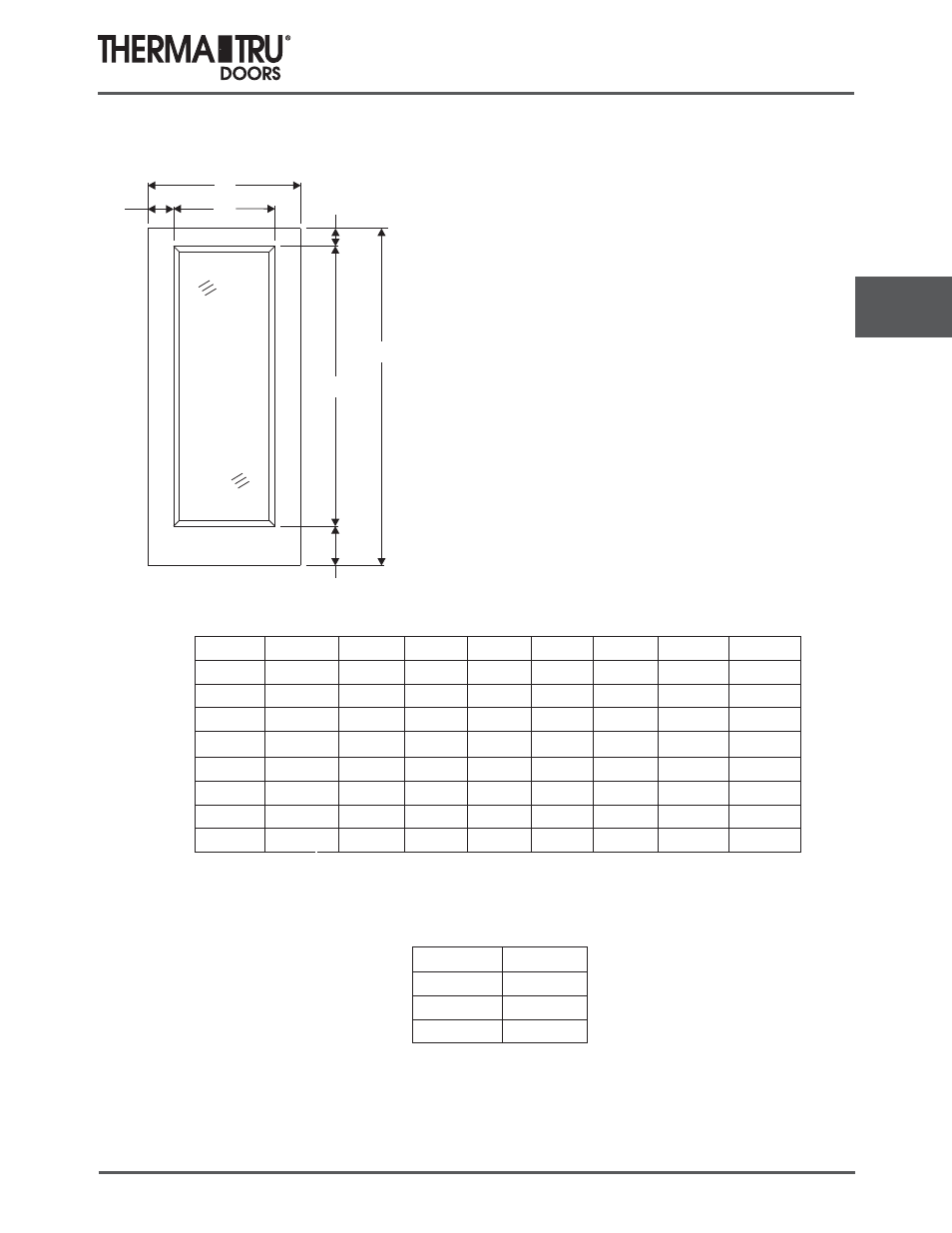

Full Lite Flush
(2064, 2264)
(Slab - S010STCU1, SP010STCU1)
(Slab - S7010STCU1)
Size A B C D E 6/8 F 6/6 F 7/0 F
2/6 29-13/16” 3-31/32” 21-7/8” 65-7/8” 4-5/32” 9-1/64” 6-21/32” 13-1/16”
2/6 EC 29-13/16” 3-31/32” 21-7/8” 65-7/8” 3-1/32” 10-9/64” N/A N/A
2/8 31-13/16” 4-31/32” 21-7/8” 65-7/8” 4-5/32” 9-1/64” 6-21/32” 13-1/16”
2/8 EC 31-13/16” 4-31/32” 21-7/8” 65-7/8” 3-1/32” 10-9/64” N/A N/A
2/10 33-13/16” 4-31/32” 23-7/8” 65-7/8” 4-5/32” 9-1/64” 6-21/32” 13-1/16”
2/10 EC 33-13/16” 4-31/32” 23-7/8” 65-7/8” 3-1/32” 10-9/64” N/A N/A
3/0 35-13/16” 5-31/32” 23-7/8” 65-7/8” 4-5/32” 9-1/64” 6-21/32” 13-1/16”
3/0 EC 35-13/16” 5-31/32” 23-7/8” 65-7/8” 3-1/32” 10-9/64” N/A N/A
EC - ELEVATED CUTOUT 6/8 HEIGHT ONLY
Height G
6/6 76-23/32”
6/8 79-3/64”
7/0 83-3/64”
Note:
For Optional Grille Locations,
See Arch 1.
Daylight Opening: 20-15/16" x 62-15/16"
(2264) (1317 sq.in.)
Daylight Opening: 18-29/32" x 62-29/32"
(2064) (1252 sq.in.)
