Gamma Corrections
C-2 5975607 BARCODATA 808s 170397
To carry out the Red and Blue Midlights Correction :
•
Push the control stick forward or backward to highlight the item
R & B MIDLIGHTS in the menu and then press the key.
If the key is pressed, the projector will return to the Service
menu.
•
After the key is pressed, a text box with the message
"Adjust with arrow key", will be displayed on the screen.
•
Push the control stick forward or backward to adjust the Red
Midlights, a text box with a bar scale (0-16) will be displayed to
visualize the magnitude of the correction.
•
Push the control stick to the left or to the right to adjust the Blue
Midlights, a text box with a bar scale (0-16) will be displayed to
visualize the magnitude of the correction.
•
Press the key to return to the "Gamma Corrections"
menu.
GAMMA CORRECTIONS
BLUE GAMMA CORRECTION
Adjust slope with é or ê
Breakpoint with ç or è
R & B MIDLIGHTS
Adjust red with é or ê
blue with ç or è
FACTORY PRESET
Select with é or ê
then ;
TO RETURN.
To set the parameters back to the factory preset values :
•
Push the control stick forward or backward to highlight the item
FACTORY PRESET in the menu and then press the
key.
•
Press the key to return to the Service menu.
GAMMA CORRECTIONS
BLUE GAMMA CORRECTION
Adjust slope with é or ê
Breakpoint with ç or è
R & B MIDLIGHTS
Adjust red with é or ê
blue with ç or è
FACTORY PRESET
Select with é or ê
then ;
to return.

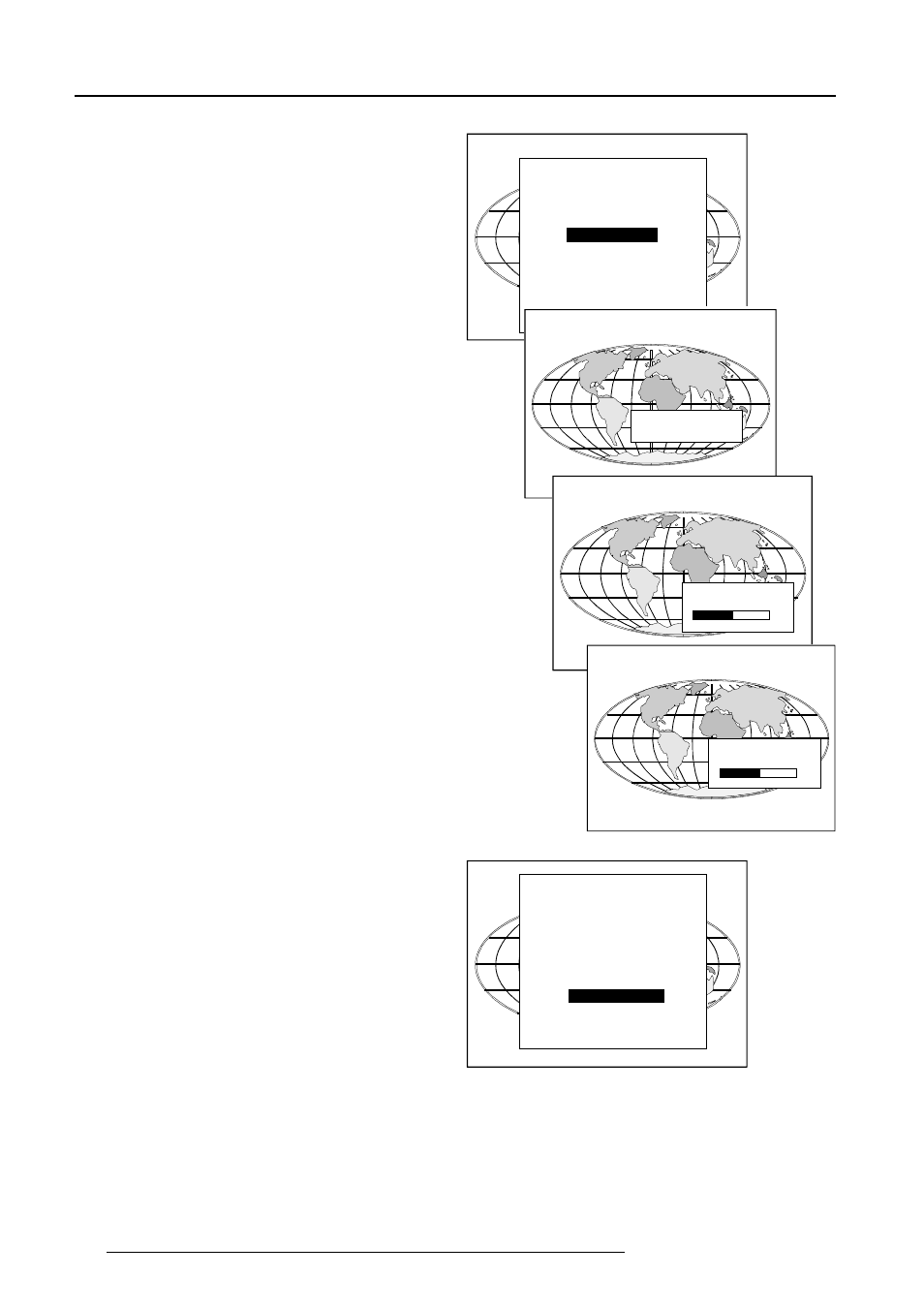

Adjust with arrow key
8
RED
MIDLIGHTS
8
BLUE
MIDLIGHTS
