Installation adjustment mode
8-2 5975607 BARCODATA 808s 120397

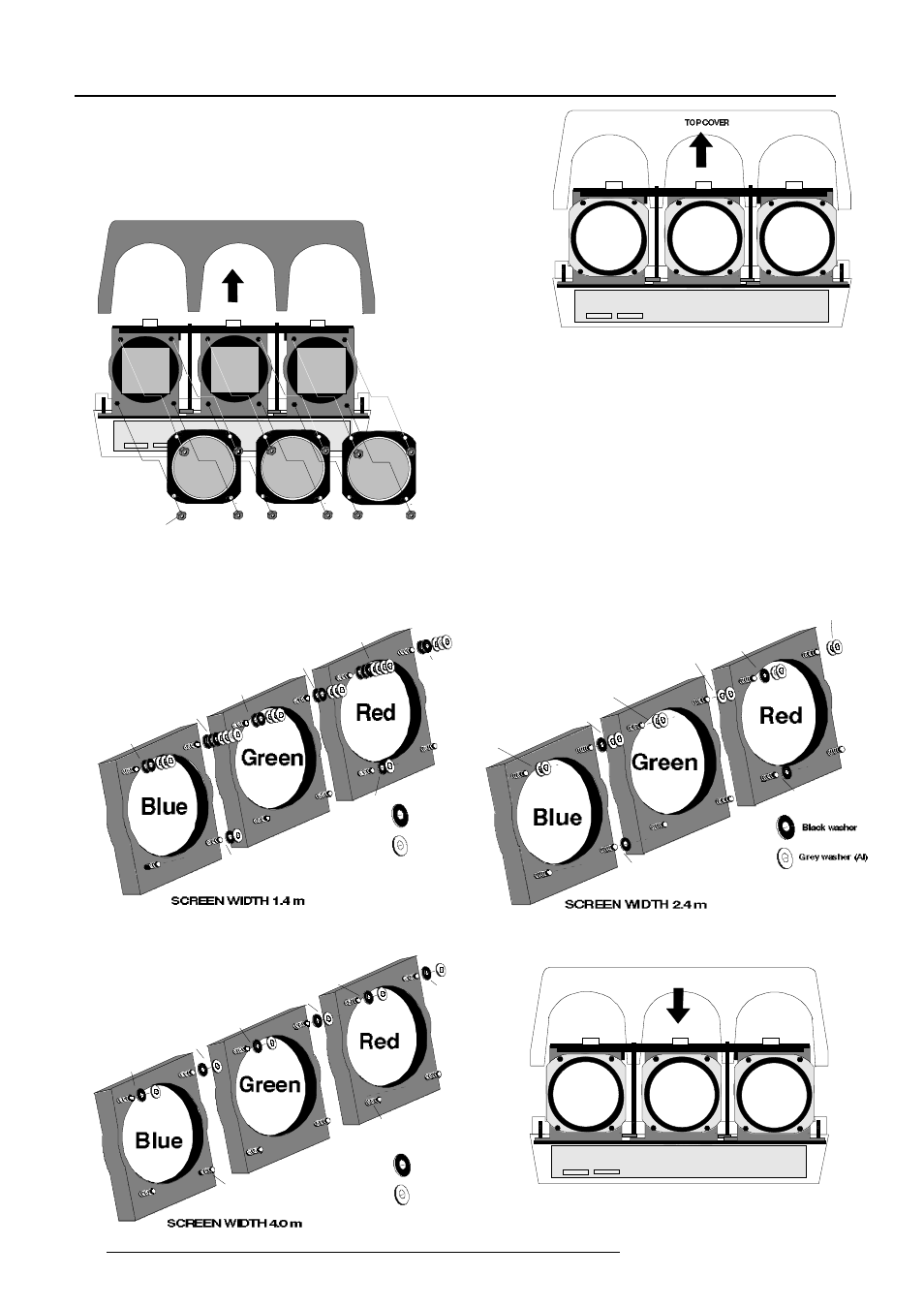

Adaptation procedure :
1. Open and remove the top cover
UPQÃ8PW@S
L E N S E S
L e n s n u t
2. Remove the lenses by :
- remove for each lens the 4 nuts, holding lens to picture tube
support (nutdriver 8 mm).
- remove the lens from the bolts
3. Placing the required washers :
a) optimal focus in the screen width range 1.20 m - 1.90 m
B r’Ðh†ur Ã6y
7yhpxÐh†ur
4xGr
3xBl
3xGr
2xBl
3xGr
2xBl
3xGr
2xBl
4xGr
3xBl
3xGr
2xBl
1xGr
1xBl
1xGr
1xBl
b) optimal focus in the screen width range 1.90 m - 3.20 m
2xGr
2xGr
1xBl
2xGr
2xGr
2xGr
1xBl
2xGr
1xBl
1xBl
B r’Ðh†ur Ã6y
7yhpxÐh†ur
1xGr
1xBl
1xGr
1xBl
1xGr
1xBl
1xGr
1xBl
1xGr
1xBl
1xGr
1xBl
0xGr
0xBl
0xGr
0xBl
c) optimal focus in the screen width range 3.20 m - 6.00 m 4. Reinstall the lenses and secure the lenses with the available nuts.
TO P CO VER
