Installation setup

4-4

5975607 BARCODATA 808s 170397

To check the current positions of the scan switches,

proceed as follows:

Attention : This procedure can only be done after power (mains)

connection. So, first continue with the projector setup

and the connections and then return to this procedure.

Switch on the projector. The projector starts up on the last
selected source.

Press the key.

Highlight 'SERVICE' by pushing the control stick forward or
backward and press the key: the 'SERVICE MODE

MENU' will be displayed.

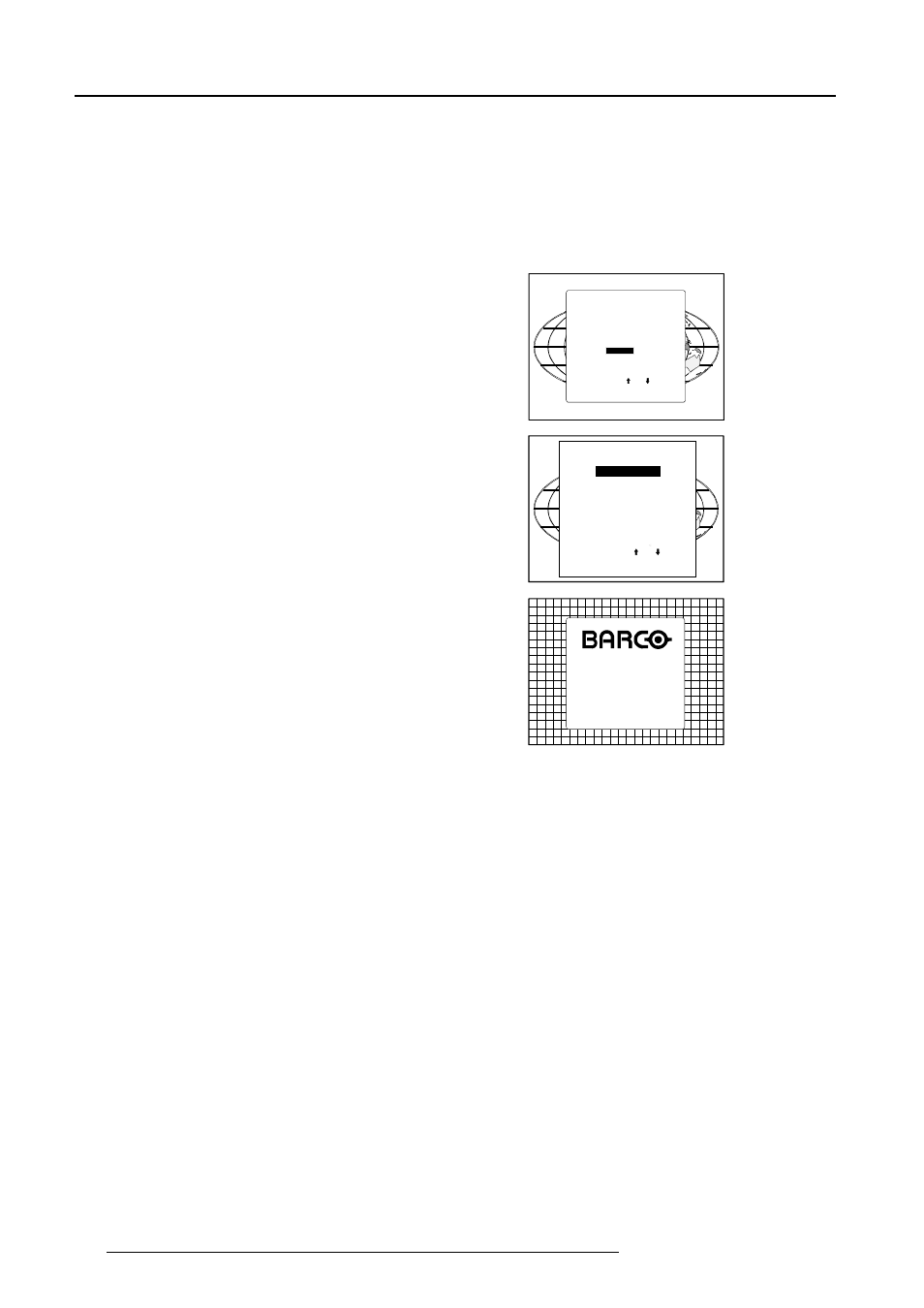

SERVICE MODE

IDENTIFICATION

COPY A BLOCK

DELETE A BLOCK

DELETE ALL BLOCKS

CHANGE PASSWORD

CHANGE LANGUAGE

RUN TIME

DYNAMIC ASTIGMATISM

MORE...

ADJUSTMENT MODE

Select a path from
below:

Select with or
then
to return

source 1

GUIDED

RANDOM ACCESS

INSTALLATION

SERVICE

IRIS

Select with or
then
to return

Highlight 'IDENTIFICATION' by pushing the control stick forward
or backward and press the key.

The projector will display the 'IDENTIFICATION SCREEN'.

This screen gives the current information about the projector

configuration in the line entitled 'Config'.

All projectors leave the factory set for a ceiling/front configuration.

BS6QCD8TÃ''

Proj. address : 001
Soft. Version : 5.00
Config. : Ceiling
front
Baudrate PC : 9600
Text : ON
Serial No. : 10359852
