3. DVR ORGANIZATION

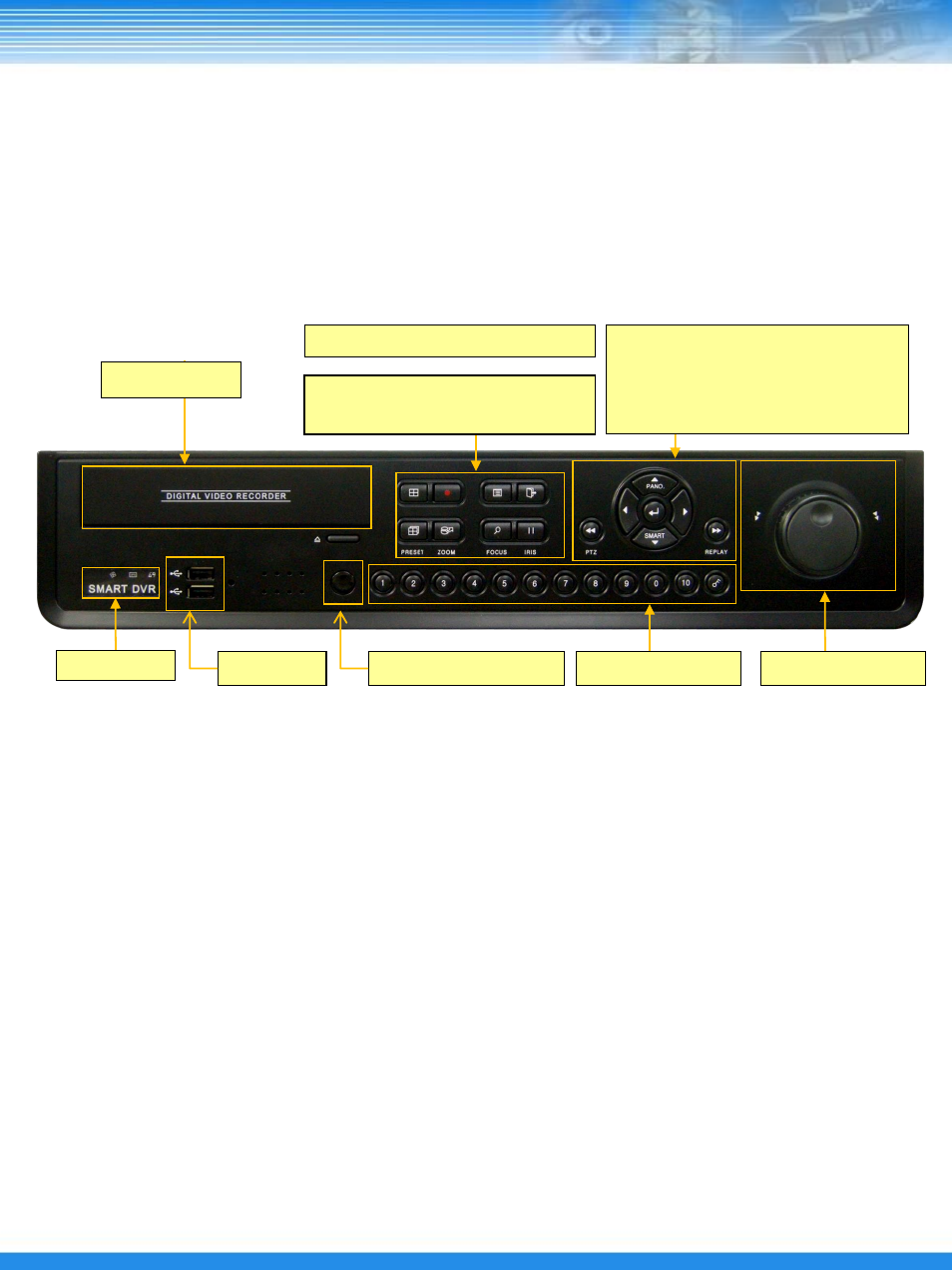

3.1 Front Panel Description
NOTE: Turn on the DVR after connecting the power cord, camera input and monitor completely
▪ DRSDI-1641 / 841
DVD
Display/Recording Menu/ESC
Direction Key ▲ (Panorama layback)
Direction Key ▼ (Smart playback)
Enter key
Fast reverse play button << (PTZ)
Fast play button >> (REPLAY)
ROTATE/Backup Search/Pause
(Preset/Zoom) (Focus/Iris)
USB Port
Status LED
Jog Shuttle
Number button
Remote controller IR
