28
Regency ® P121-2/P121LC-2/P121RC-2/P131-2 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
Fig.3
17) Reverse steps 4) to 1).
18) Attach the label "This unit has been
converted to LPG" near or on top of the
serial # decal.
19) Replace yellow "NG" label with red "LPG"
label.
WARNING!
Do not over tighten the screw.
Recommended to
grip the wrench by the short side.

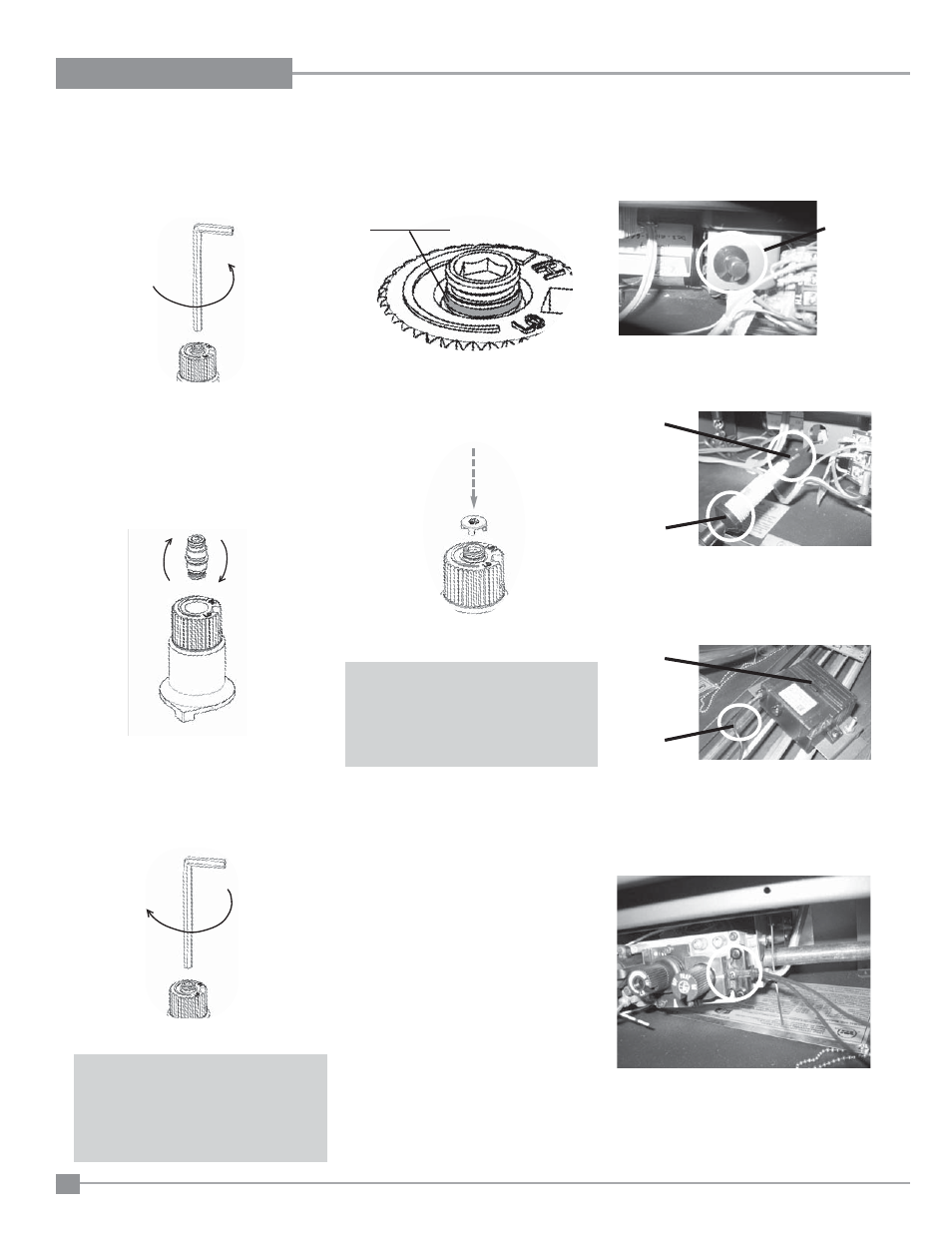

11) Insert a 5/32” or 4mm Allen wrench into
the hexagonal key-way of the screw
(Fig. 2), rotate it counter-clockwise until it
is free and extract it.
12) Check that the screw is clean and if
necessary remove dirt.
13) Flip the screw (Fig. 3).
14) Using the Allen wrench as shown in Fig.4,
rotate the screw clockwise until snug, do
not overtighten.
Fig.2
Fig.4
15) Verify that if the conversion is from NG
to LPG, the screw must be re-assembled
with the red o-ring visible (Fig. 5).
16) Re-assemble the black protection cap
(Fig. 6).
WARNING!
Also check that the pilot and
main burner injectors are
appropriate for the gas type.
LPG Configuration
Red o-ring visible
Fig.5
Fig. 6
Installation of the DC Sparker:
20) Locate the Piezo Ignitor situated at the
side of valve.
21) Remove the Piezo Ignitor by unscrewing
the nut at the back of the mounting
bracket.
22) Disconnect the ignitor wire from the Piezo
Ignitor and connect it to the D.C. Sparker.
Piezo
Ignitor
Ignitor
Wire
Piezo
Ignitor
Ignitor
Wire
DC
Sparker
23) Connect the DC spark generator wires
to the SIT Valve with the screw, which is
provided in the kit.
