26

L540E-2 / HZI540E-2 Direct Vent Gas Insert

INSTALLATION

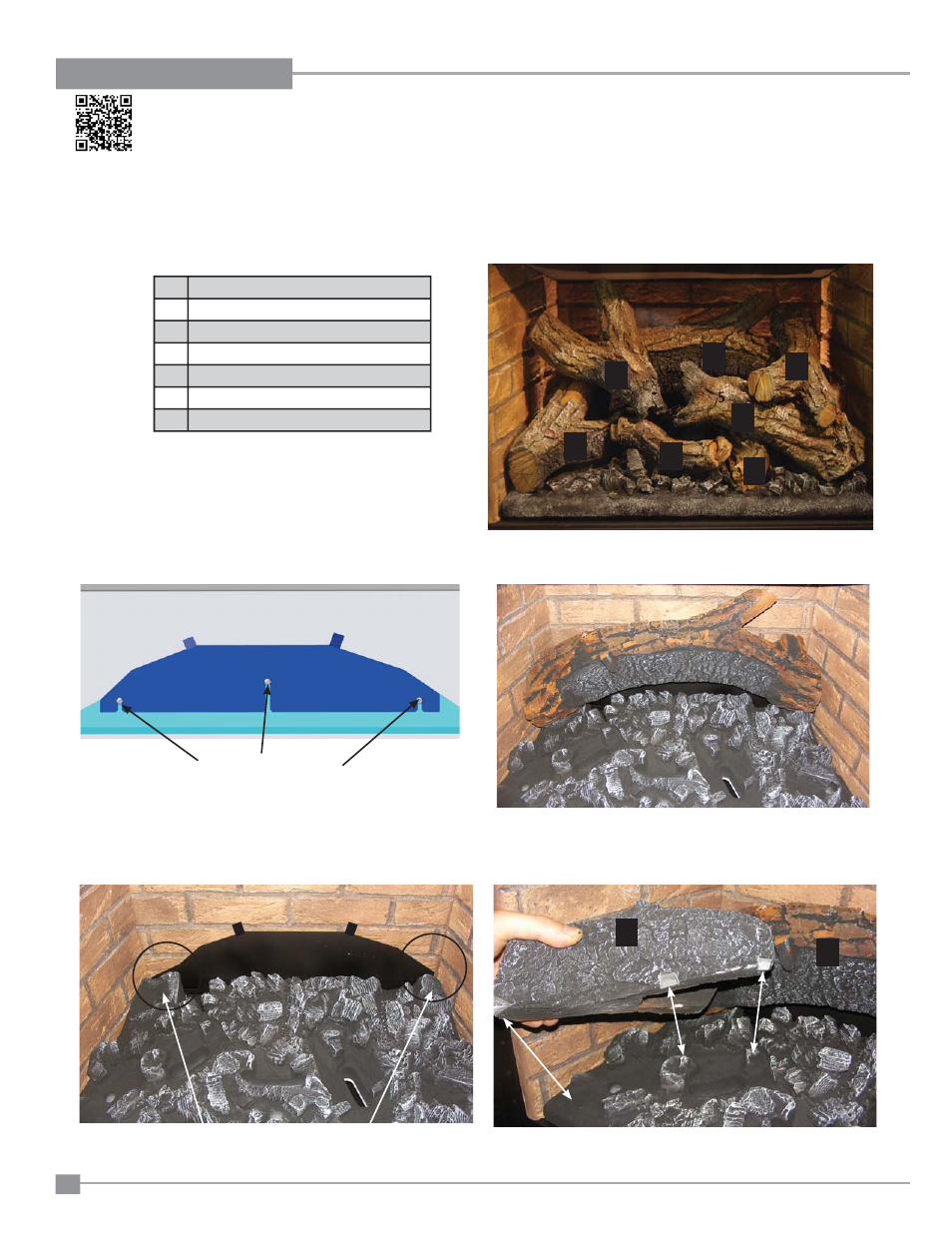

L540E LOG SET INSTALLATION

3) Identify Log 1 provisions on the rear left and right of burner in unit -

see below.

5) Locate the provision on the base of Log 2, place log on burner - see

below.

4) Place Log 1 so it is positioned perpendicular to the fl oor - see below.

Log 1 provisions on burner tray

Log 1 in position

Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken
logs can interfere with pilot operation.

Improper positioning of the logs may create carbon build-up and can alter the unit's performance which is not covered under warranty.

*For Touch Ups: Satin Black paint is included for burner, and Dark Brown Paint is included for log set..

1

Rear Back Log

2

Left Side Log

3

Right Front Log Piece

4

Left Front Log Piece

5

Right Front Log

6

Right Cross Log

7

Left Upright Log

1

2

3

4

6

7

5

2

1

Screw Locations

Top Bracket

Top Bracket installed

NG only

Important: FOR NG UNITS ONLY

A top bracket must be installed prior to installing the log set.

1) Loosen 3 screws on the bottom bracket (see below for location).

2) Slide the top bracket over the screws, retighten the screws.

L540E Log Set up Video
