8

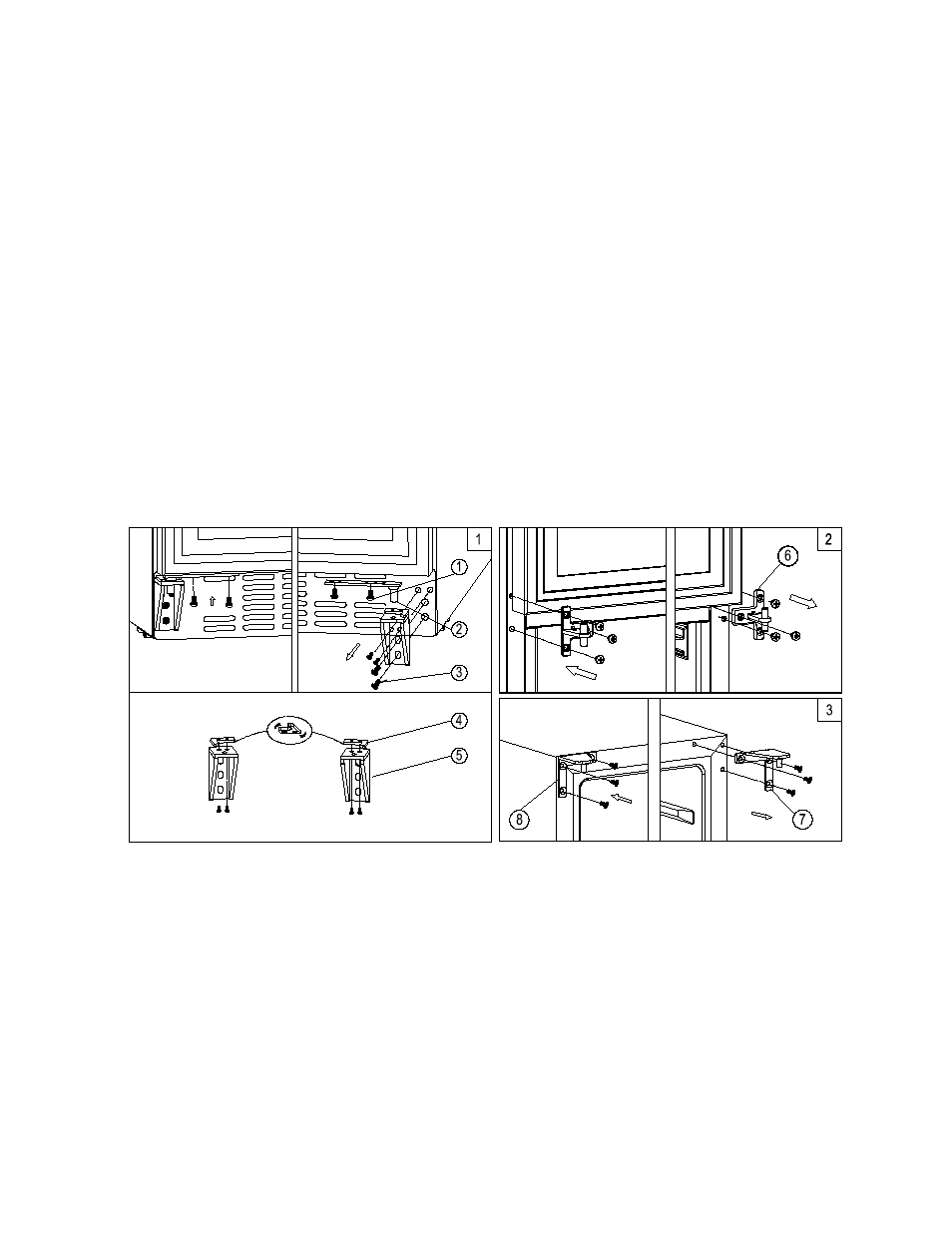

1. Remove the bottom hinge 2 by unscrewing the four lock screws 1. Be careful to hold the door firmly
after removing the screws. (Fig. 1)
2. Gently pull down to remove the door from the right top hinge and place it on a padded surface to
avoid the risk of damage. Then remove the right top hinge 7. (Fig. 2 & 3)
3. Unscrew and transfer pins 4 and 3 of the hinge plate to the opposite side. (Fig. 1)
4. Pop out the cover caps on the left side of cabinet and use them to
cover the screw holes on the right
hand side.
5. Screw the alternative left top hinge 8, included in the fittings,
on the left hand side of cabinet. (Fig. 3)
6. Relocate the door to the designated position. Then screw the bottom hinge assembly on the left
designated position and tighten it after the door is leveled. (Fig. 1)
7. Remove the handle from the left side of the door and install it on the right side. (See page 9.)
– Model SWC1875B
1. Remove the door shaft assembly 2 by unscrewing the two lock screws 1. Be careful to hold the lower
glass door firmly after removing the screws. (Fig. 1)
2. Gently pull down to remove the lower glass door from the middle hinge and place it on a padded
surface to avoid the risk of damage. (Fig. 2)
3. Remove the middle hinge 6 by unscrewing the three bolts by the provided hex wrench. Be careful to
hold the glass door firmly after removing the screws. Pull down to remove the upper glass door and
place it on a padded surface to prevent scratching it. Then remove the right top hinge 7. (Fig. 2 & 3)
4. Pop out the cover caps on the left side of cabinet and use them to
cover the screw holes on the right
hand side.
