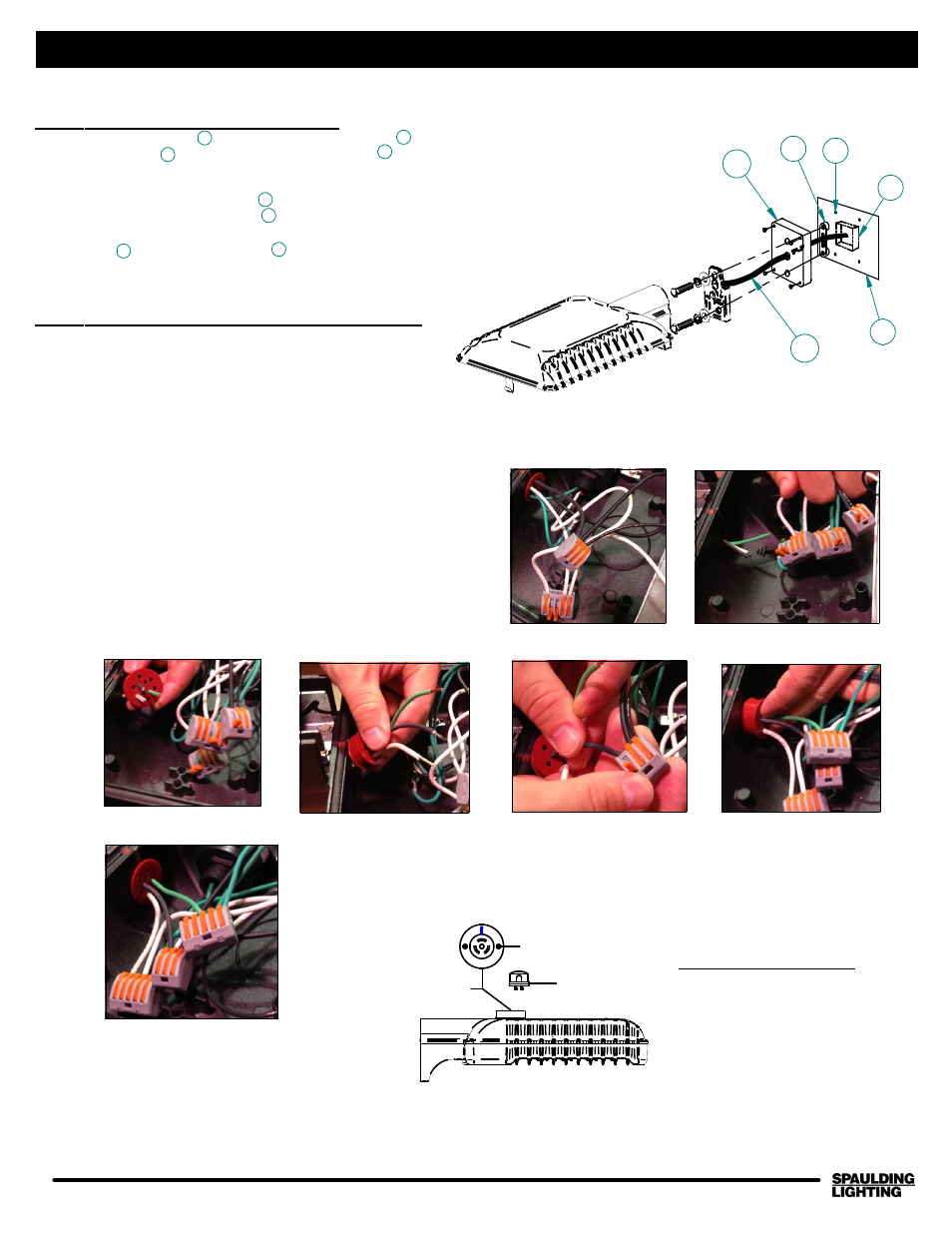

INSTALLATION INSTRUCTIONS - CIMARRON LED SMALL (CL1S) SHEET 4 OF 4
SAVE THESE INSTRUCTIONS
701 Millennium Boulevard Greenville, SC 29607 (864) 678-1000
www.hubbelloutdoor.com
NORTH
PHOTOCONTROL
SCREW
RECEPTACLE
PHOTOCONTROL OPTION
NOTE: THE LIGHT WILL NOT
OPERATE WITHOUT A
PHOTOCONTROL SWITCH OF A
SHORTING CAP IN PLACE.
DO NOT LEAVE RECEPTACLE
OPEN TO THE ELEMENTS.
12
15
18
16
14
FIGURE 8
17
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
NOTES:
For replacement LED Assemblies and Drivers please contact Hubbell Lighting for any replacement parts.
Contact your local distributor or agent to confirm parts availability prior to ordering replacement parts.
14
15
16
17
18
12
15
15
6.) Mounting Wall Bracket (See Fig. 8)
Using template provided , locate holes in Wall Bracket
around junction box on the wall. Mark hole locations.
Drill wall for the hardware (supplied by others) appropriate for the wall
material type.
Connect extra 16 AWG wire leads (provided) inside the junction box
and pull wires through Wall Bracket.
Use 1/4 diameter bolts (supplied by others) and attach
Wall Bracket to Wall with Nut Plate inside
.
Apply caulking sealant (supplied by others) around the top
and two sides of the Wall Bracket where it meets the wall.
7.) Mounting Fixture to Wall Bracket (See Fig. 8)
NOTE: For this application the wire connection will be made
inside the fixture using the 16 AWG leads (provided).
Follow the steps illustrated below.
Remove existing leads and red grommet pulling them inside the
housing (Fig. 9).
Remove existing leads from grommet keeping the red grommet.
Pull 16 AWG wire leads into fixture (Fig. 10).
Simular to the pole mount option, go back and follow steps 2 and 3
in order to install the mount plate and housing.
Thread 16 AWG leads through grommet (Fig. 11).
Strip wires (Fig. 12)
Connect 16 AWG leads to Wago connectors (Fig. 13).
Reinstall the red grommet back into wire entry hole (Fig. 14).
NOTE: Make sure grommet is fully installed to prevent from voiding
the factory warranty (Fig. 15).
Follow same instructions as Steps 1, 2, 3 and 5 to finish installing
the fixture
.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
