Spaulding Lighting Cimarron CL1 Mast Arm User Manual
Spaulding Lighting Lighting

FIXTURE
ARM
FLAT WASHER
1/2" HEX BOLT
LOCKWASHER
AFTER LEVELING FIXTURE THAT
IS ATTACHED TO MAST ARM PIPE,
USE HOLE IN MAST ARM FITTER TO
FIELD DRILL HOLE THROUGH PIPE.
OR MAINTENANCE
WARNING:
DISCONNECT POWER BEFORE INSTALLATION
CIMARRON LED
FIXTURE
SCREW
SAVE THESE INSTRUCTIONS
CIMARRON CL1
MAF
INSTALLATION INSTRUCTIONS

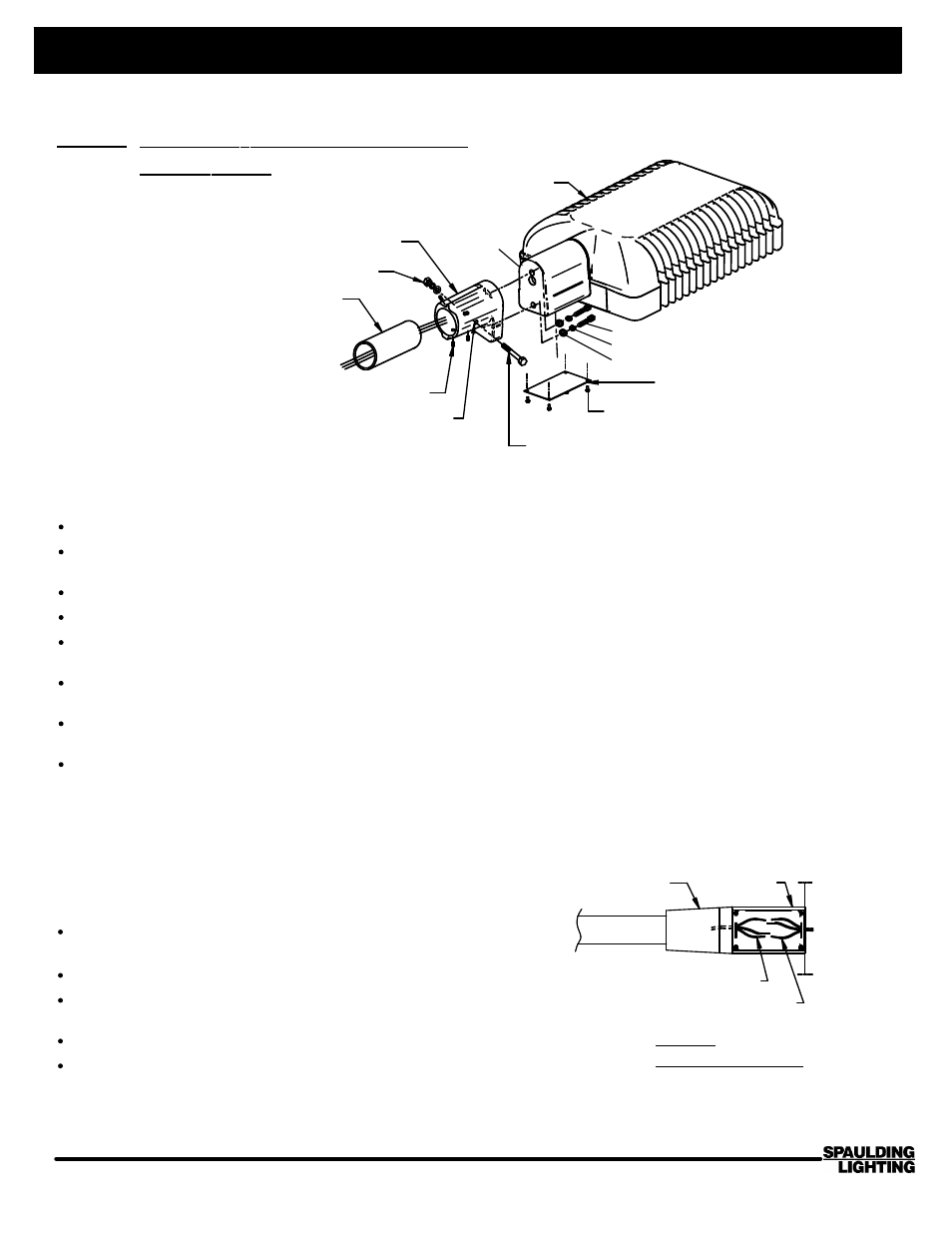

1. MOUNTING MAST ARM FITTER TO FIXTURE ARM AND TO MAST ARM PIPE
Remove Arm Cover by removing the (4) Screws.
Attach Fixture to Mast Arm Fitter with (2) ½” Hex Bolts, Lockwashers and Flatwashers. Torque bolts to
approx. 42 Ft-Lbs.
Engage (4) 3/8-16 X ¾” Set-screws to the cast Mast Arm Fitter.
Slip Arm Fitter onto Mast Arm and adjust Fixture orientation while tightening the (4) Set-screws.
After Leveling the Fixture attached to the Mast Arm, use holes on each side of Mast Arm Fitter to Field Drill
13/32” dia. hole through the Mast Pipe Arm.
Remove Arm Fitter and Fixture from Mast Arm Pipe and Pull the supply wires from Mast Arm Pipe
through Mast Arm Fitter and into the Fixture Arm.
Slip Mast Arm Fitter with Fixture back onto the Mast Arm Pipe, Install the 4” long Bolt and tighten the
(4) Set-screws to approx 18 Ft-Lbs.
Secure 4” Bolt with Flatwasher, Lockwasher, and Nut (Hardware Included). Torque the Bolt and Nut to
approx. 20 Ft-Lbs.
WARNING: FAILURE TO INSTALL THE LONG BOLT COULD POSSIBLY ALLOW THE FIXTURE TO
ROTATE OR DISENGAGE FROM THE PIPE ARM.
ARM COVER
MAST ARM FITTER
MAST ARM PIPE
FLATWASHER, LOCKWASHER, NUT
3/8" SET-SCREWS
4" LONG BOLT
2.
WIRING (See Fig.
2)
POWER MUST BE OFF.
(WIRING MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN)
Wire service leads to fixture power leads according to local and National Electric Codes.
Luminaire is equipped with universal voltage drivers capable of 120V-277V input.
An optional 347/480 V input transformer is available.
Wire connections to be made inside Arm with Fixture Wires and Supply Wires (by others).
For direct wire connections, connect ground wire to green wire, connect black to black and
white to neutral then push connections back inside Arm and attach Arm Cover.
See Installation Instructions for Cimarron LED, P/N 93034033.
FIGURE 2
ARM
COVER
REMOVED
ARM
FIXTURE WIRES
SUPPLY WIRES
MAST ARM FITTER
701 Millennium Boulevard Greenville, SC 29607 (864) 678-1000
www.spaulding-ltg.com
93037602 REV B
