INSTALLATION INSTRUCTIONS - CIMARRON LED SMALL (CL1S) SHEET 2 OF 4
SAVE THESE INSTRUCTIONS
701 Millennium Boulevard Greenville, SC 29607 (864) 678-1000
www.hubbelloutdoor.com
NOTES:
For replacement LED Assemblies and Drivers please contact Hubbell Lighting for any replacement
parts.
Contact your local distributor or agent to confirm parts availability prior to ordering replacement parts.

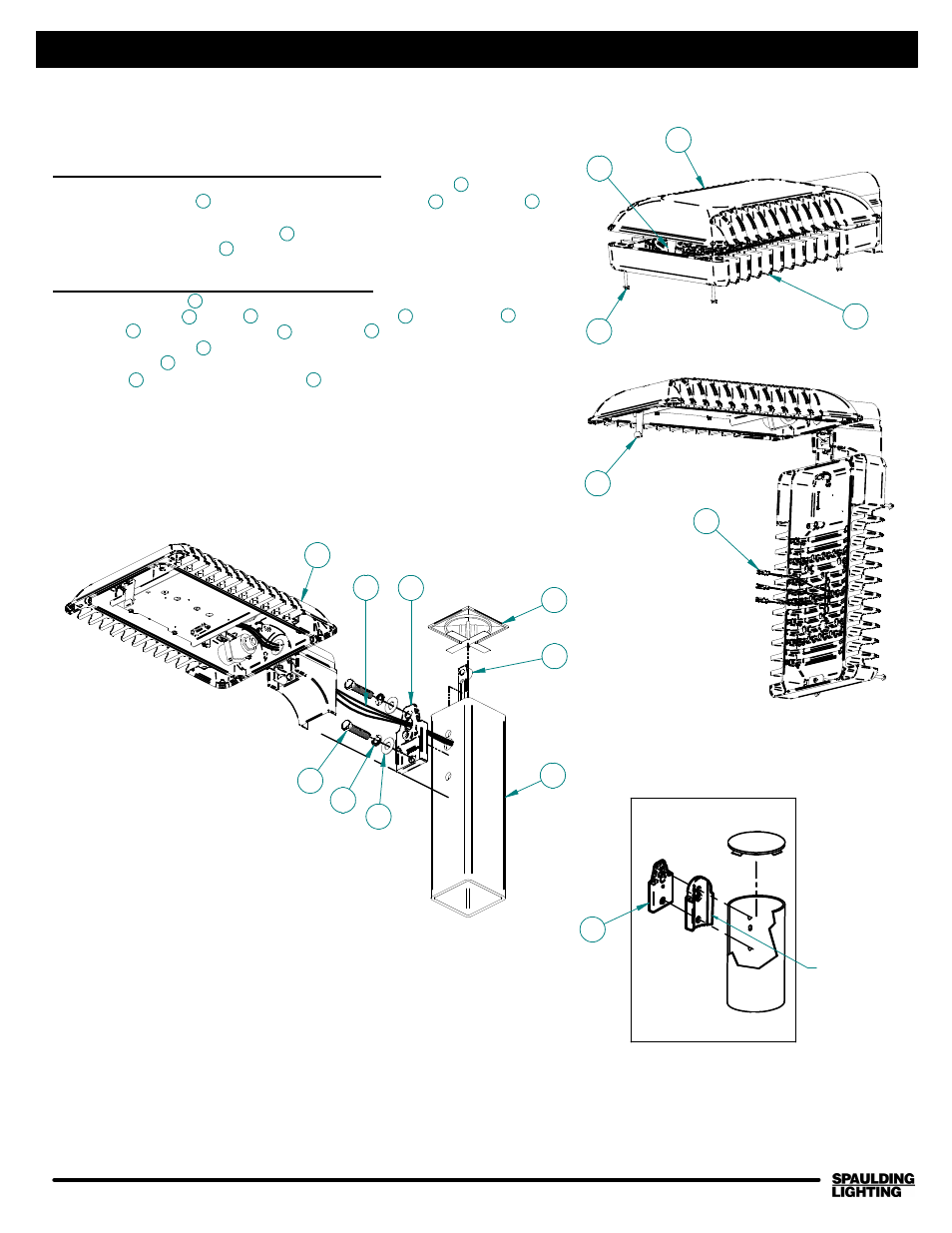

FIGURE 1
FIGURE 2
FIGURE 3
1
2
12
11
9
8
7
6
10
5
3
POLE
POLE COVER
ROUND
ROUND POLE ADAPTOR
INSTALLED BETWEEN POLE
AND MOUNT PLATE,
WITH NO ADDITIONAL
HARDWARE
4
Round Pole Illustration
4
13
2
7
8
7
13
9
8
12
11
10
9
8
7
3
6
5
4
3
2
1
1.) Mounting Preparation (See Fig. 1 & 2)
Remove door by loosening (4) 10-24 captive mounting screws.
Disengage safety tab at front - between opening of door and housing
inside unit.
Disconnect LED wire connector(s).
Set door assembly aside.
2.) Mounting Fixture to Pole (See Fig. 3)
Remove pole cover.
Attach mount plate to pole with (2) 1/2" hex bolts , lockwashers and
flatwashers by installing nut plate inside pole.
Torque 1/2" hex bolts to approx. 45 ft-lbs.
Insert the wires from the fixture through the center hole of the
mount plate pulling them into the pole.
•
•
•
•
•
•
•
•
