G. Loading and Removing Rotators

All rotators are loaded and removed using the same two-step process.
When loading, first insert the end of the shaft that ends in a ball joint
with alignment pin into the slotted bearing on the

right

wall of the

chamber. The left end of the shaft is then placed into the bearing on the
left side of the chamber. Reverse this procedure when removing the
rotator.

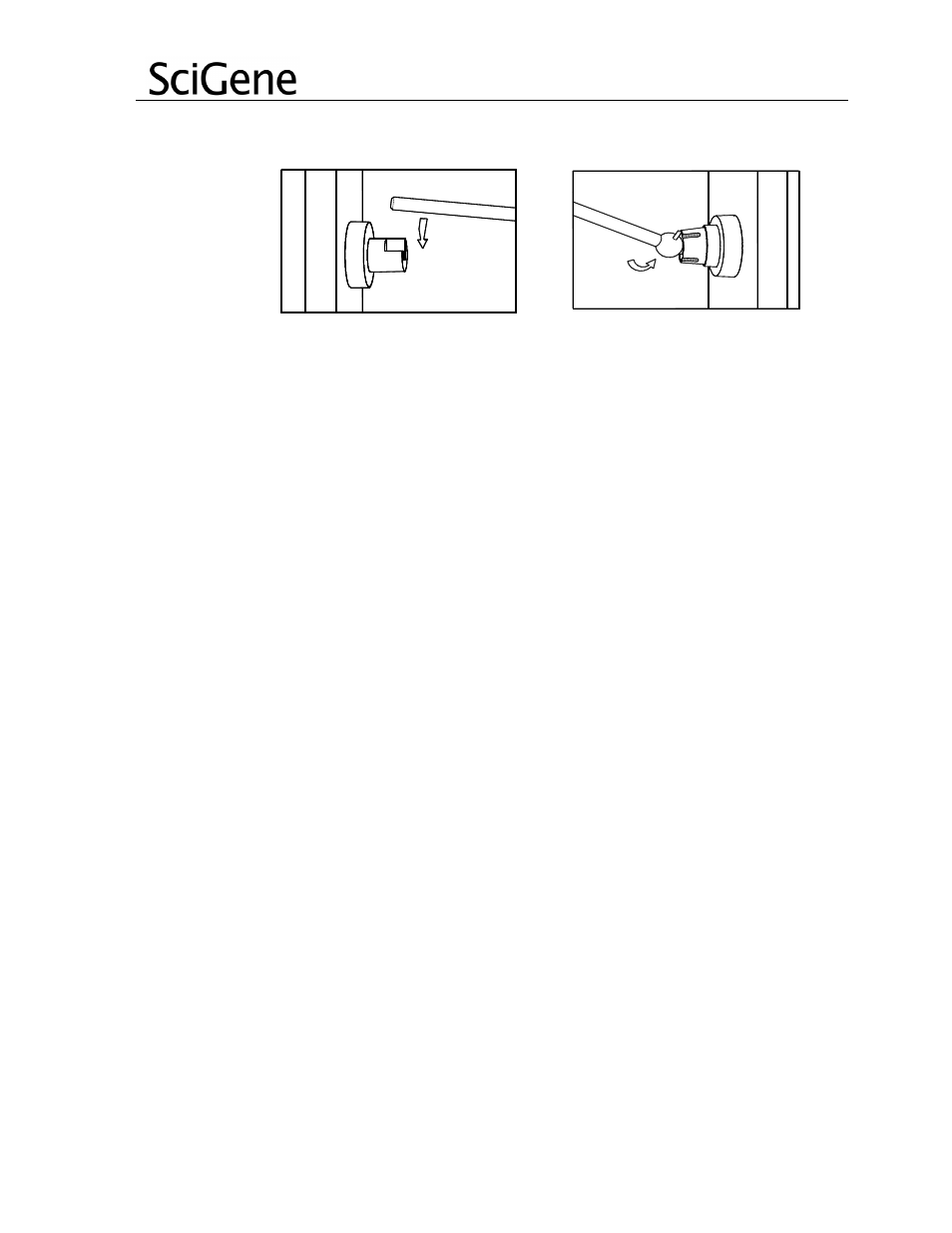

Insert shaft ball with alignment

pin into right bearing

Place end of shaft on left bearing
