GP-MCH9-BX-10C

SCH-90 / IC-90 Manual

R.D: Aug 2006

RL:10C

KH

Page 9

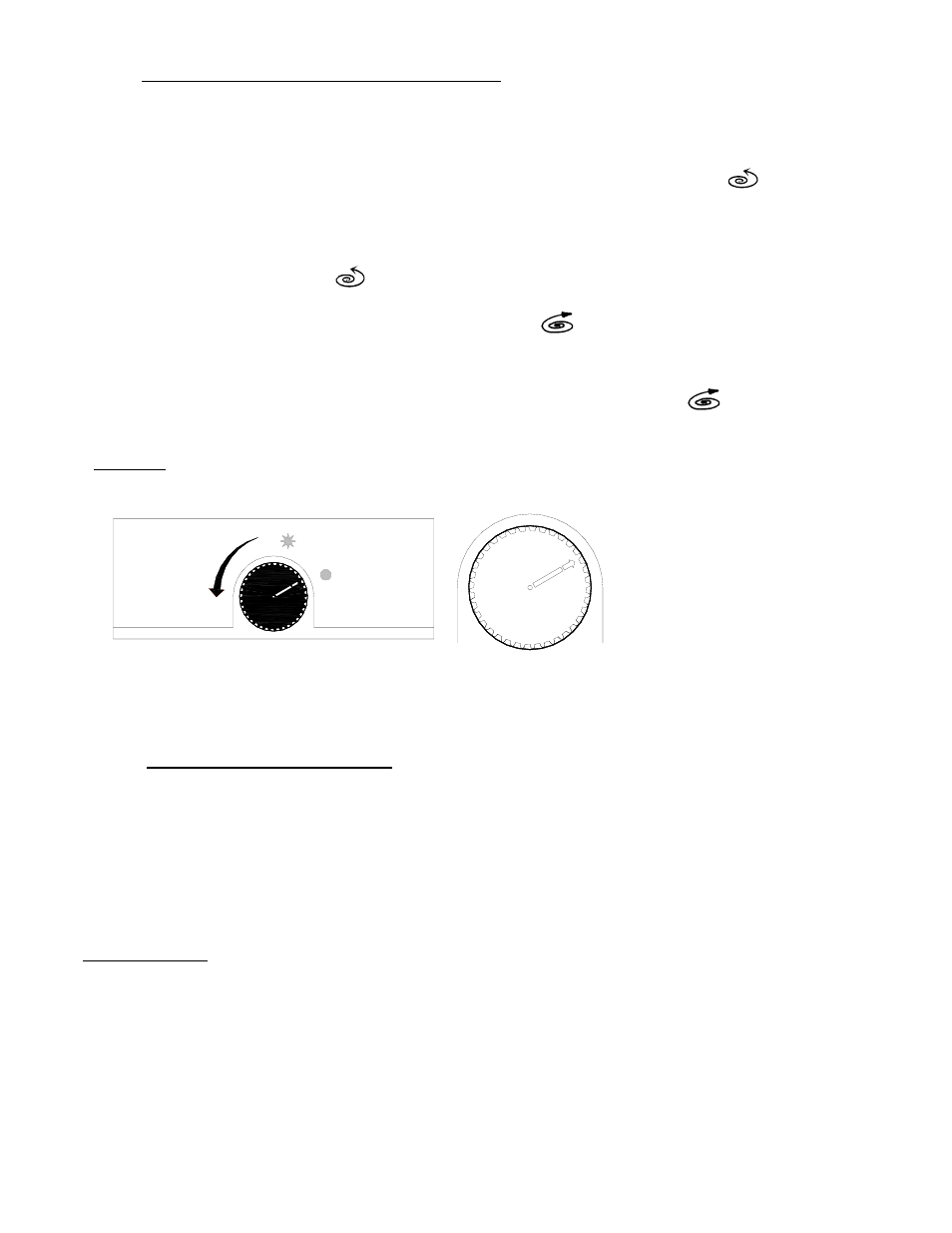

1.6 LIGHTING / SHUTDOWN INSTRUCTIONS

FIGURE 3

PILOT / VEILLEUSE

OFF / ARRÊT

PLUS CHAUD

/ WARMER

1.7 THERMOSTATIC CONTROL


Multifunctional gas control with snap acting thermostat, thermo-electric flame-failure safety device, and
a manual ON/OFF function. Thermostat range is 50ºF - 100ºF.

Thermostatic Control Knob

note: this is an Instructional Sticker Only

MAINTENANCE


See page 9.

1. Pre-purge gas line prior to lighting.

2. Place knob in the OFF position, rotate knob 1 notch, or “click” counter-clockwise. Depress and

hold the control knob. Light pilot through porthole. Release knob after sixty seconds. Pilot burns,

main burner is off.

3. Turn knob counter-clockwise to ignite main burner. Adjust knob to desired heat setting.

4. If burner does not light, turn knob completely clockwise . Leave in off position without pressing

knob. Wait five minutes and repeat step two.

5. For complete shutdown of burner and pilot, turn knob completely clockwise, then depress knob.
