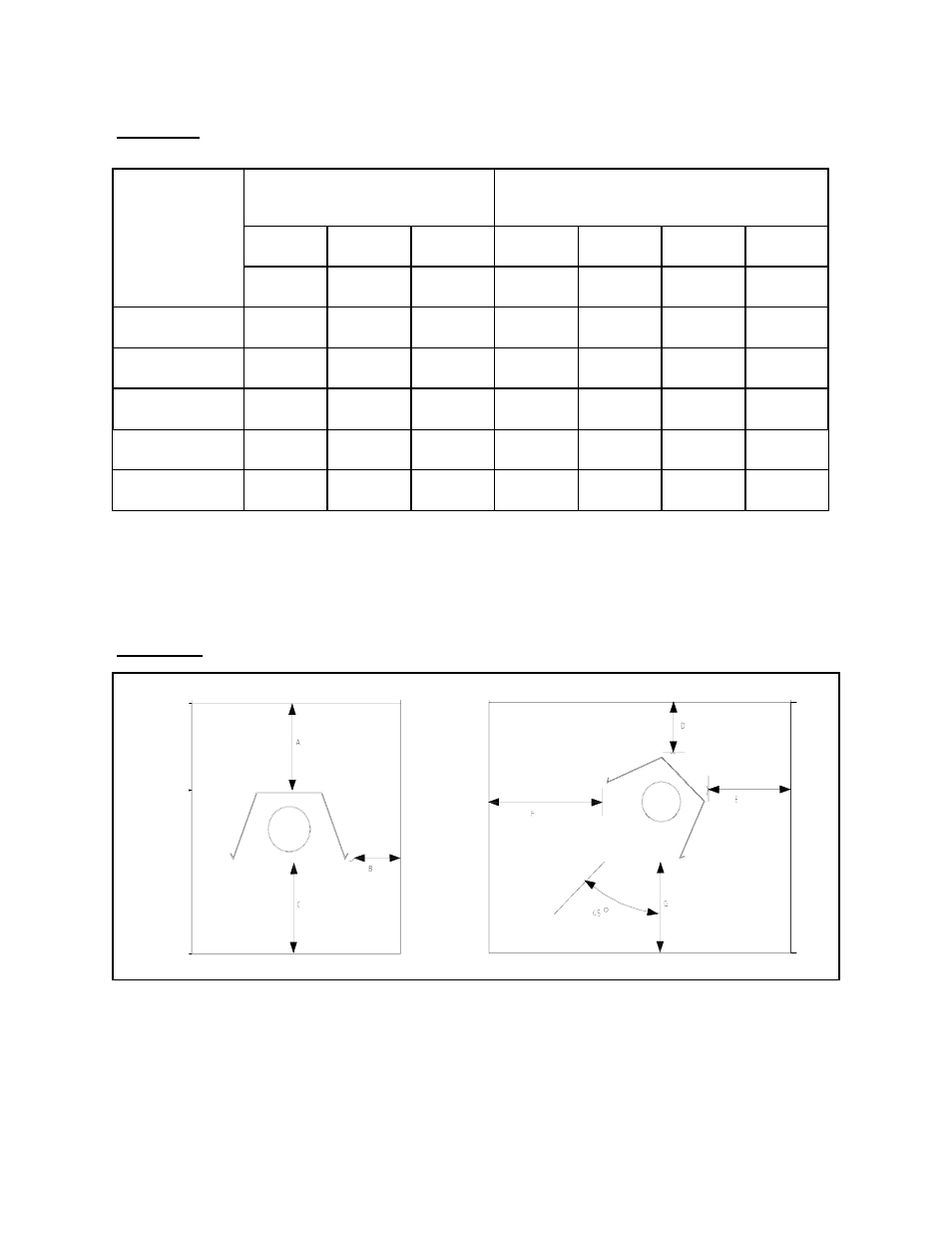

TABLE 3 MINIMUM CLEARANCES TO COMBUSTIBLES

MODEL

SUSPENDED HORIZONTALLY

SUSPENDED AT AN ANGLE

UP TO 45 DEGREES

TOP

SIDE

BELOW

TOP

REAR

FRONT

BELOW

A

B

C

D

E

F

G

ATH / IA 130

4"

10.5"

60"

5”

1"

35"

56"

ATH / IA 110

3.75"

9.5"

54"

4.5"

1"

25.5"

54"

ATH / IA 80

2.5"

6"

36"

3.5"

1"

22.5"

38"

ATH / IA 60

2.5"

5.5"

34"

3"

1"

17"

34"

ATH / IA 45

4.5”

8.5”

32”

5”

1”

29”

32”

FIGURE 1 MINIMUM CLEARANCES TO COMBUSTIBLES
