Schwank STW-JZ1 - Manual (Page 56)

56
STW-JZ / IW I&O Manual
IM101229
RL: 12A- BA
RD: DEC 2010
STW-JZ (-JZ2) / IW (-2)

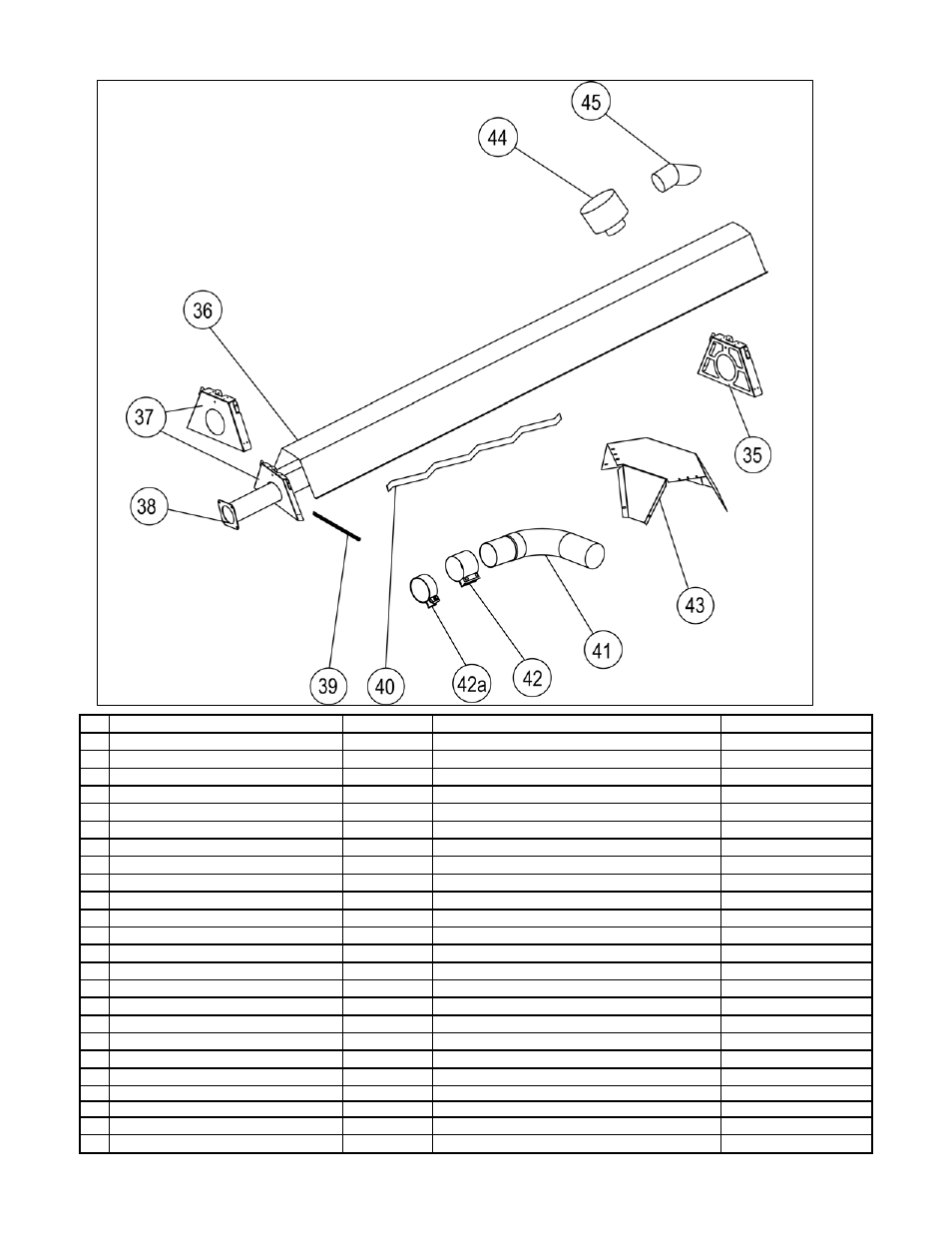

TUBE SYSTEM PARTS
# PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT
35 WEBBED HANGER: Aluminized Steel JS-0505-JZ Webbed Hanger - Aluminized Steel
Stainless Steel JS-0505-SZ Webbed Hanger - Stainless Steel STW-JZ-2 & IW-2
36 REFLECTOR: Aluminized Steel JS-0502-JZ Reflector 24" x 116" - Aluminized Steel
Stainless Steel JS-0502-ST-S Reflector 24" x 116" - Stainless Steel STW-JZ-2 & IW-2
37 PLATE HANGER: Aluminized Steel JS-0506-JZ Aluminized end plate hanger
Stainless Steel JS-0506-SZ Stainless Steel end plate hanger STW-JZ-2 & IW-2
38 SYSTEM TUBES: Aluminized Steel JA-0501-SW-P Aluminized tube,flanged,swaged, no ports 60-155
JA-0499-SW-P Alumatherm tube,flanged,swaged, no ports 175-200
JS-0501-SK Aluminized tube, 10' slotted + Accuseal clamp 175-200
JS-0511-SW-P Painted aluminized tube swaged
Stainless Steel JA-0500-SW-P Stainless Steel tube,flanged,swaged, no ports STW-JZ-2 & IW-2: 60-200
JS-0500-SW Stainless Steel tube swaged
39 REFLECTOR BRACE: Aluminized Steel JS-0506-RB Reflector brace - Aluminized Steel 3 per reflector
Stainless Steel JS-0506-SB Reflector brace - Stainless Steel 3 per reflector
40 TURBULATOR (see Table in STW-JZ JS-0533-SH Short turbulator 4' 60-130
I&O Manual) JS-0533-LG Turbulator 10' 60-200
41 90° ELBOW 4": Aluminized Steel JA-0508-SW 90 degree elbow - Aluminized Steel
Stainless Steel JA-0508-SS 91 degree elbow - Stainless Steel STW-JZ-2 & IW-2
42 COUPLER JA-0516-SW 4" swaged tube coupler torctite
42a ACCUSEAL CLAMP 4" JA-0516-SA 4" Clamp for slotted Aluminized Tube 175-200
43 90° ELBOW REFLECTOR: Alum'd Steel JS-0503-US Reflector Cap for 90° Elbow - Aluminized Steel
Stainless Steel JS-0503-SZ Reflector Cap for 90° Elbow - Stainless Steel STW-JZ-2 & IW-2
44 AIR DUCT RAIN CAP JA-0530-XX 4" roof vent cap
45 HORIZONTAL VENT TERMINAL JA-0528-XX 4" horizontal wall vent terminal
