31. REPLACEMENT PARTS

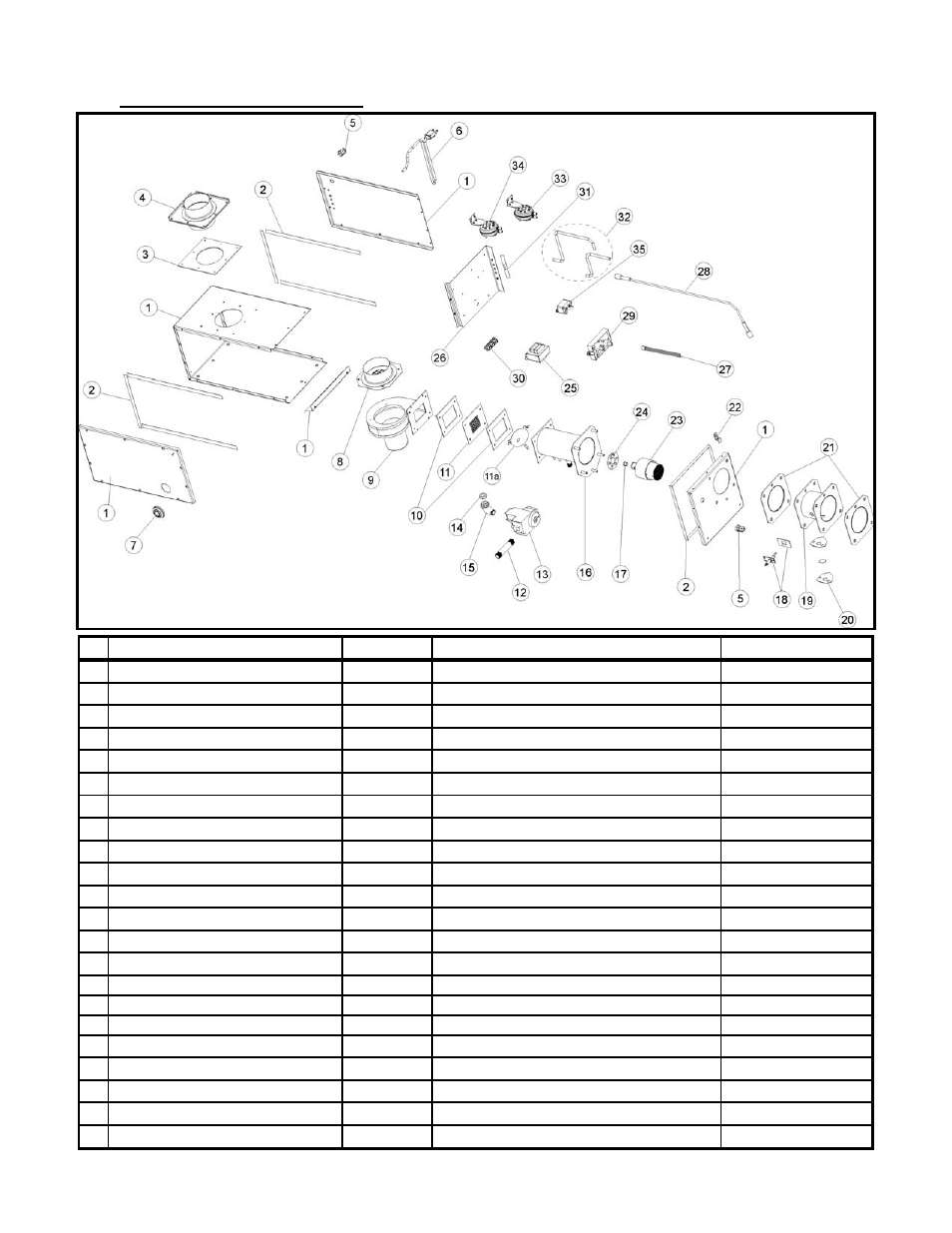

STW-JZ (-JZ2) / IW (-2) Burner
Model STW-JZ2 (stainless steel
tube system) uses the same
burner as STW-JZ
# PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT
1 BURNER HOUSING JS-0582-WP Burner housing harsh environment
2 BURNER HOUSING GASKET SET JS-0591-WP Housing gasket set
3 AIR INTAKE GASKET JS-0601-WP Air intake gasket each
4 COMBUSTION AIR INLET JS-0583-15 Combustion air inlet
5 SEALTIGHT CONNECTOR JP-2036-XX Connector liquid tight
6 ELECTRICAL CORD JB-0567-XX Electrical cord
7 WATERPROOF GROMMET JP-2101-XX Water proof butt connectors
8 COMBUSTION AIR INLET FLANGE JS-0594-ST 60 blower rest. ring c/w flange 60,000
JS-0595-SP 80 blower rest. ring c/w flange 80,000
JS-0595-AA 110-200 blower rest. ring c/w flange 110 - 200,000
9 BLOWER JS-0579-AA Blower assembly
10 BLOWER GASKET JS-0578-XX Outlet blower gasket each
11 EQUALIZER PLATE JS-0593-XL Outlet equalizer plate 45 LP - 29 Holes - Series X1 STW-JZ-45-L-X1; 45 LP
JS-0593-NG Outlet equalizer plate 45 NG - 25 Holes STW-JZ-45-N-X1; 45 NG
JS-0593-XX Outlet equalizer plate 60 to 155 LP 60 - 155 LP
JS-0593-XZ Outlet equalizer plate 175 LP 175 LP
JS-0593-XX Outlet equalizer plate 60 to 200 NG 60 - 200
11A AIR RESTRICTOR JS-0592-AR Burner air restrictor (45-X1) STW-JZ-45-X1; 45000
12 4" NIPPLE JS-0590-GA 4" nipple
13 GAS VALVE JL-0701-AA Comb. gas valve 3.5" W.C 24VAC VR8 NG Nat. Gas
JL-0703-AA Comb. gas valve 10" W.C 24VAC VR8 LP Propane
14 MANIFOLD BUSHING JS-0589-XX Manifold bushing
