NOTE: Except for the vent end plate hanger, all hangers must be installed with the cavity side

facing the burner end of the system - the cavity side of the vent end hanger must face
the vent

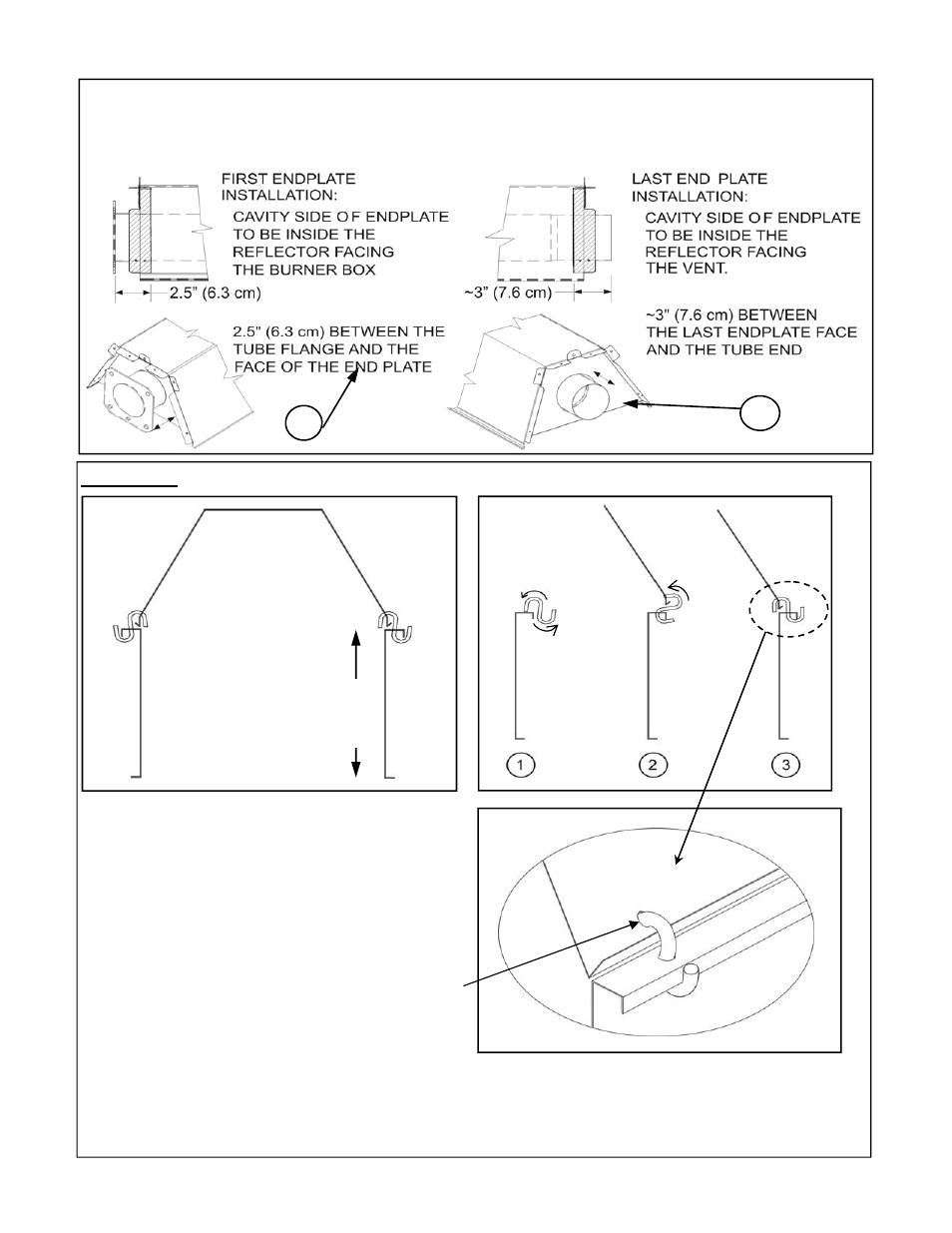

FIGURE 16 REFLECTOR EXTENSIONS (OPTIONAL - IF REQUIRED )

1. Reflector extensions may be installed on

one side or both sides of the reflector

2. Reflector extensions are 116” (295 cm)

long

3. Holes (3) for “S” hooks are located

2.25” (5.7 cm) from each end and one at
the center of the reflector extension

4. Drill 1/4” (7 mm) holes in the reflector

3/4” (2 cm) up from the bottom edge of
the reflector to align with the 3 holes in
the top of the reflector extension

Reflector extensions
may be installed one
or both sides

Insert ‘S’
hook from
top and
rotate

10”

25 cm

5. Insert “S” hook down through hole in the top of the reflector extension

6. Rotate “S” hook approx. 90°, and insert into hole in reflector

7. Settle reflector extension into place
