3. INSTALLATION PROCEDURES
A. Properly install gas line as outlined in section 2.7, page 3.
B. Properly connect the ignition control assembly to the heater.
C. Mount heaters by using non-combustible mounting hardware as illustrated in Diagrams 2 on page 8.
Observe the minimum clearances as outlined in sections 9.3 to 9.6.

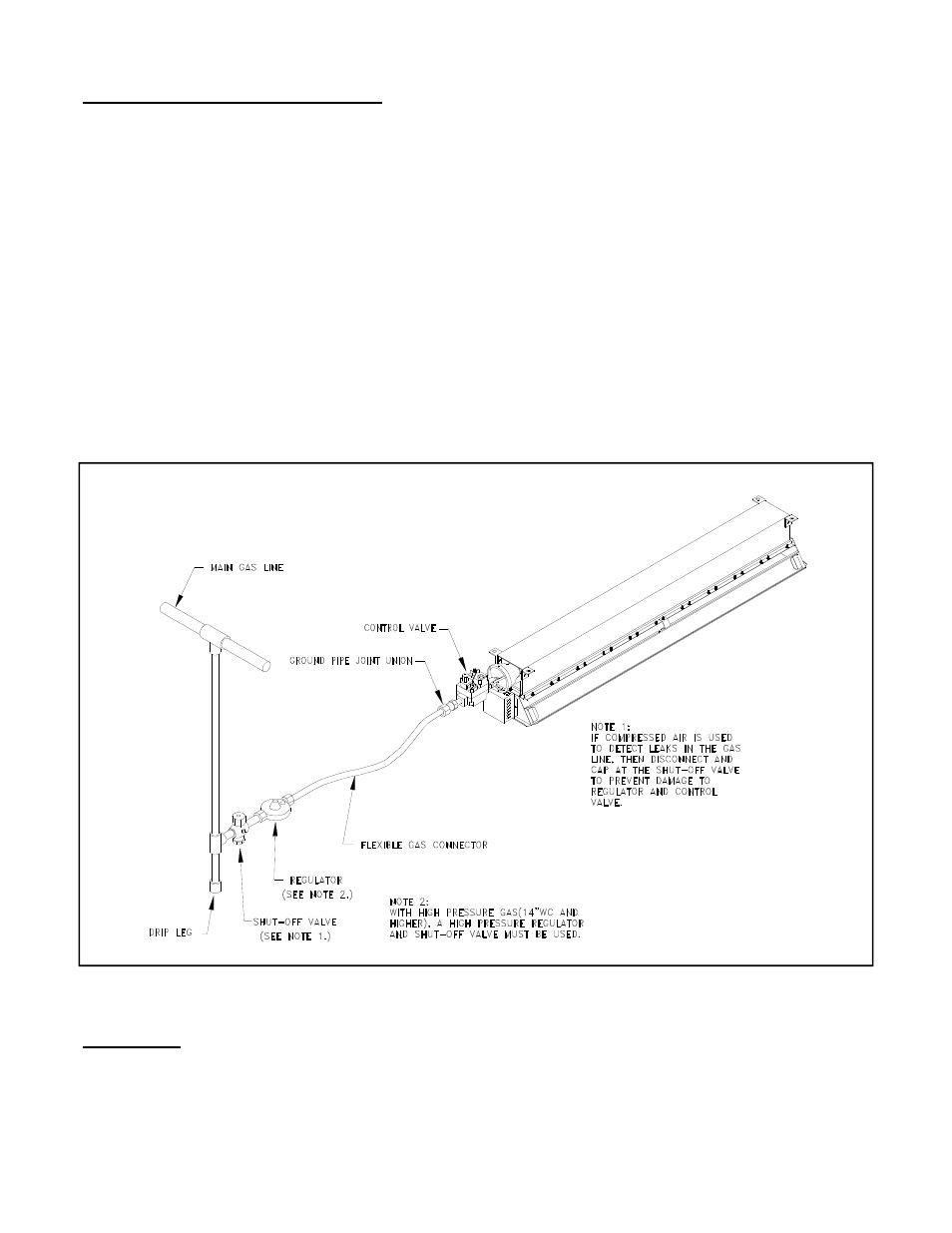

D. Connect heater to the main gas line. It is recommended to use a 1/2" flexible connector to absorb gas
line expansion and any building vibration (available as option)
E. Mount thermostat at desired location, away from direct infra-red rays of heater and not on cold wall
without sufficient insulation backing. Install exhaust fan, air switch and transformer, as per section
2.6, page 3.
F. Check gas line for leakage by using soap test or gas meter test. Ensure gas pressure meets the re-
quirements outlined in section 2.8, page 3.
When testing the main gas line pressure, ensure the gas shut-off valve is
“OFF”, otherwise damage to the combination gas valve will result.
WARNING:
