29. REPLACEMENT PARTS

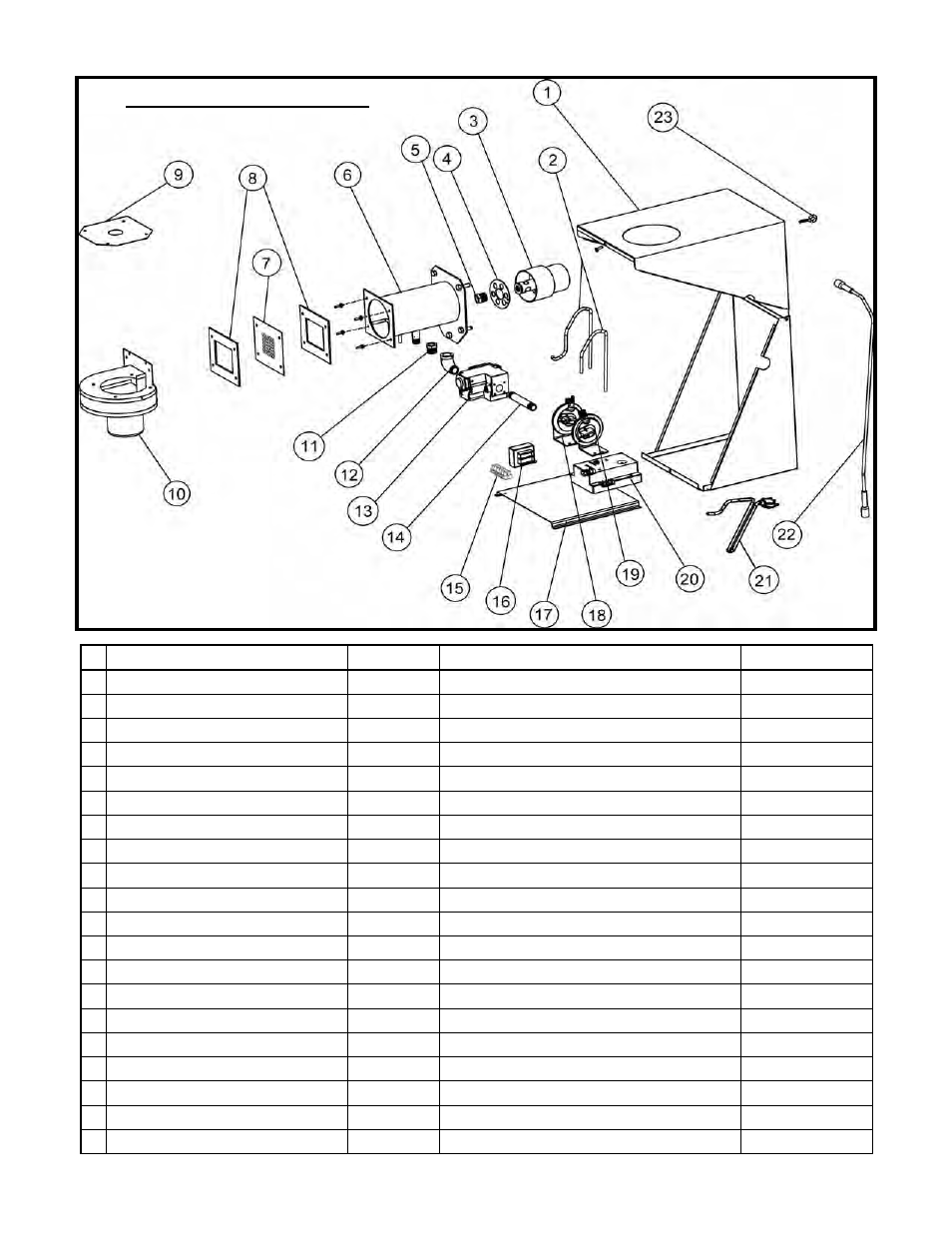

SET / ITT Burner
# PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT
1 BURNER HOUSING JS-0582-XX Burner housing (painted orange)
2 PRESSURE SWITCH TUBING JS-0572-SE P.V.C. tubing set (2 x 20")
3 BURNER HEAD JS-0510-LP Burner head (45-80) 60-80
JS-0512-XX Burner head (110-200) 110-200
4 AIR RESTRICTOR RING JS-0596-XX Burner head air rest. ring .375 60LP,60-200NG
JS-0597-XX Burner head air rest. ring .500 80-200LP
5 MAIN BURNER ORIFICE JS-0736-DM Gas orifice low intensity HTR 36 DMS 80 LP
JS-0718-DM Gas orifice low intensity HTR 18 DMS 80 NG
JS-0731-DM Gas orifice low intensity HTR 31 DMS 110 LP
JS-0752-MM Gas orifice low intensity HTR 5.2 mm 110 NG
JS-0729-DM Gas orifice low intensity HTR 29 DMS 130 LP
JS-0758-MM Gas orifice low intensity HTR 5.8 mm 130 NG
JS-0714-IN Gas orifice low intensity HTR 9/64 inch 155 LP
JS-0725-IN Gas orifice low intensity HTR 1/4 inch 155 NG
JS-0767-MM Gas orifice low intensity HTR 6.7 mm 175 NG
JS-0730-IN Gas orifice low intensity HTR 19/64 inch 200 NG
6 OUTER BURNER JS-0504-XX Outer burner assembly - Silver NG
JS-0504-BK Outer burner assembly - Black LP
7 EQUALIZER PLATE JS-0593-XX Outlet equalizer plate (60 to 200)
8 BLOWER GASKET JS-0578-XX Outlet blower gasket each
