52
P40R-F I&O Manual
IM120801
RD: MAY 2014
RL: 3A
Contact your local Schwank or InfraSave distributor for replacement parts.
30 TUBE FASTENING BRACKET JS-0502-UV Positions tube in hanger / reflector system
31 PREFORMED U-TUBE JA-0501-UT Preformed U-Tube: 17 ft tube length
32 P40-R HANGER JS-0506-UH P40-R System Hanger
33 P40-R REFLECTOR JS-0502-UR Reflector for P40-R
34 REFLECTOR END PLATE JS-0502-UT Reflector End Plate
35 P40-R TURBULATOR 36" JS-0533-US 36" Turbulator In Burner Side Tube
36 P40-R TURBULATOR 90" JS-0533-UT 90" Turbulator In Vent Side Tube
37 OPTIONAL VENT CAP JA-0528-XX Horizontal side wall 4" vent terminal Optional Item
25 SIGHT GLASS ASSEMBLY JS-0536-XX Sight glass assembly - tube heater
26 IGNITER KIT JA-0571-KT Spark Igniter & Gasket Kit

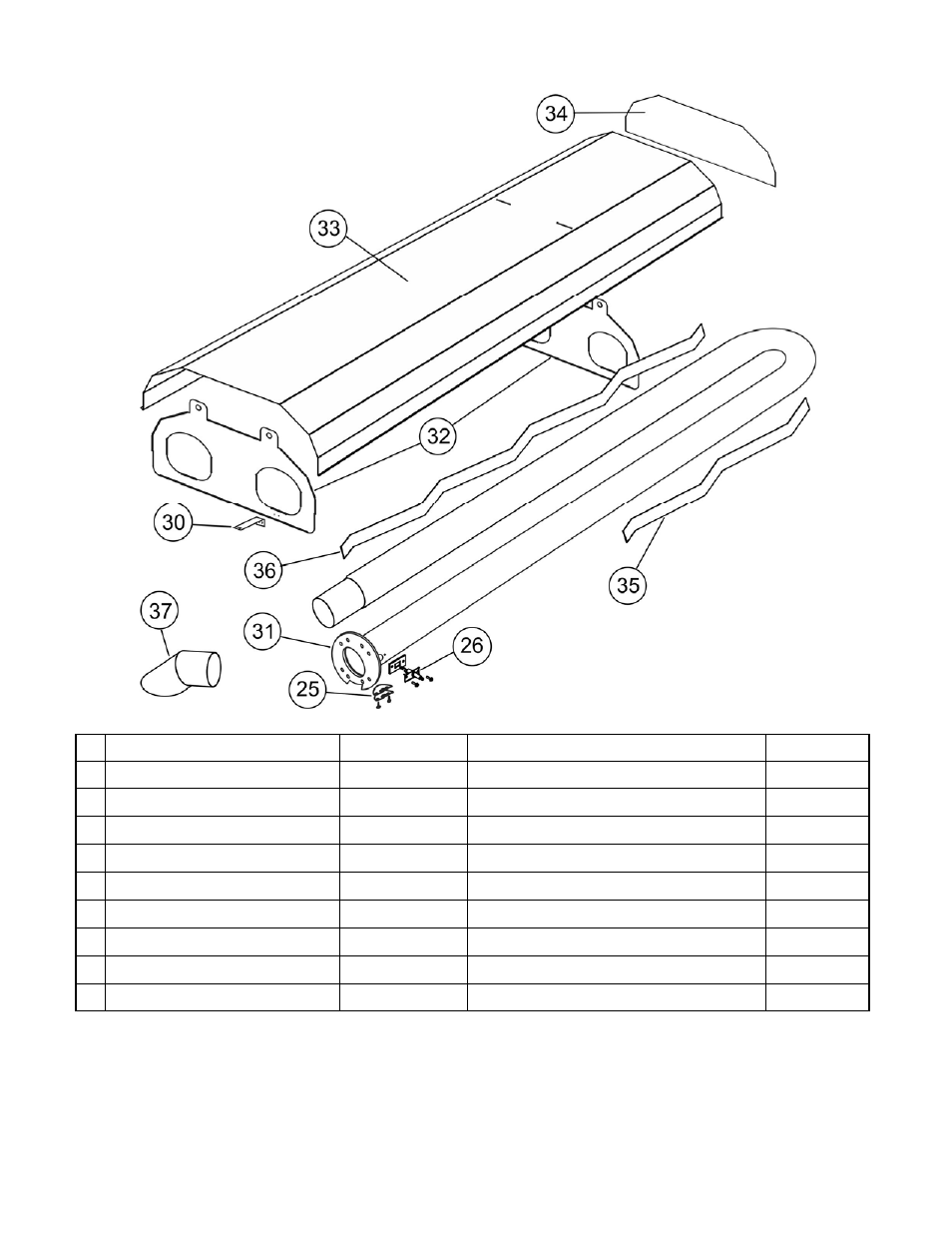

P40-R TUBE / REFLECTOR SYSTEM
