45
P40R-F I&O Manual
IM120801
RD: MAY 2014
RL: 3A
Assembled System:
 Weight: 96 pounds (44 kg)
 Dimensions: 119.5” L x 20” W x 12” H (3035 mm x 508 mm x 305 mm)
Burner:
 Weight: 26 pounds (11.8 kg)
 Dimensions: 16” L x 10.25” W x 10.75” H ( 406 mm x 260 mm x 273 mm)
Tube Reflector System:
 Weight: 60 pounds (27 kg)
 Dimensions: 103.5” L x 16.5” W x 7.5” H (2629 mm x 420 mm x 190 mm)
30. DIMENSIONS AND WEIGHT
Turbulators (factory installed inside
tube):
Burner side tube: 36” (914 mm)
Vent side tube: 90” (2286 mm)

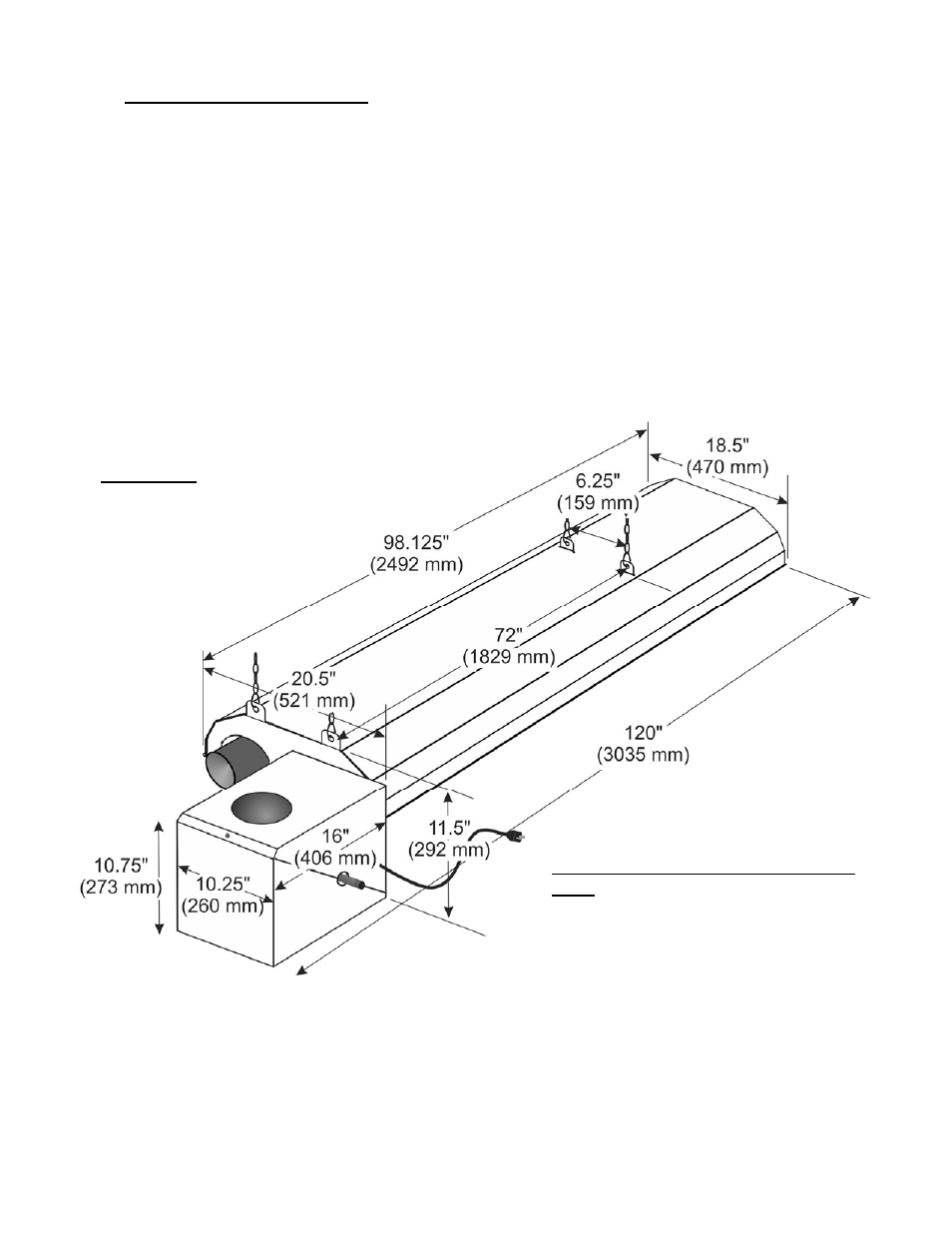

FIGURE 16 P40-R DIMENSIONS
