17
P40R-F I&O Manual
IM120801
RD: MAY 2014
RL: 3A
For 30° angle mount: Install the tube system; Loosen 4 nuts holding burner to tube flange;
rotate burner to horizontal orientation; re-tighten 4 nuts. (see full instructions previous page)
Use all four suspension points plus a chain at the burner eye hook.
Hardware capable of supporting minimum 100 lbs (45 kg) at
each suspension point.
For seismic and high wind restraint see
Sections 10-A & 10-B.

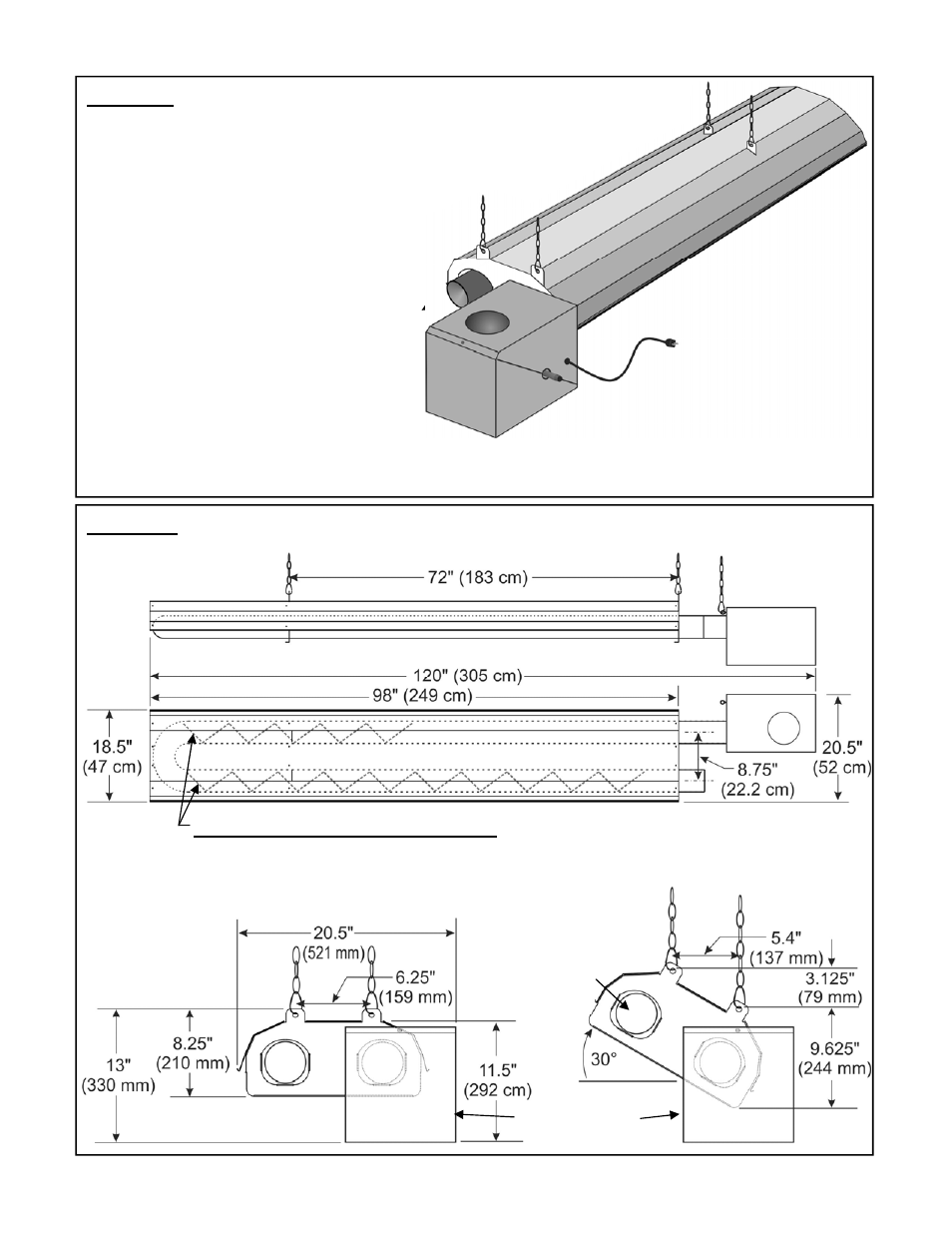

FIGURE 5 TYPICAL SUSPENSION
72
”
(1
83
cm
)
SERVICE ACCESS: ALLOW A MINIMUM OF 6
INCHES (15 cm) FROM THE ACCESS END
OF THE BURNER AND A MINIMUM OF 24
INCHES (60 cm) FROM EITHER SIDE OF THE
BURNER TO A WALL OR ANY OBSTRUC-
TION THAT WOULD RESTRICT OR LIMIT
ACCESS TO THE BURNER (SEE SECTIONS
6 & 7 - PRE-INSTALLATION SURVEY AND
MOUNTING CLEARANCES)
Connect to properly
grounded 120V
power supply
FIGURE 6 HEATER DIMENSIONS & SUSPENSION ANGLE OPTIONS
Burner always
horizontal
Vent side
always upper
Turbulators (factory installed in tube): Burner side tube: 36” (91 cm)
Vent side tube: 90” (229 cm)
